Removal and Installation

Remove the steering wheel. Refer to STEERING WHEEL .

Fig 1: Identifying Steering Wheel Cover
Courtesy of MAZDA MOTORS CORP.
WARNING:
- When carrying a live air bag, make sure the bag and trim cover are pointed away from your body. In the unlikely event of an accidental deployment, the bag will then deploy with minimal chance of injury. Failure to follow these instructions may result in personal injury.
Remove the steering wheel cover.

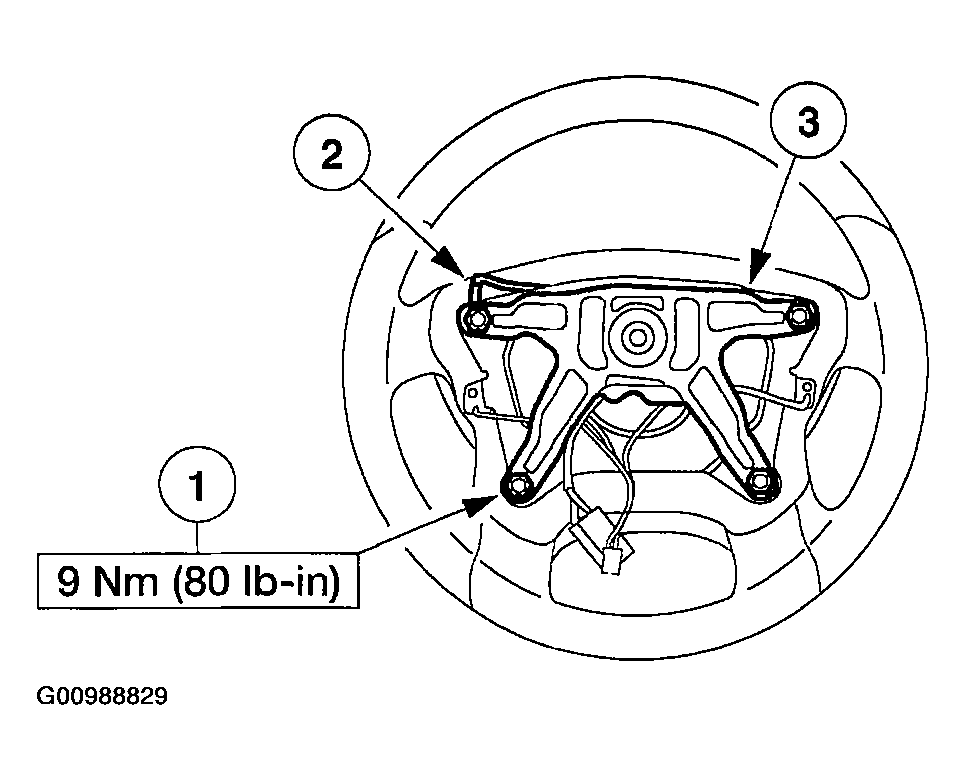

Fig 2: Removing Steering Wheel Frame
Courtesy of MAZDA MOTORS CORP.
Remove the steering wheel frame.
1. Remove the nuts.
2. Disconnect the ground wire.
3. Remove the steering wheel frame.

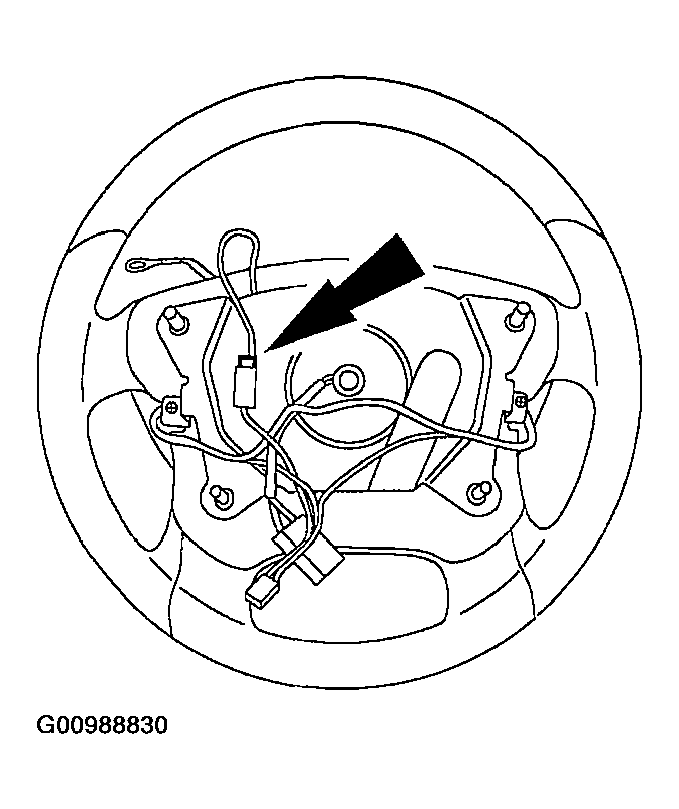

Fig 3: Identifying Cruise Control Switches Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the cruise control switches electrical connector.

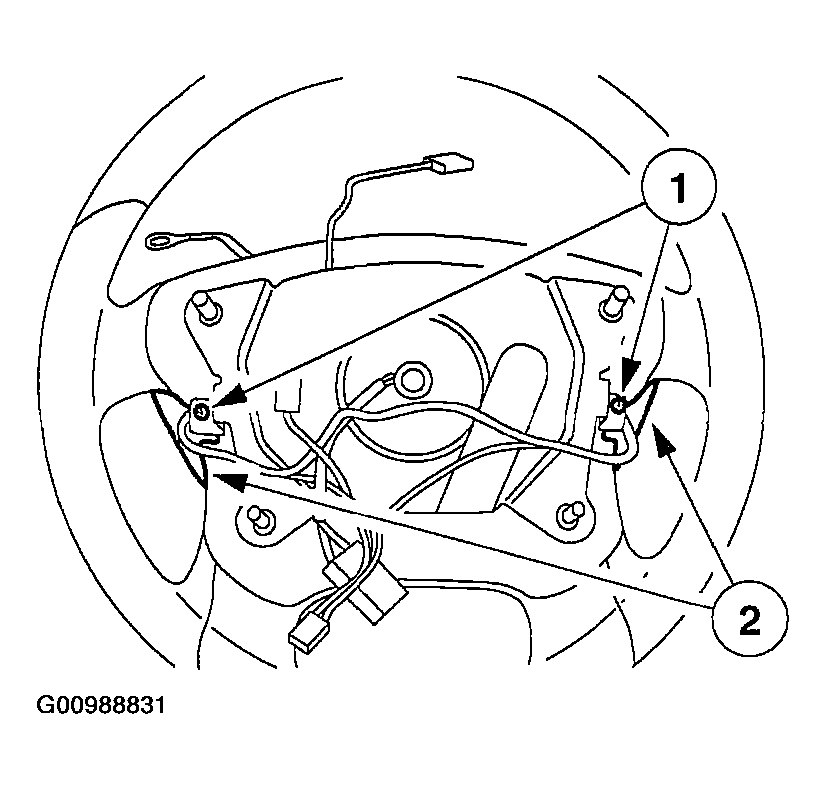

Fig 4: Removing Cruise Control Switches
Courtesy of MAZDA MOTORS CORP.
Remove the cruise control switches.
1. Remove the screws.
2. Remove the cruise control switches.
To install, reverse the removal procedure.
