Symptom Troubleshooting Chart - Power Door Locks/Keyless Entry Remote Transmitter: Notes

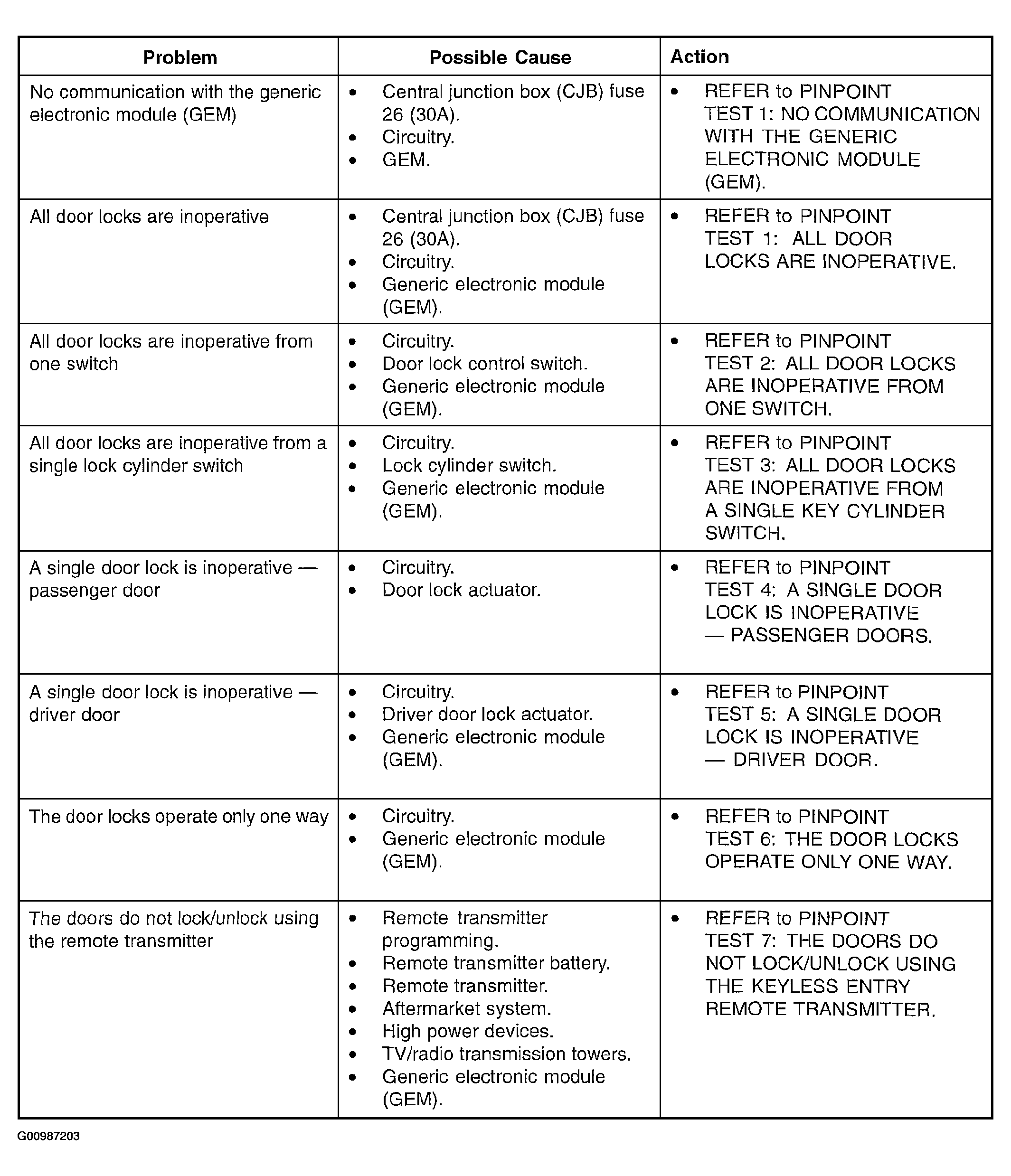

Fig 1: Symptom Troubleshooting Chart - Power Door Locks/Keyless Entry Remote Transmitter (1 Of 2)
G00987203Courtesy of MAZDA MOTORS CORP.

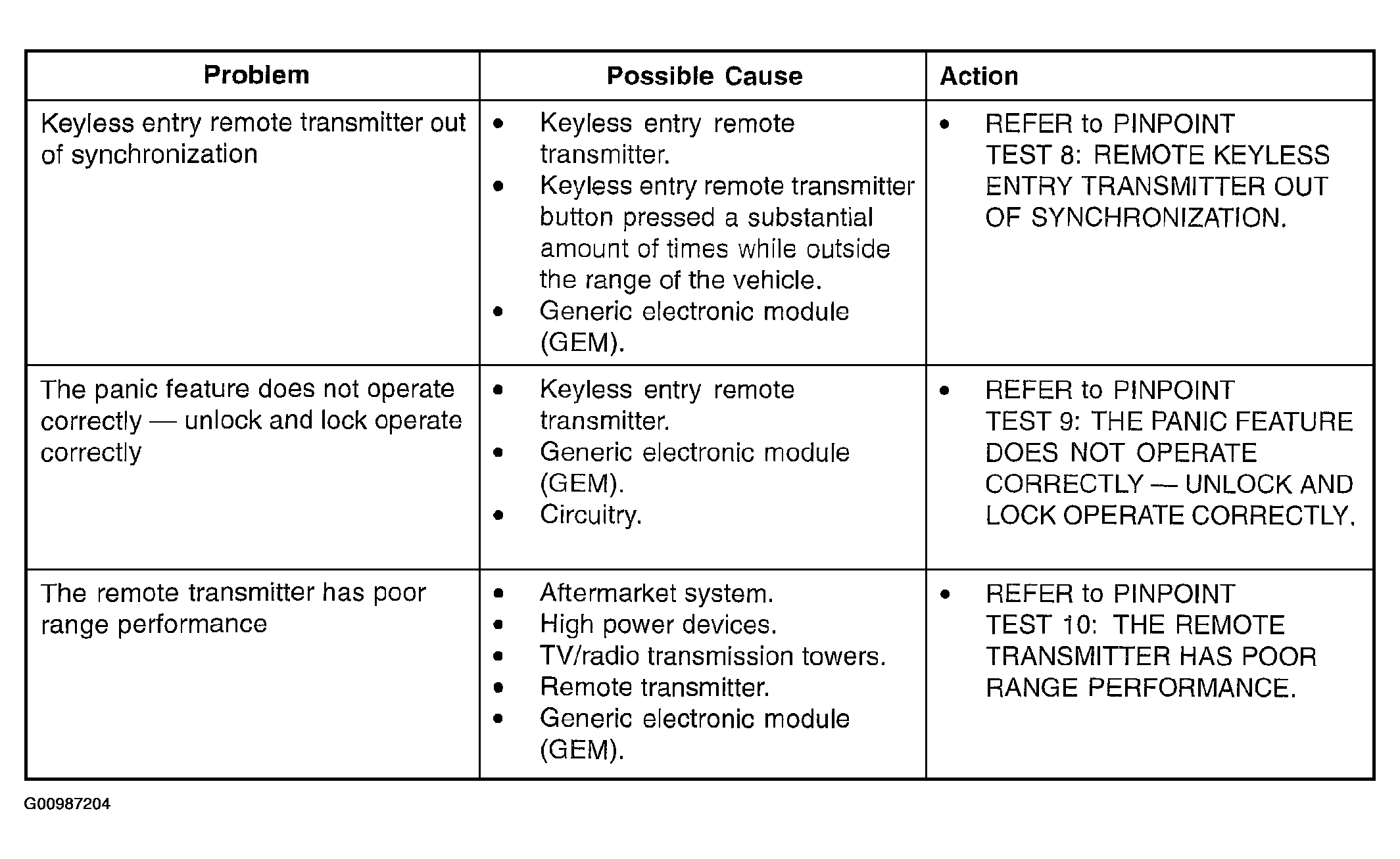

Fig 2: Symptom Troubleshooting Chart - Power Door Locks/Keyless Entry Remote Transmitter (2 Of 2)
G00987204Courtesy of MAZDA MOTORS CORP.
