Home › Mazda › 2004 › Tribute ES, FWD › Repair and Diagnosis › Engine Performance › Adjustment › Technical Data [Transmission) › Specifications › Automatic Transaxle › Reference: Pressure Chart No. 401

Reference: Pressure Chart No. 401

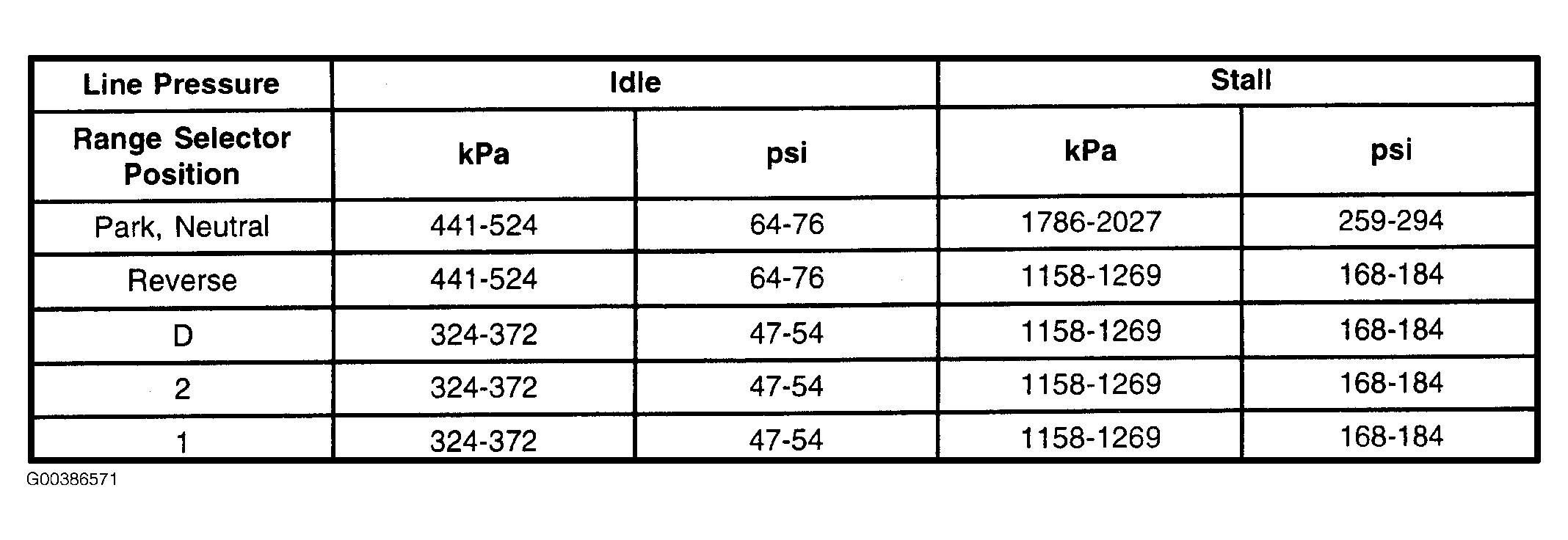

Fig 1: Pressure Chart No. 401
G00386571Courtesy of MAZDA MOTORS CORP.
