Removal & Installation

WARNING:

Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

Remove the air cleaner outlet pipe. Refer to AIR CLEANER INTAKE PIPE -- 2.0L ZETEC .
Disconnect the following electrical connectors:
1. Cylinder Temperature Sensor
2. Throttle Position Sensor
3. Wiring Harness To Vehicle
4. Idle Air Control Valve
5. Camshaft Position Sensor
6. Crankshaft Position Sensor
7. Ignition Coil
8. Radio Ignition Noise Suppressor
9. Fuel Injectors

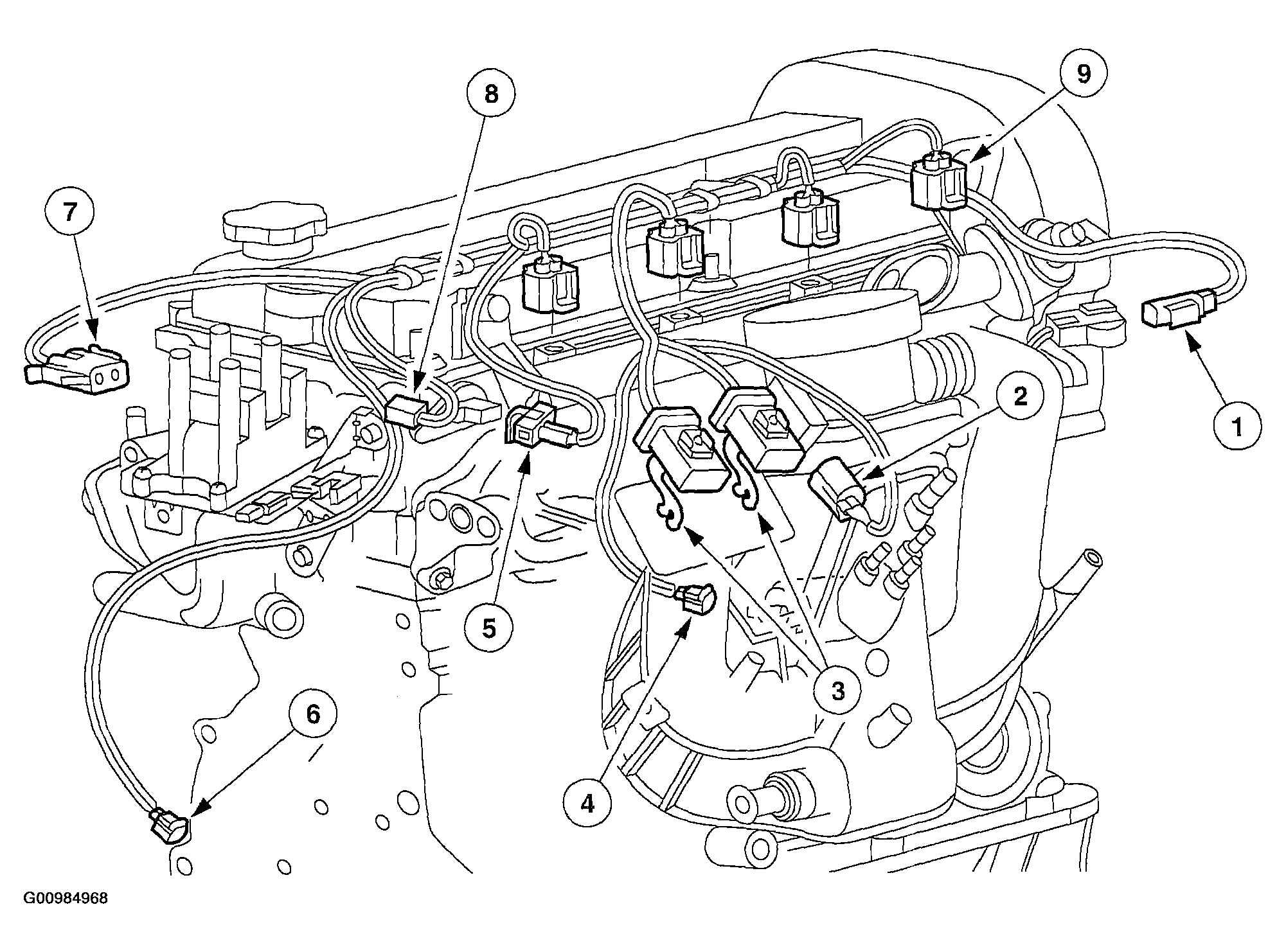

  Fig 1: Identifying Electrical Connectors
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - Remove and reinstall new tie straps if necessary.
Disconnect the wiring harness to vehicle connectors from bracket and remove harness.

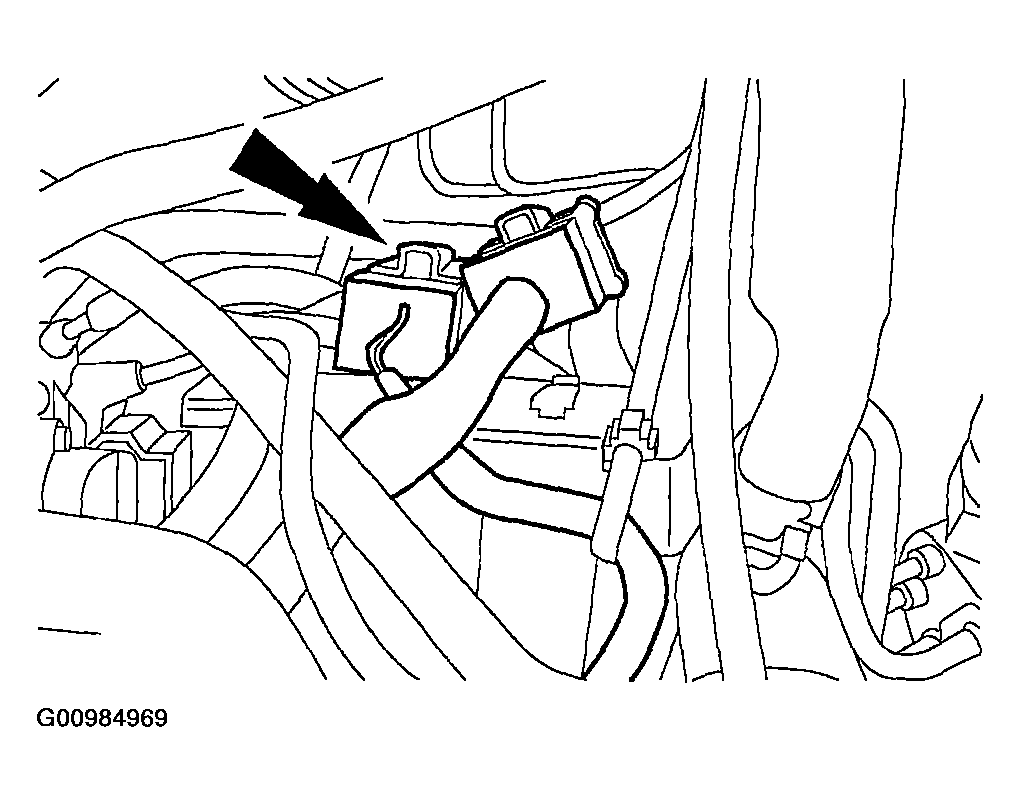

Fig 2: Identifying Wiring Harness To Vehicle Connectors
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
