Removal & Installation

Remove the bolts and the exhaust manifold heat shield.

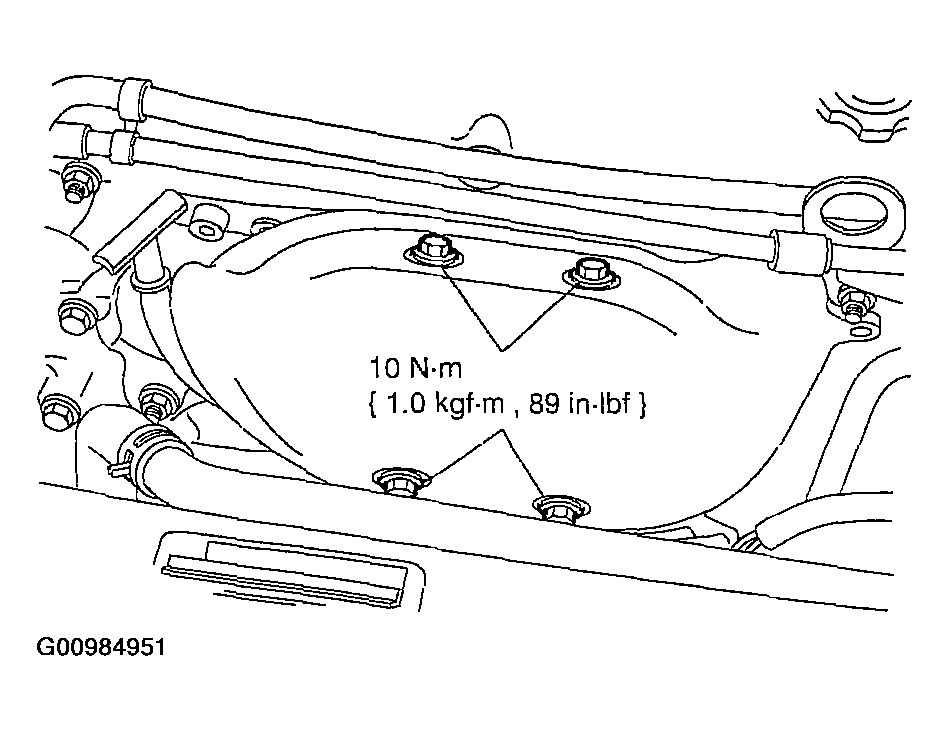

Fig 1: Identifying Exhaust Manifold Heat Shield Bolts
Courtesy of MAZDA MOTORS CORP.
Disconnect the heated oxygen sensor (HO2S) electrical connector.

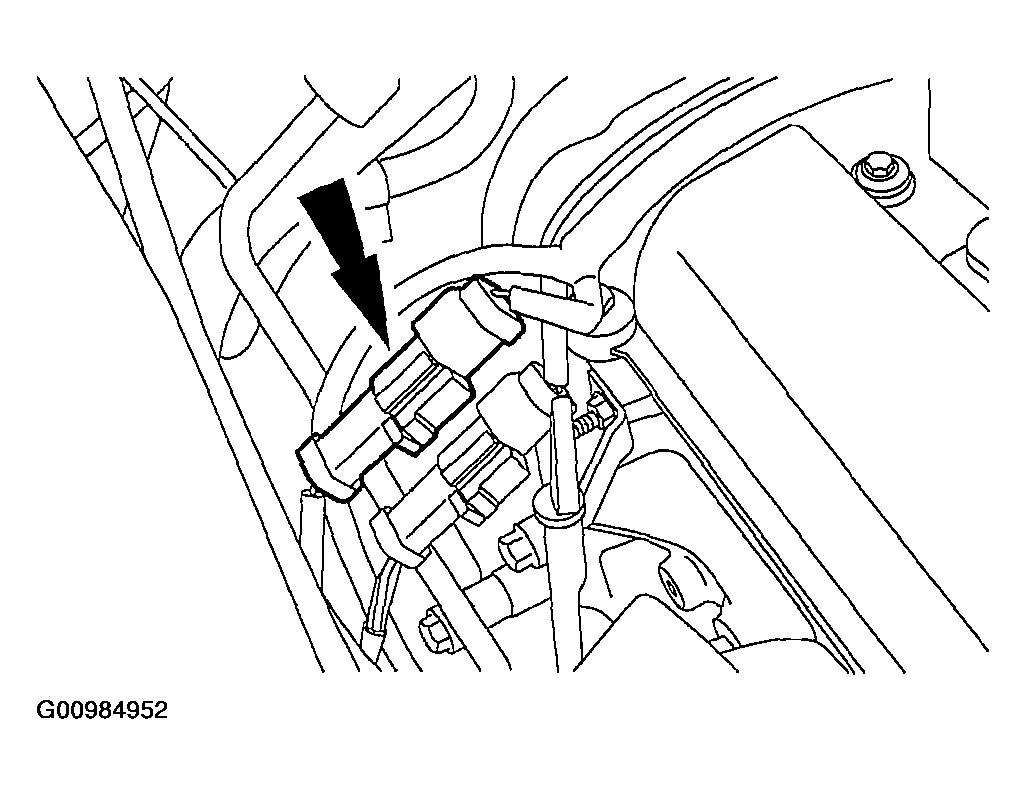

Fig 2: Identifying HO2S Electrical Connector (2.0L)
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If necessary, lubricate the HO2S with Penetrating and Lock Lubricant to aid in removal.
Using the special tool, remove the HO2S.

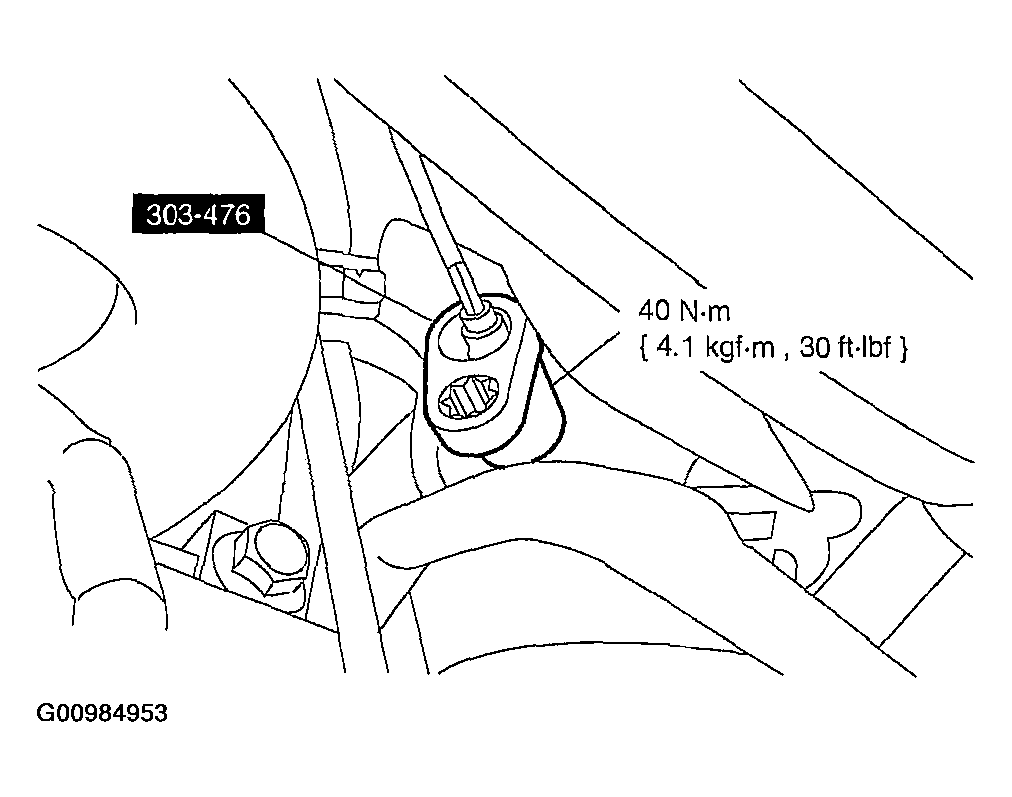

Fig 3: Removing HO2S (2.0L)
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Apply a light coat of High Temperature Nickel Anti-Seize Lubricant to the threads of the HO2S to aid in installation.
To install, reverse the removal procedure.
