2.0L 4V (Man)

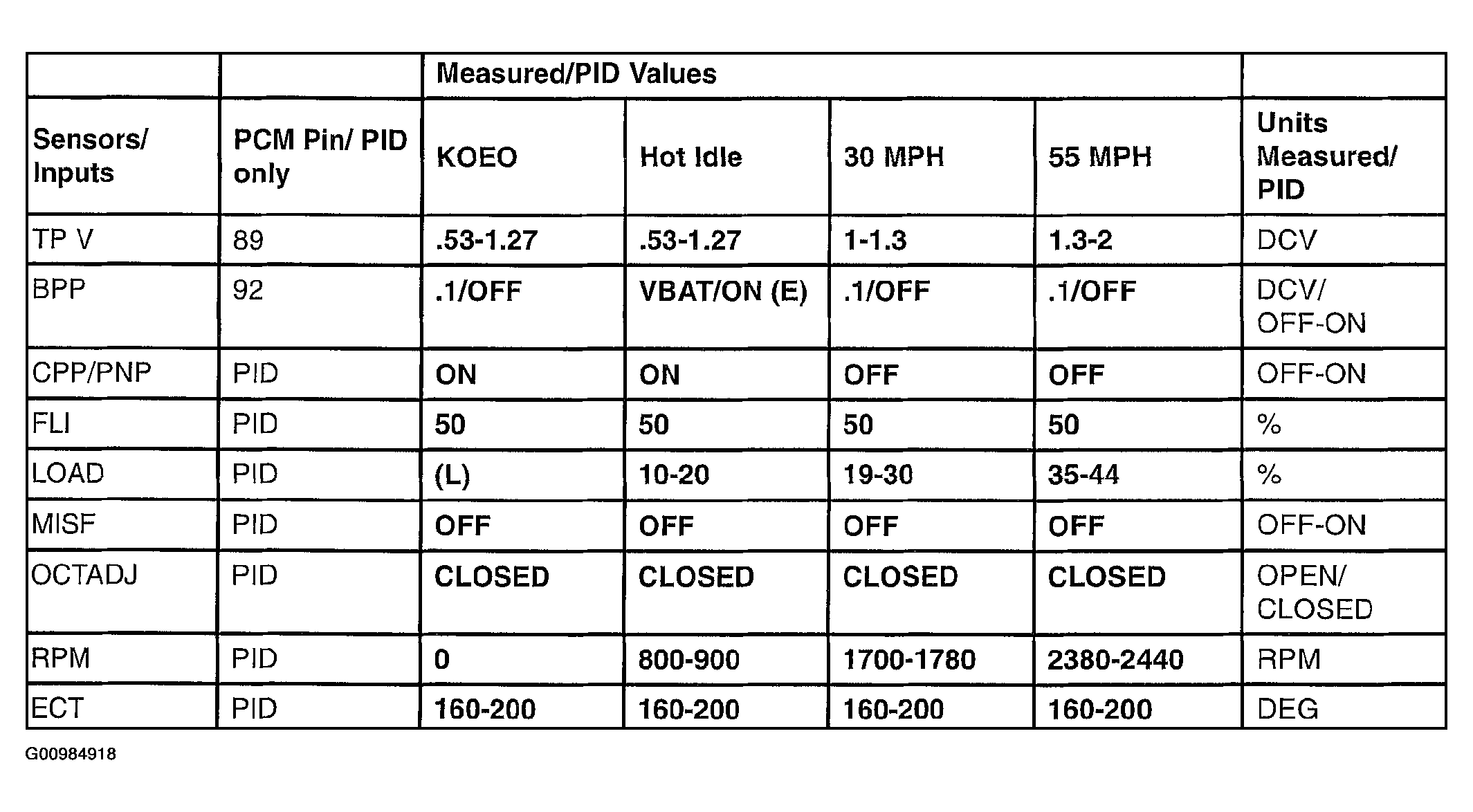

Fig 1: Identifying PID/Data Monitor Reference Value (2.0l 4V M/T) (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

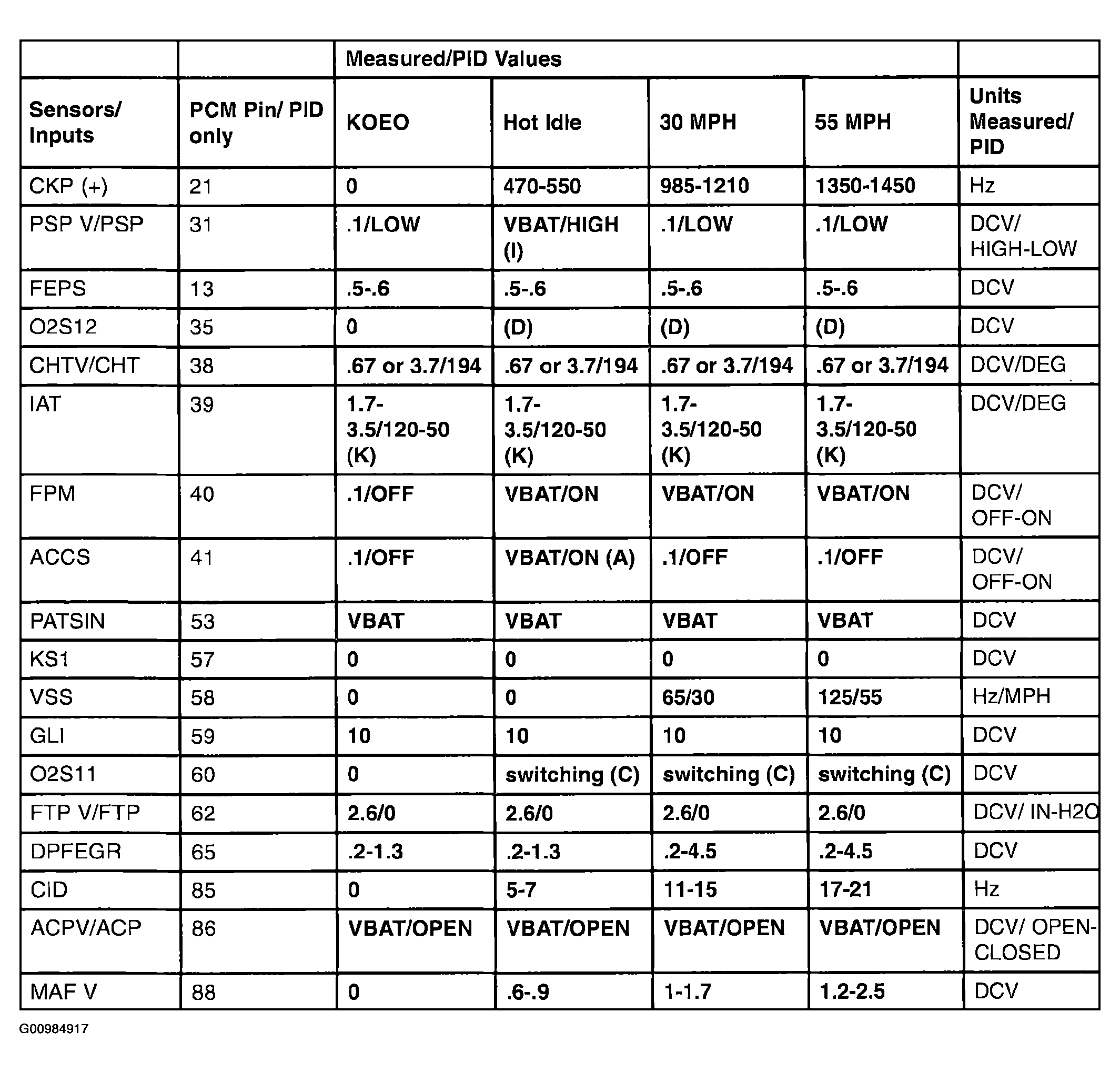

Fig 2: Identifying PID/Data Monitor Reference Value (2.0l 4V M/T) (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
