Pinpoint Test 5: The Block Heater Does Not Operate Correctly

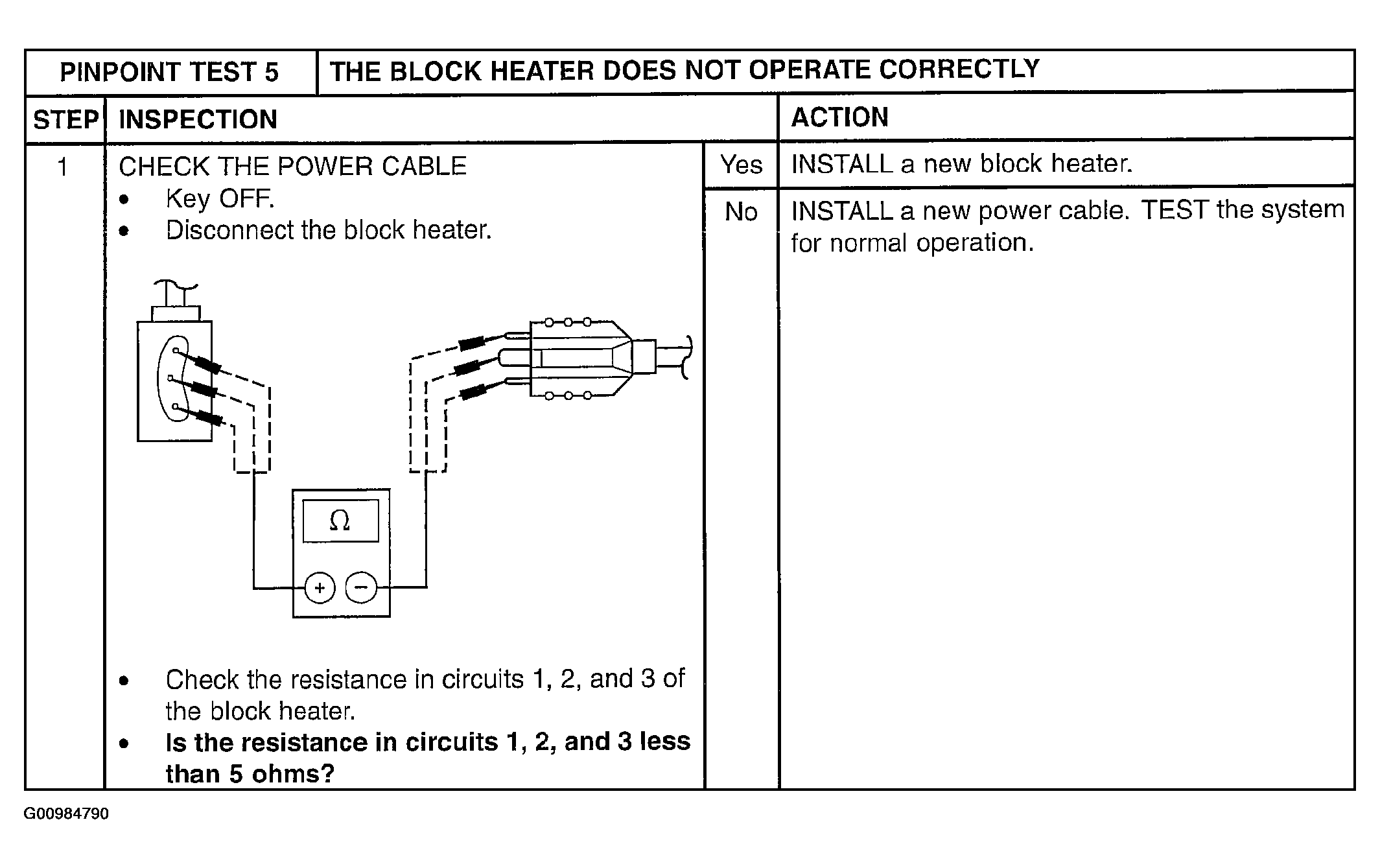

Fig 1: Pinpoint Test 5: The Block Heater Does Not Operate Correctly
G00984790Courtesy of MAZDA MOTORS CORP.
