Test 4: Fuel Delivery System

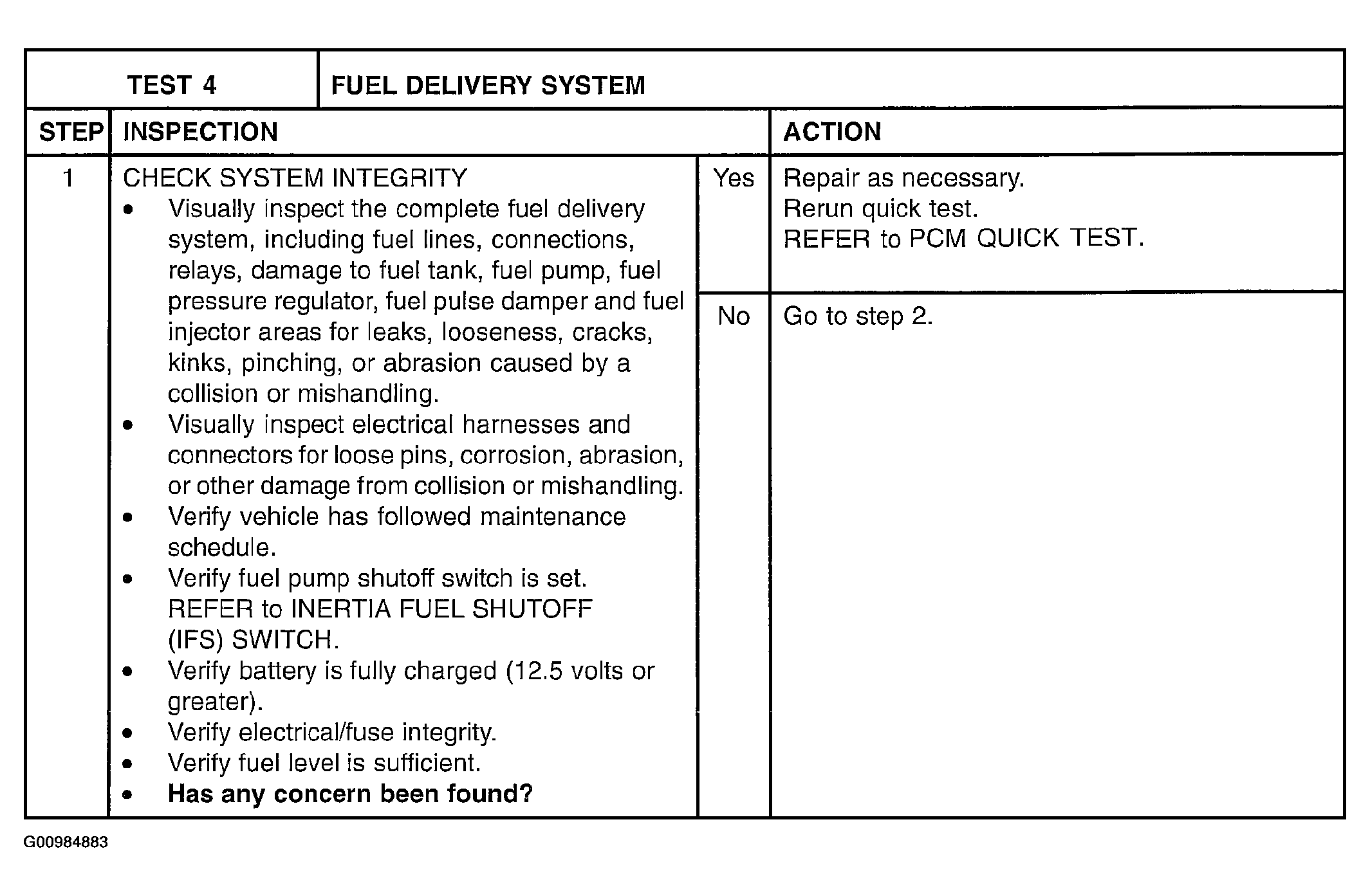

Fig 1: Test 4: Fuel Delivery System: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

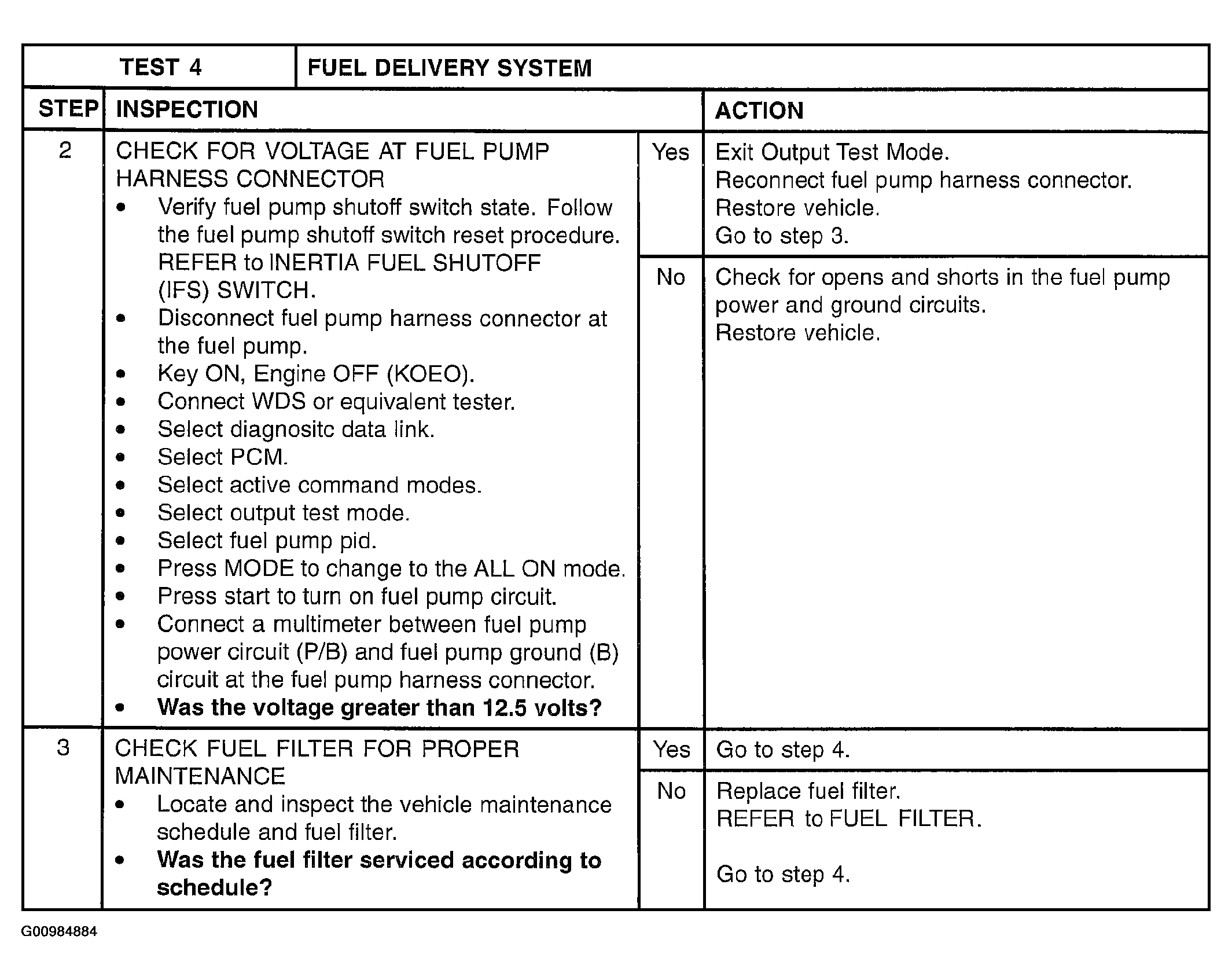

Fig 2: Test 4: Fuel Delivery System: Inspection (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

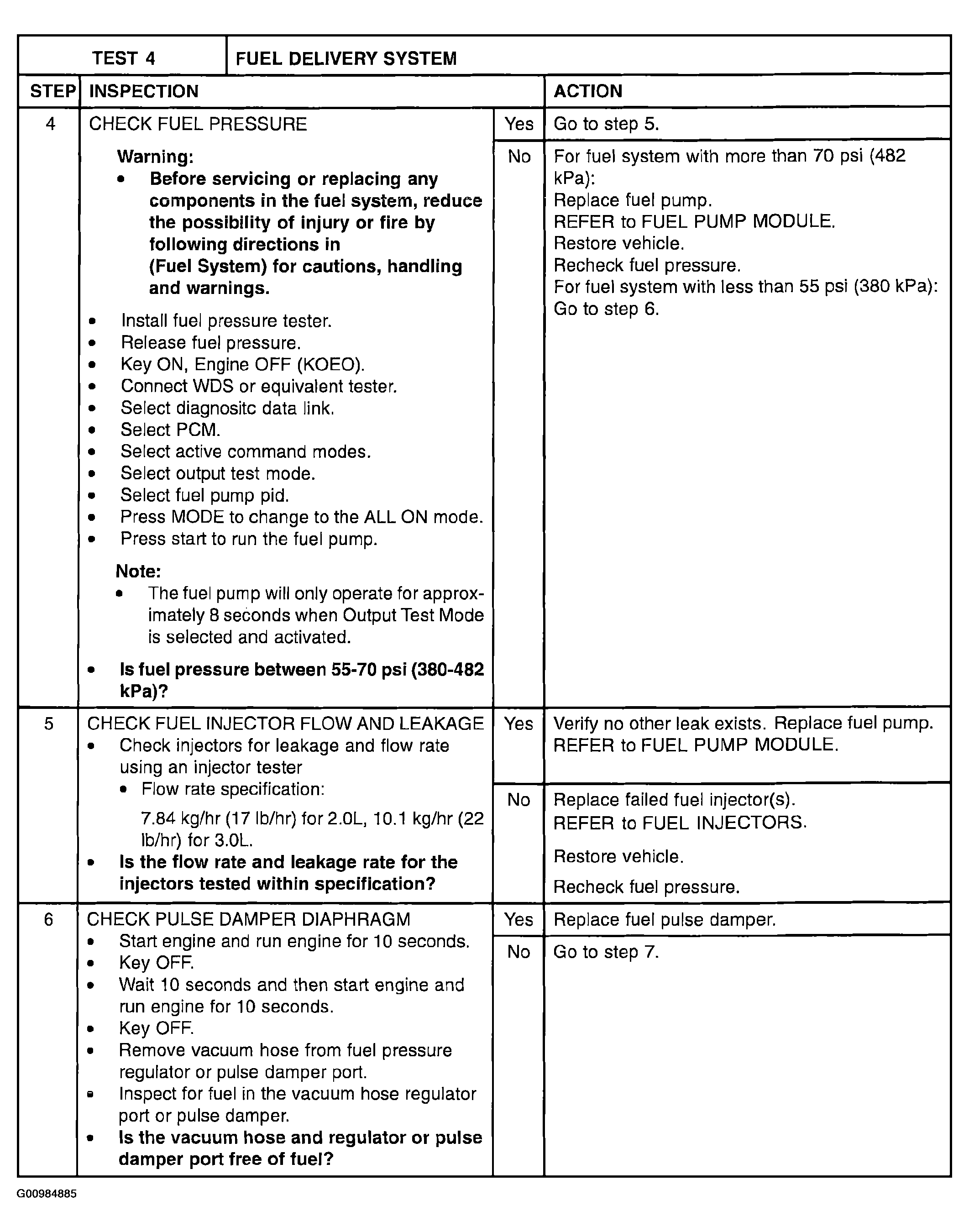

Fig 3: Test 4: Fuel Delivery System: Inspection (Steps 4-6)

Courtesy of MAZDA MOTORS CORP.

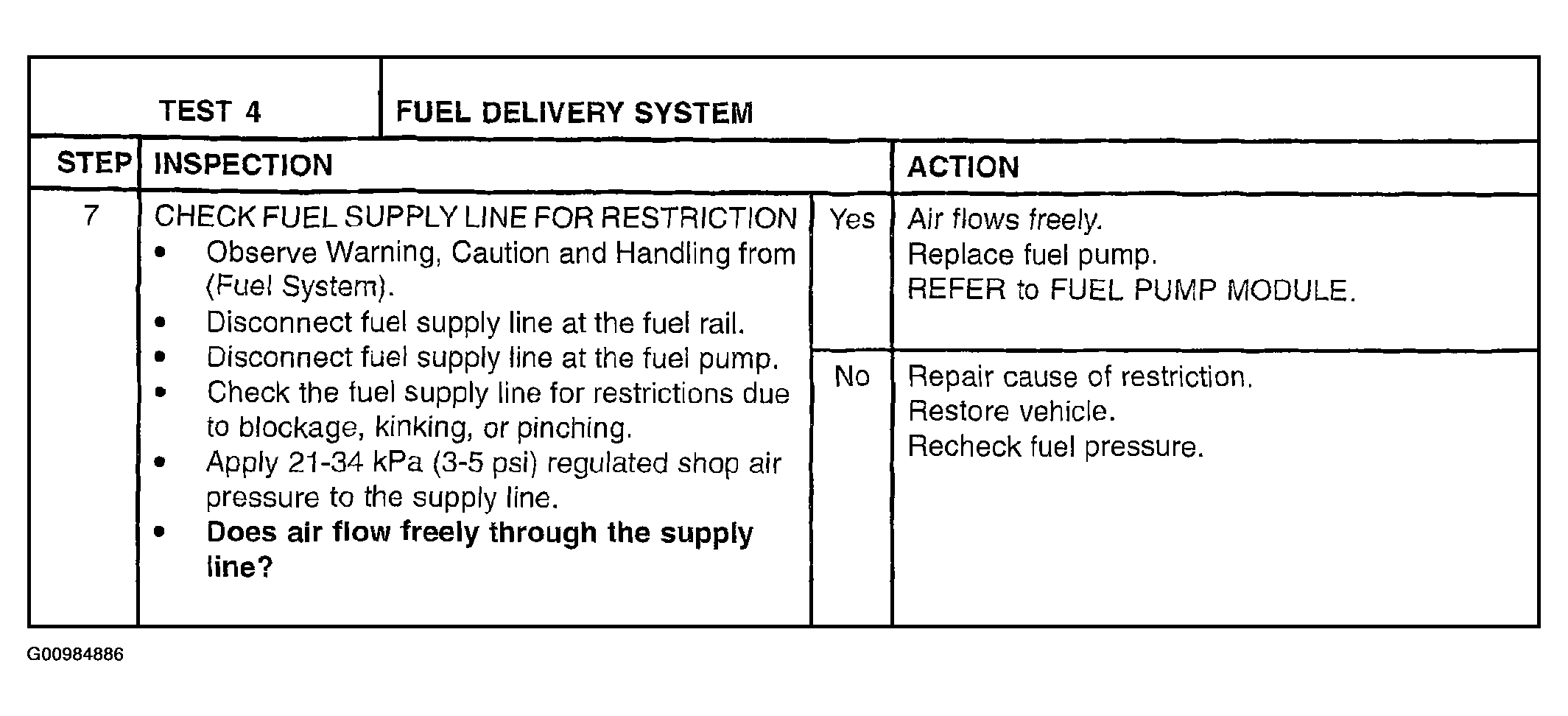

Fig 4: Test 4: Fuel Delivery System: Inspection (Step 7)

Courtesy of MAZDA MOTORS CORP.
