Test 8: Fuel Pump Inspection
Test 8: Fuel Pump Inspection

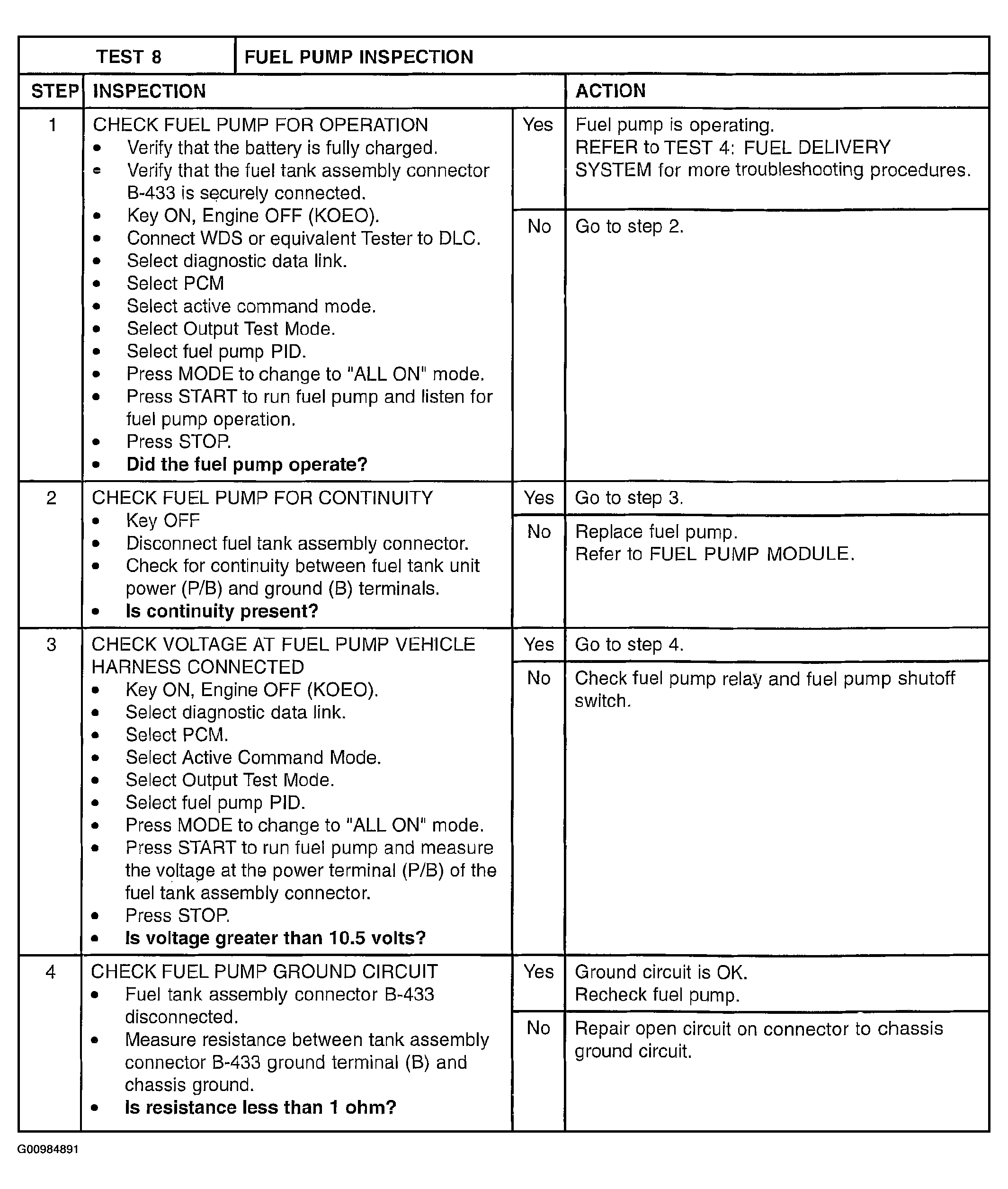

Fig 1: Test 8: Fuel Pump Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
