Ignition Wire Routing
NOTE:
On Tribute 3.0L, ignition wire routing is not available from manufacturer.

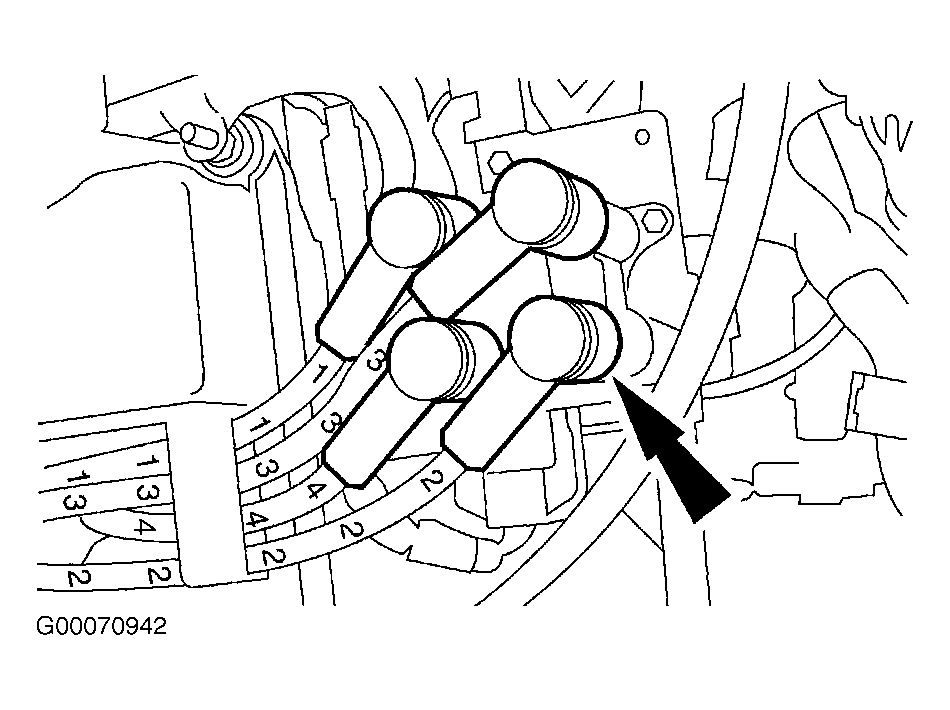

Fig 1: Identifying Ignition Wire Routing (B2300 & Tribute 2.0L)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
