Speed Control Cable - 3.0L: Removal

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

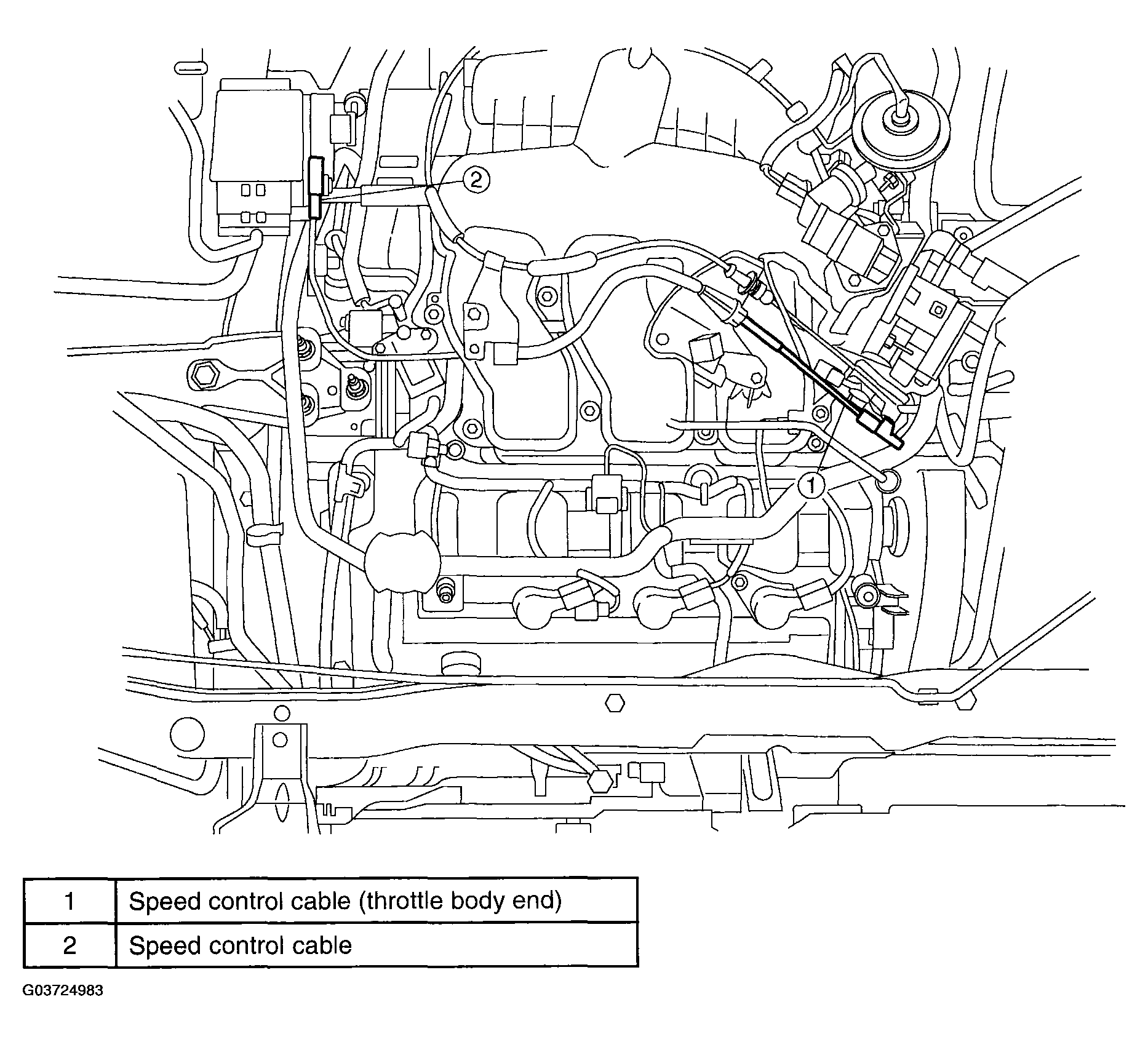

Fig 1: Removing Speed Control Cable - 3.0L

Courtesy of MAZDA MOTORS CORP.

Remove the accelerator cable snow shield.
Disconnect the cruise control cable from the throttle body.
1. Disconnect the cruise control cable from the throttle lever.
2. Disconnect the cruise control cable from the accelerator cable bracket.

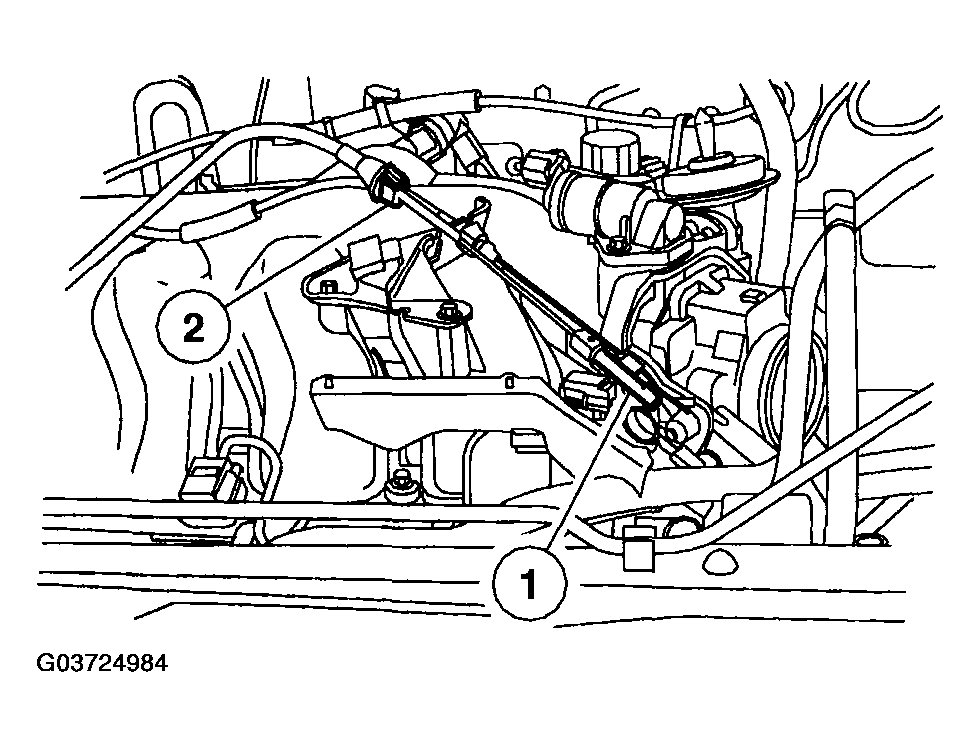

Fig 2: Disconnecting Cruise Control Cable From Throttle Body
Courtesy of MAZDA MOTORS CORP.
Press the locking tab and rotate the cruise control cable cap to remove

Fig 3: Removing Cruise Control Cable Cap
Courtesy of MAZDA MOTORS CORP.
Disconnect the cruise control cable from the cruise control actuator pulley.
1. Gently push the retaining spring.
2. Disconnect the cruise control cable slug from the cruise control actuator pulley.
Fig 4: Disconnecting Cruise Control Cable From Cruise Control Actuator Pulley
Courtesy of MAZDA MOTORS CORP.
