Speed Control DEACTIVATOR Switch: Removal

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

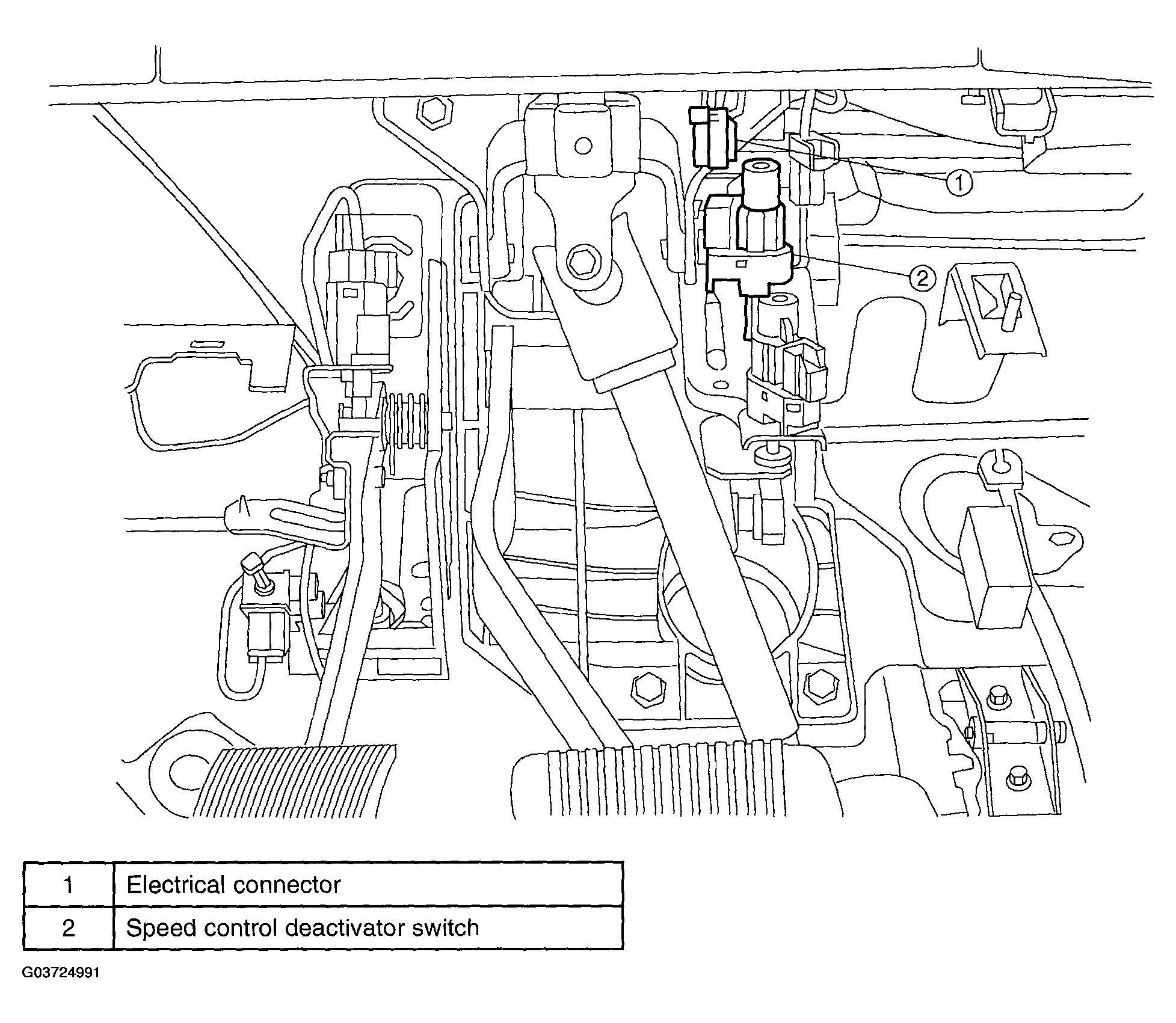

Fig 1: Removing Speed Control Deactivator Switch

G03724991

Courtesy of MAZDA MOTORS CORP.

Remove the deactivator switch.
1. Disconnect the electrical connector.
2. Rotate counterclockwise 45 degrees and remove the deactivator switch.

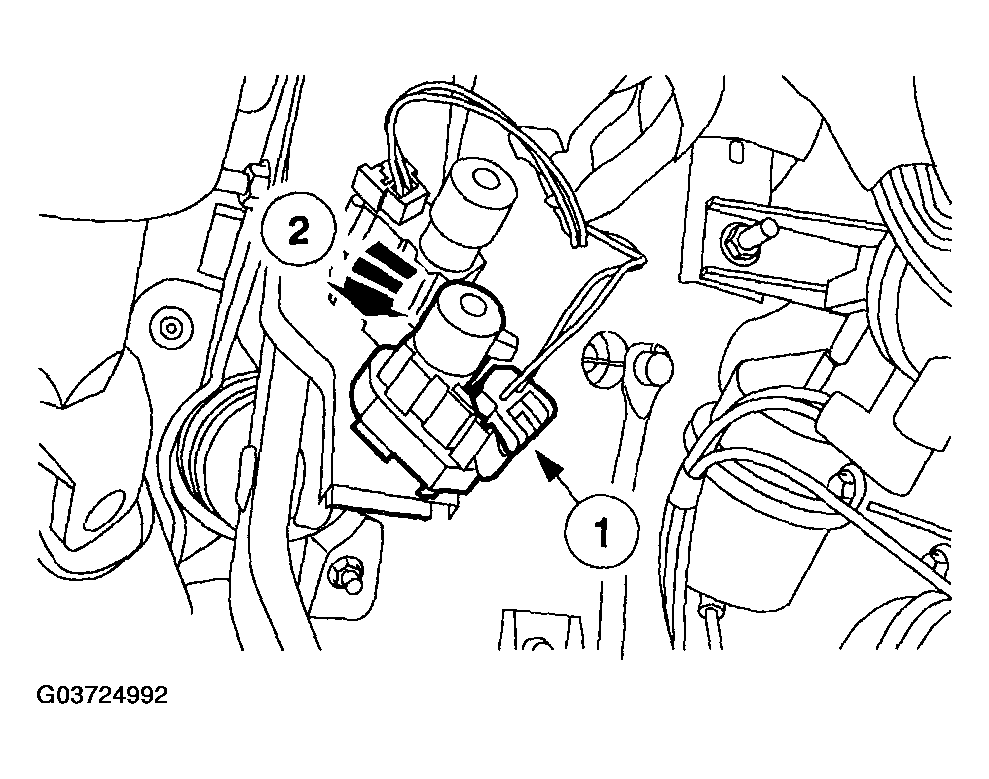

Fig 2: Removing Deactivator Switch
Courtesy of MAZDA MOTORS CORP.
