Brake System Leak Check

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

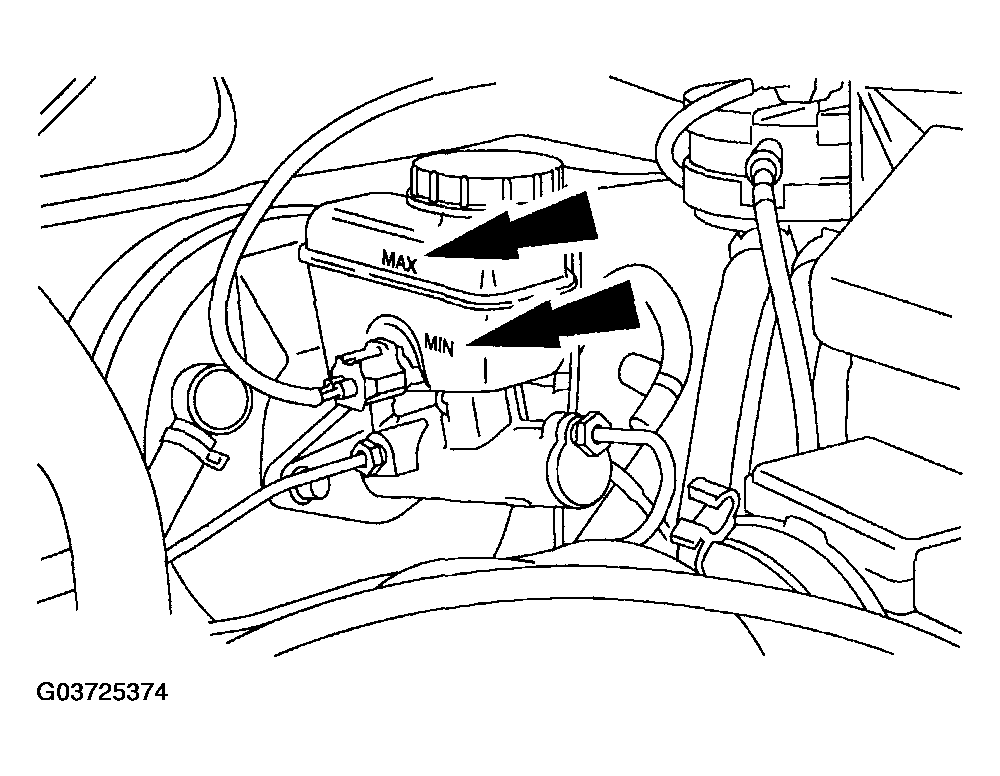

Check the brake fluid level. If the fluid level is below the MIN line on the brake master cylinder reservoir add the necessary amount of DOT 3 brake fluid.

Fig 1: Checking Brake Fluid Level
Courtesy of MAZDA MOTORS CORP.

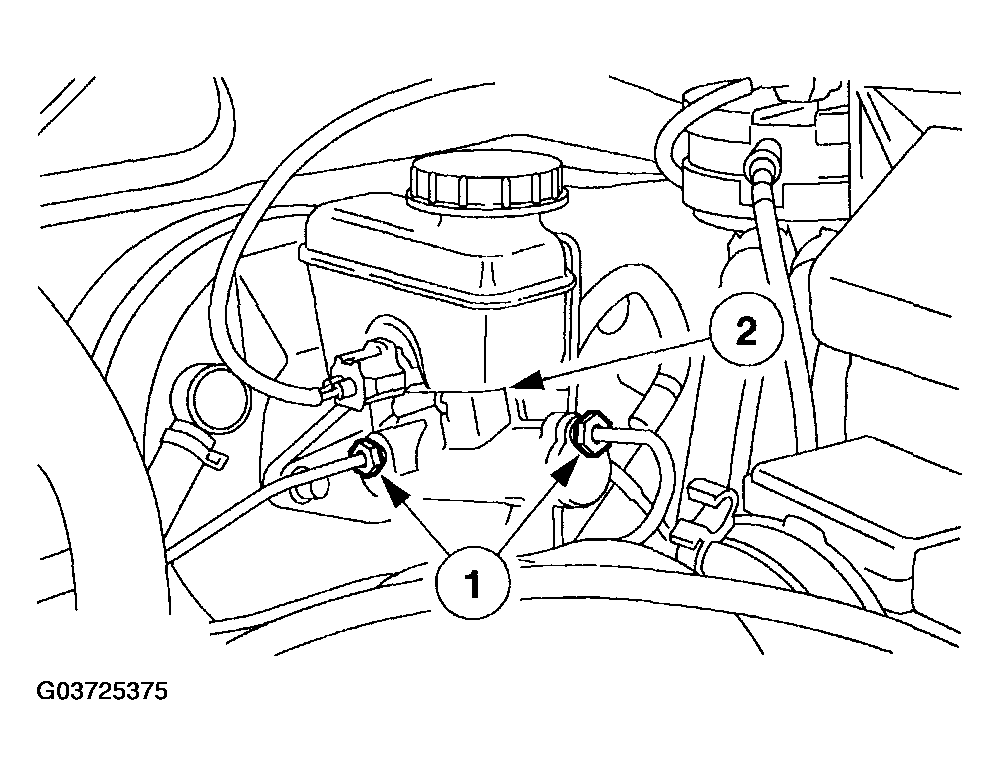

Inspect the (1) brake line nuts and the (2) brake master cylinder reservoir for fluid leaks.

Fig 2: Inspecting Brake Line Nuts
Courtesy of MAZDA MOTORS CORP.
Inspect the brake lines and hoses for fluid leaks.
Inspect the rear wheel cylinders for leaks.
Inspect the front disc brake calipers for leaks.
If a hydraulic leak is detected, repair or install a new component.
