WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

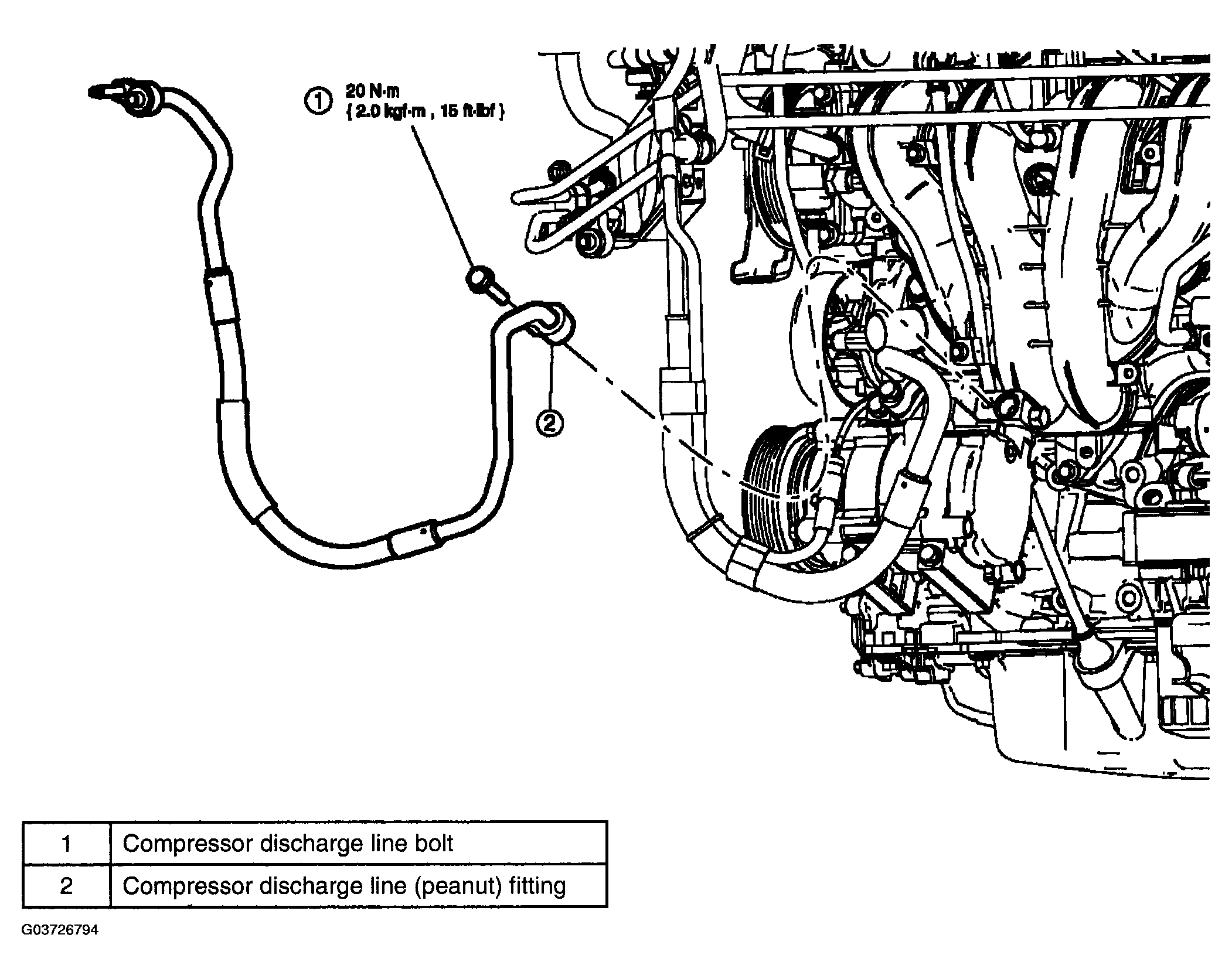

Fig 1: Compressor To Condenser Line -- 2.3L (Items 1--2) -- With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

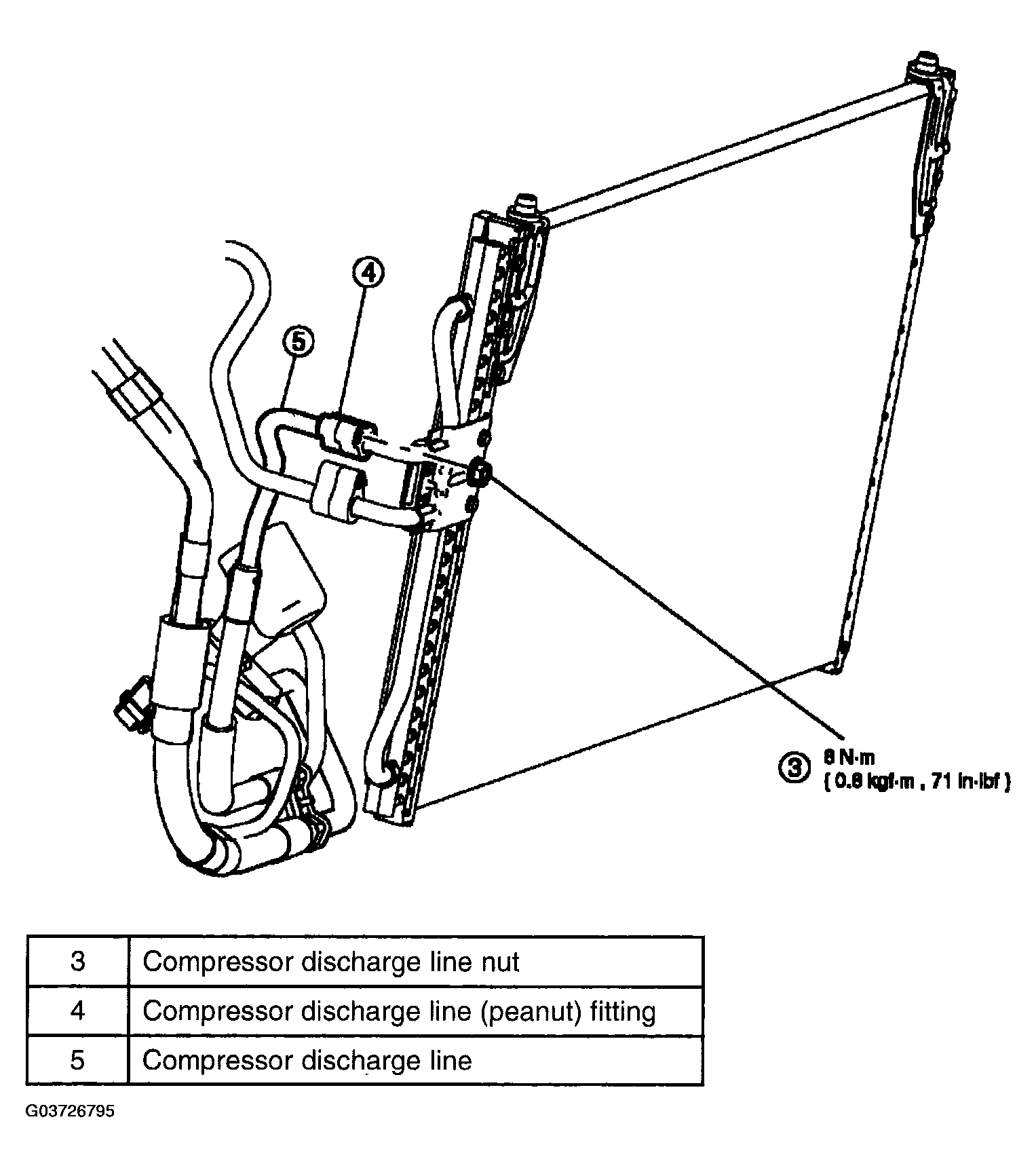

Fig 2: Compressor To Condenser Line -- 2.3L (Items 3--5) -- With Torque Specifications
