Heated Seat Module: Installation
WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

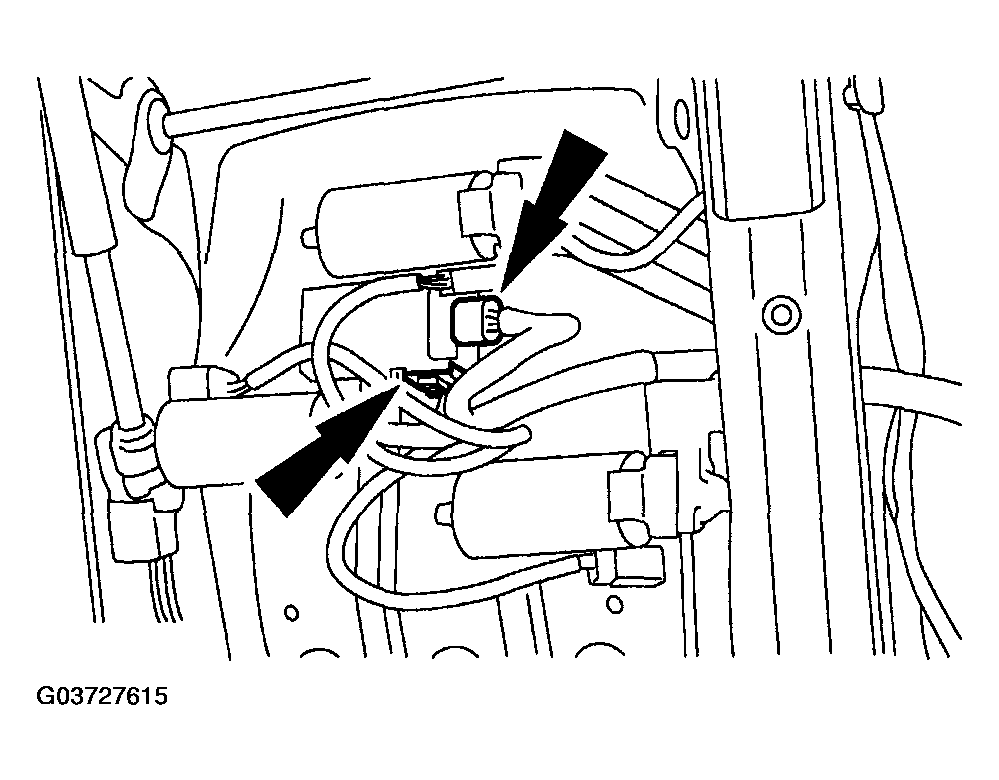

- Install the heated seat module.
- Slide the heated seat module down over the attachment bracket until the locking tab snaps into place.
- Connect the electrical connector.
- Install the front seat. For additional information, See DRIVER SEAT , or PASSENGER SEAT .
- Repower the SRS. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
