Heated Seat Module: Removal
WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The power seat is shown, the manual seat is similar.
NOTE:
- The driver seat is shown, the passenger seat is similar.
- Depower the SRS. See SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- Remove the front seat. For additional information, See DRIVER SEAT , or PASSENGER SEAT .

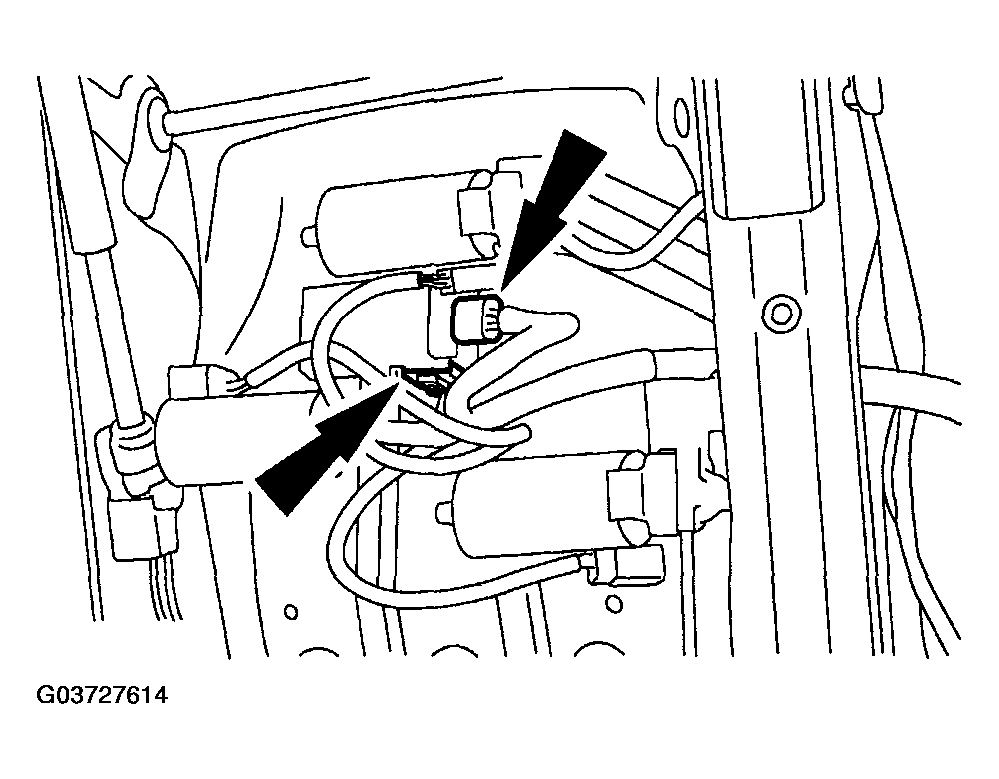

- Remove the heated seat module.
- Disconnect the electrical connector.
- Using a small flat-blade screwdriver, release the locking tab and slide the module off the attachment bracket.
