Hood Latch: Removal

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hood latch nut.

Fig 1: Removing Hood Latch Nut
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Mark the hood latch position prior to removal of the bolts.
Remove the hood latch bolts.

Fig 2: Removing Hood Latch Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the hood latch.
1. Release the cable conduit.
2. Disconnect the cable.
3. Remove the hood latch.

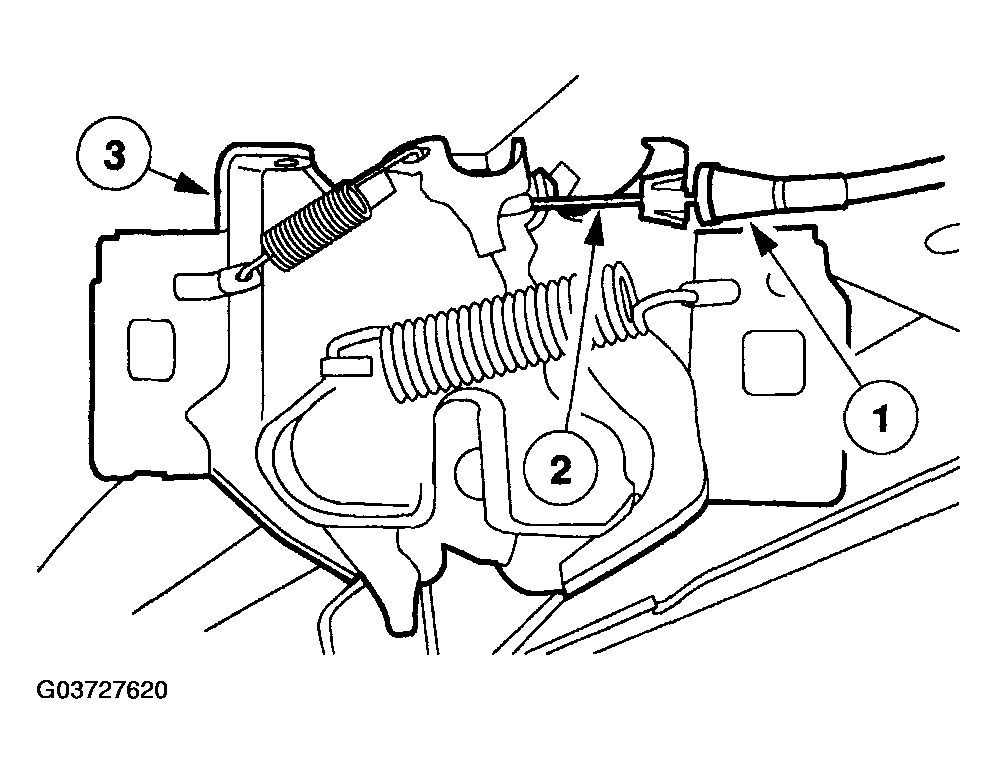

Fig 3: Removing Hood Latch
Courtesy of MAZDA MOTORS CORP.
