Liftgate Latch: Notes

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

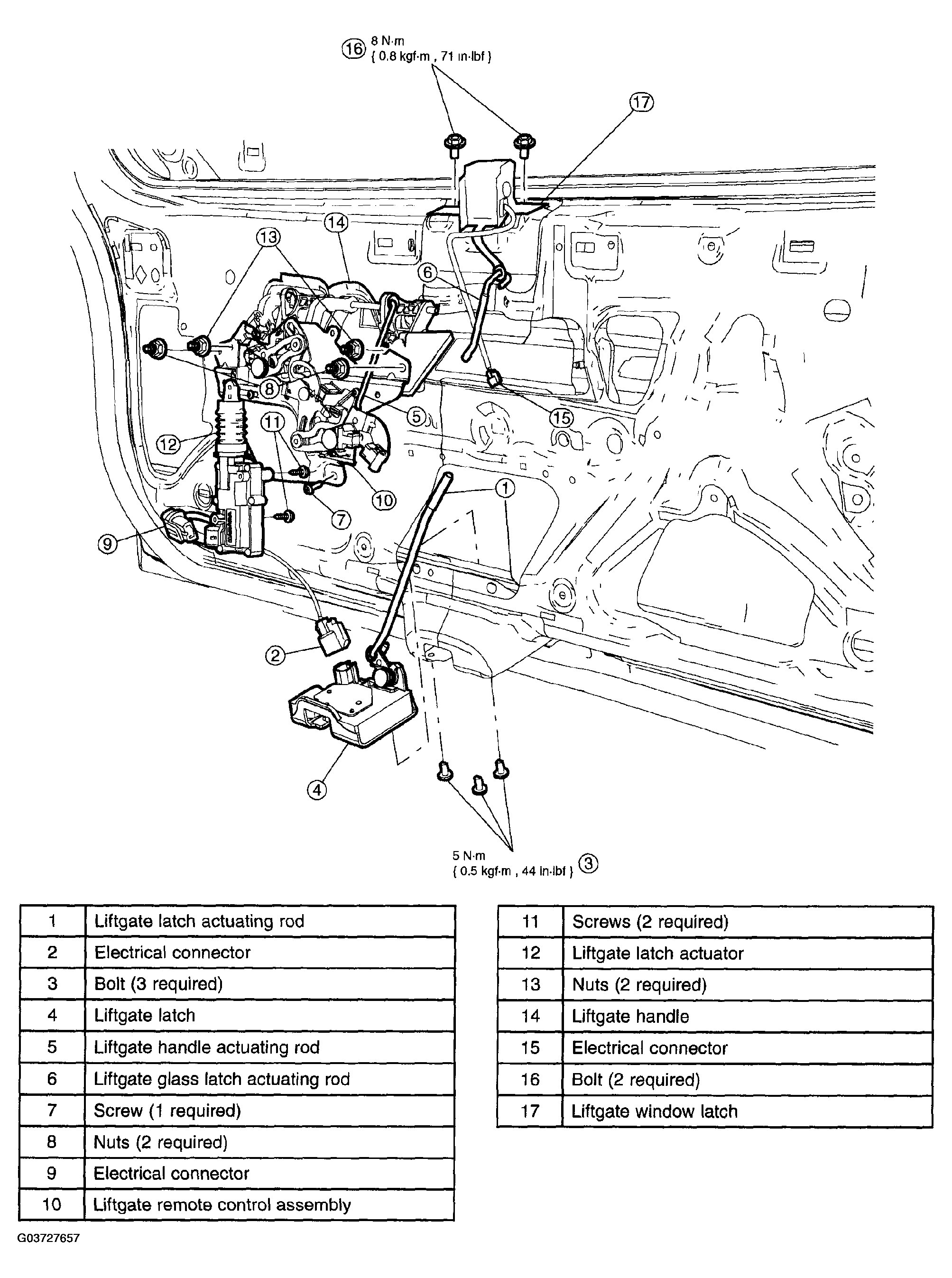

Fig 1: Liftgate Latch Replacement Components -- With Torque Specification
G03727657Courtesy of MAZDA MOTORS CORP.
