Assembly Note

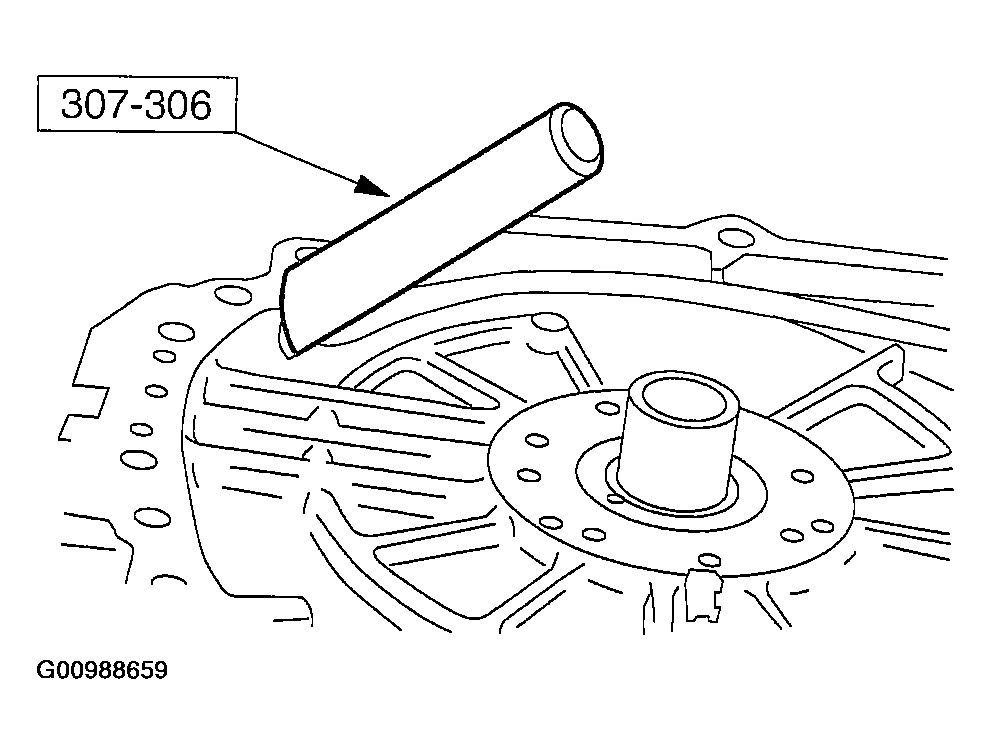

Fig 1: Positioning New Differential Lube Tube In Torque Converter Housing

Courtesy of MAZDA MOTORS CORP.

Position a new differential lube tube in the torque converter housing.

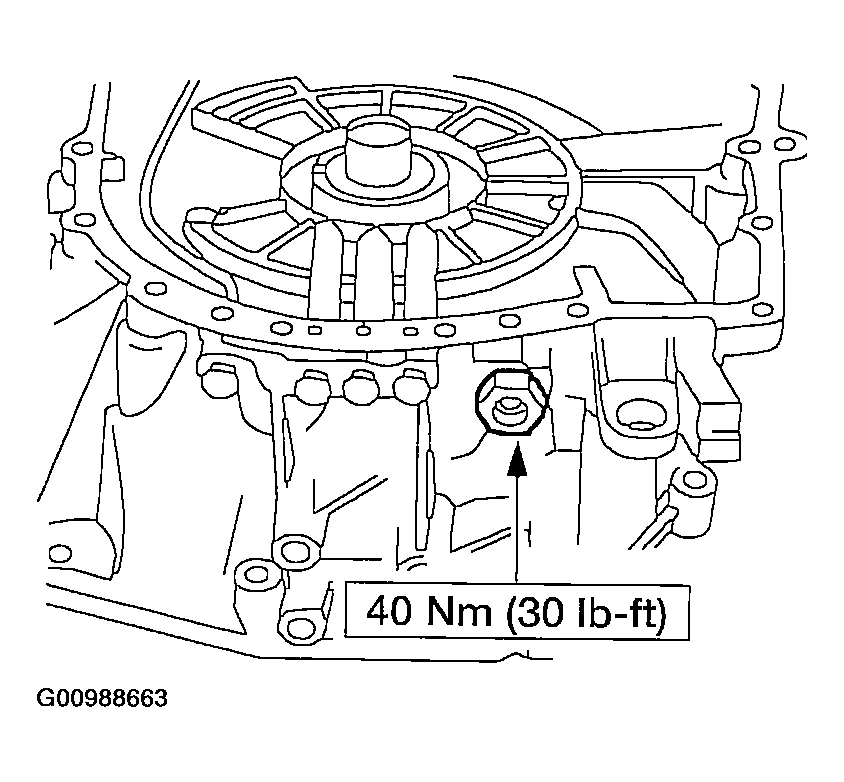

Fig 2: Installing Differential Lube Tube
Courtesy of MAZDA MOTORS CORP.
Using the special tool, install the differential lube tube.

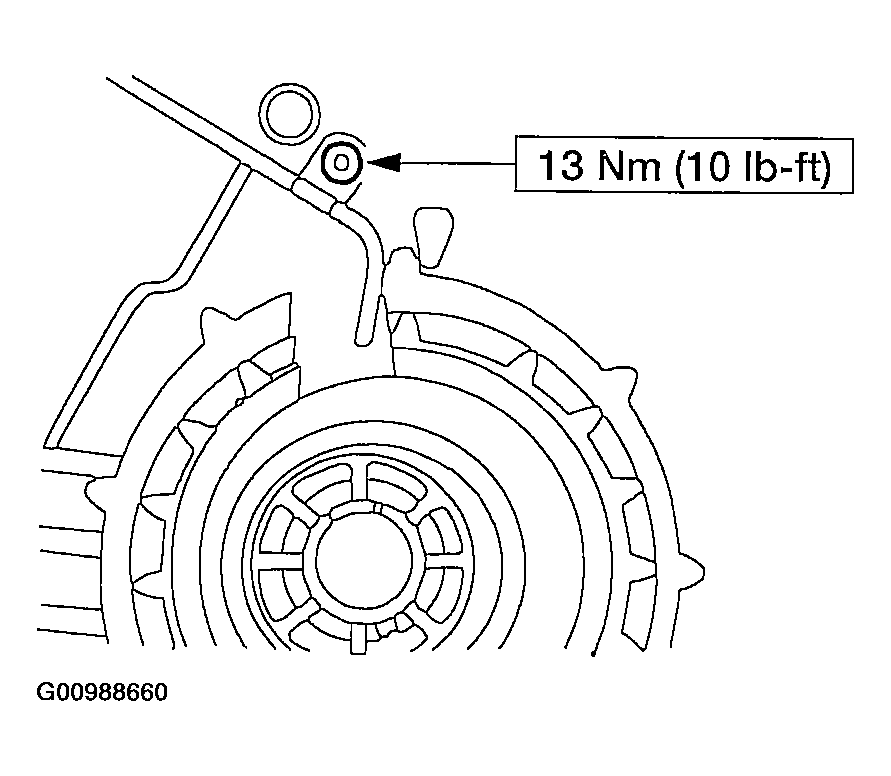

Fig 3: Installing Differential Lube Tube Bolt
Courtesy of MAZDA MOTORS CORP.
Install the differential lube tube bolt.

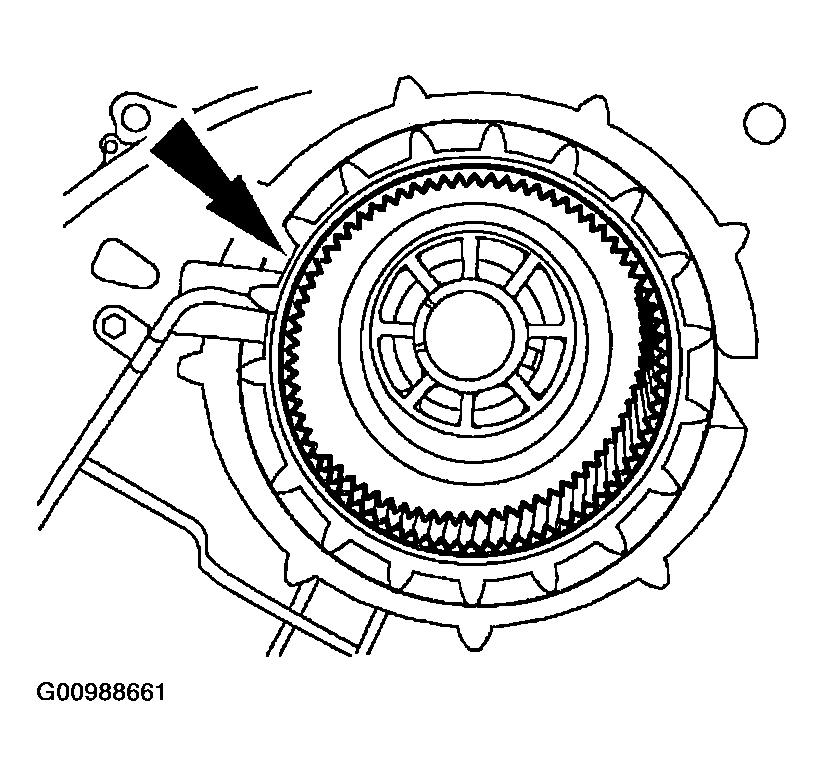

Fig 4: Installing Final Drive Ring Gear
Courtesy of MAZDA MOTORS CORP.
NOTE:
- The final drive ring gear is installed with the lug end uppermost.
Install the final drive ring gear.

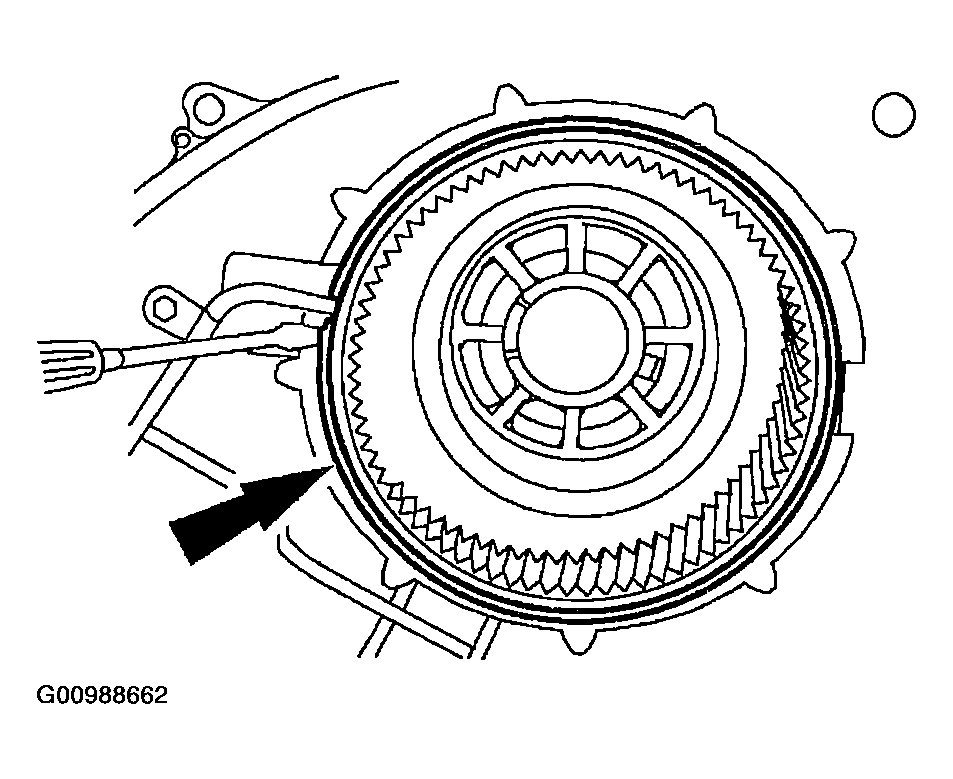

Fig 5: Installing Final Drive Ring Gear Retaining Ring
Courtesy of MAZDA MOTORS CORP.
Install the final drive ring gear retaining ring.

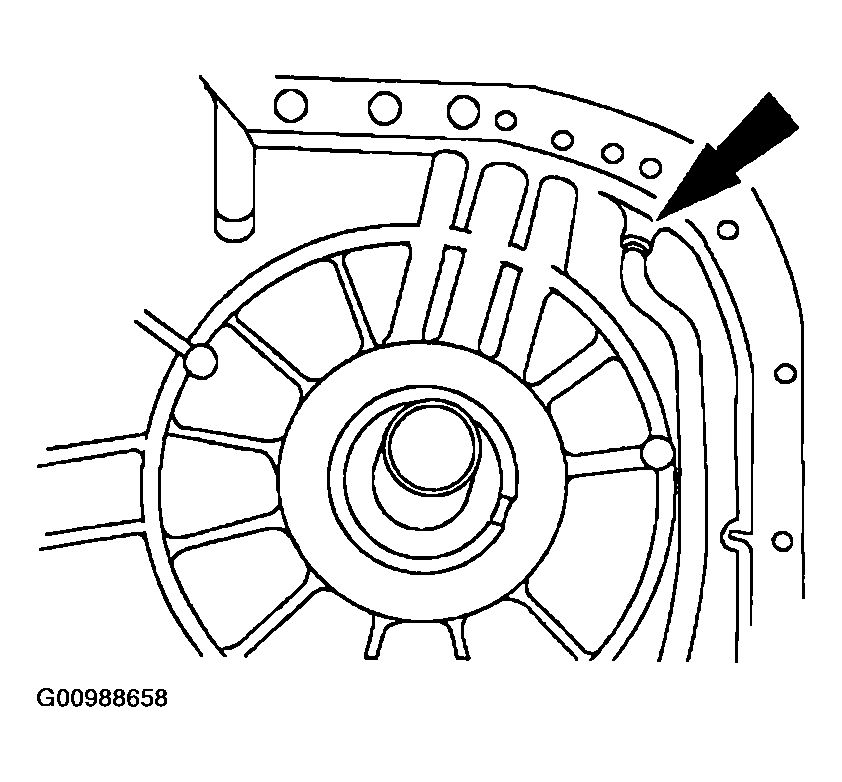

Fig 6: Installing Cooler Tube Fitting
Courtesy of MAZDA MOTORS CORP.
Install the cooler tube fitting.
