Selector Lever Cable Adjustment

Fig 1: Removing Upper Steering Column Shroud

Courtesy of MAZDA MOTORS CORP.

1. Remove the upper steering column shroud.

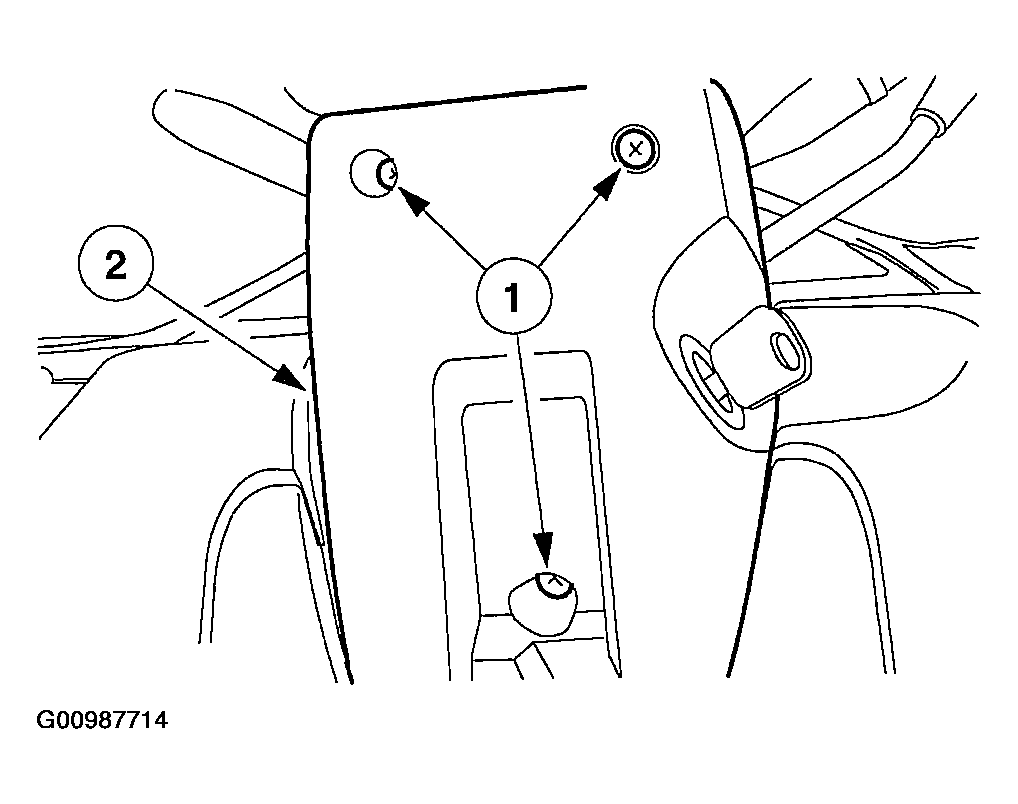

   Fig 2: Removing Lower Steering Column Shroud

   Courtesy of MAZDA MOTORS CORP.
2. Remove the lower steering column shroud.
   1. Remove the screws.
   2. Remove the lower steering column shroud.

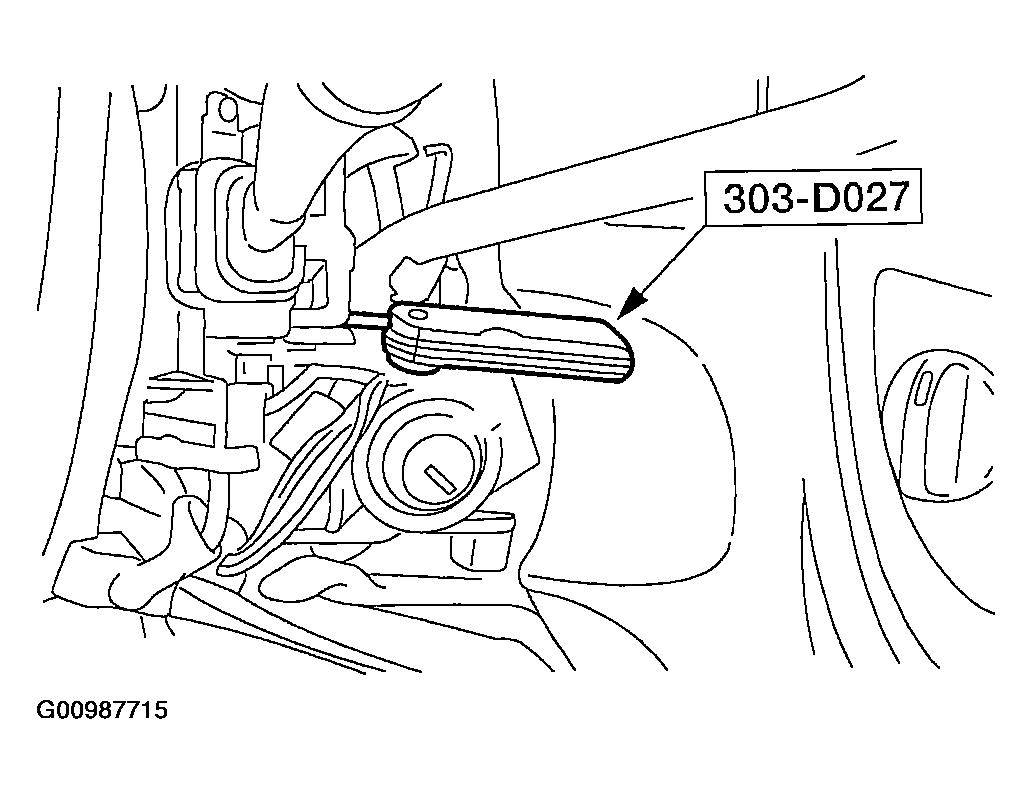

   Fig 3: Positioning 0.6mm (0.023 in) Feeler Gauge Between Gearshift Lever Selector & Gearshift Lever Detent

   Courtesy of MAZDA MOTORS CORP.
3. Position a 0.6mm (0.023 in) feeler gauge between the gearshift lever selector and the gearshift lever detent.
4. Place the gearshift lever in the DRIVE position and hang a 1.4 kg (3 lb) weight from the gearshift lever.

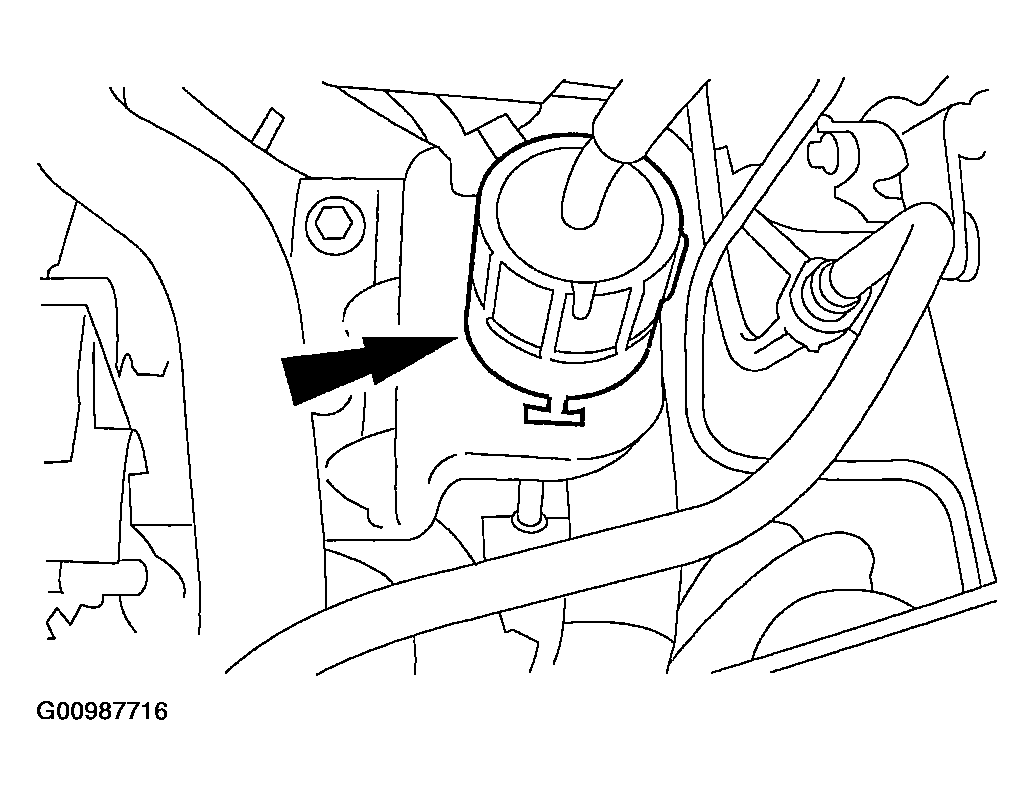

   Fig 4: Loosening Gearshift Cable Adjuster To Adjust Cable Then Tighten

   Courtesy of MAZDA MOTORS CORP.
5. Loosen the gearshift cable adjuster to adjust the cable then tighten.
6. Remove the weight from the gearshift lever.
7. Place the gearshift lever in the PARK position and remove the feeler gauge.

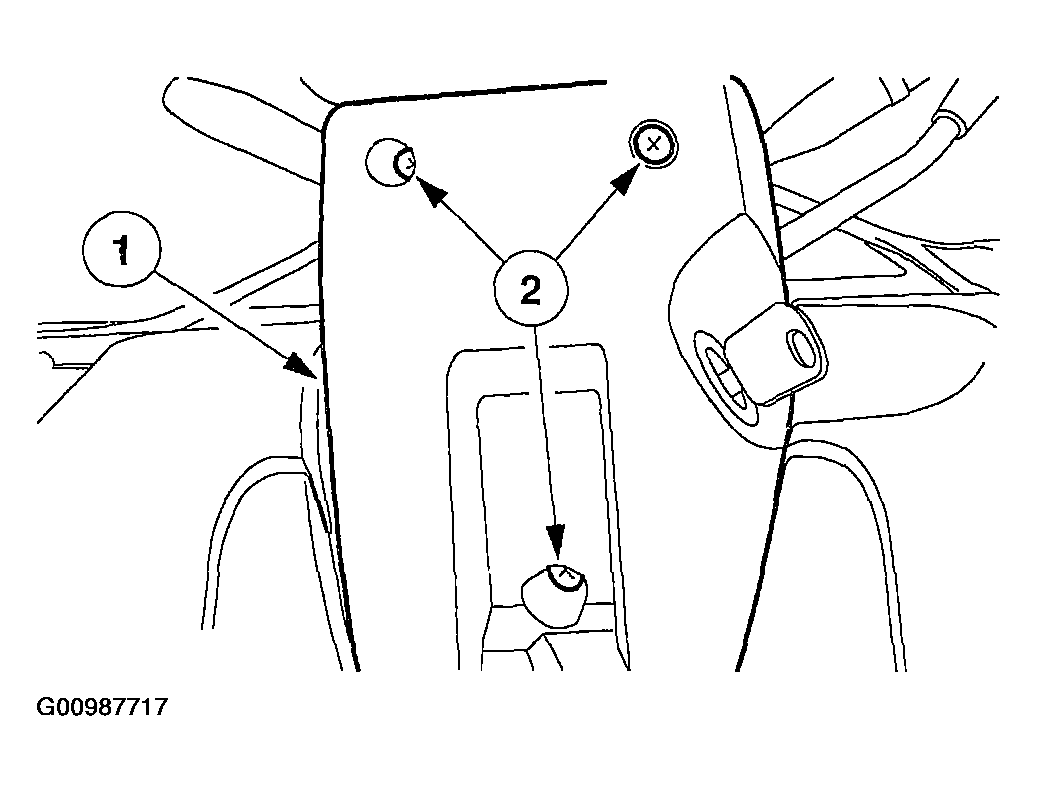

   Fig 5: Installing Lower Steering Column Shroud

   Courtesy of MAZDA MOTORS CORP.
8. Install the lower steering column shroud.
   1. Position the lower steering column shroud.
   2. Install the screws.
   Fig 6: Installing Upper Steering Column Shroud

   Courtesy of MAZDA MOTORS CORP.
9. Install the upper steering column shroud.
