Main Control Valve Body

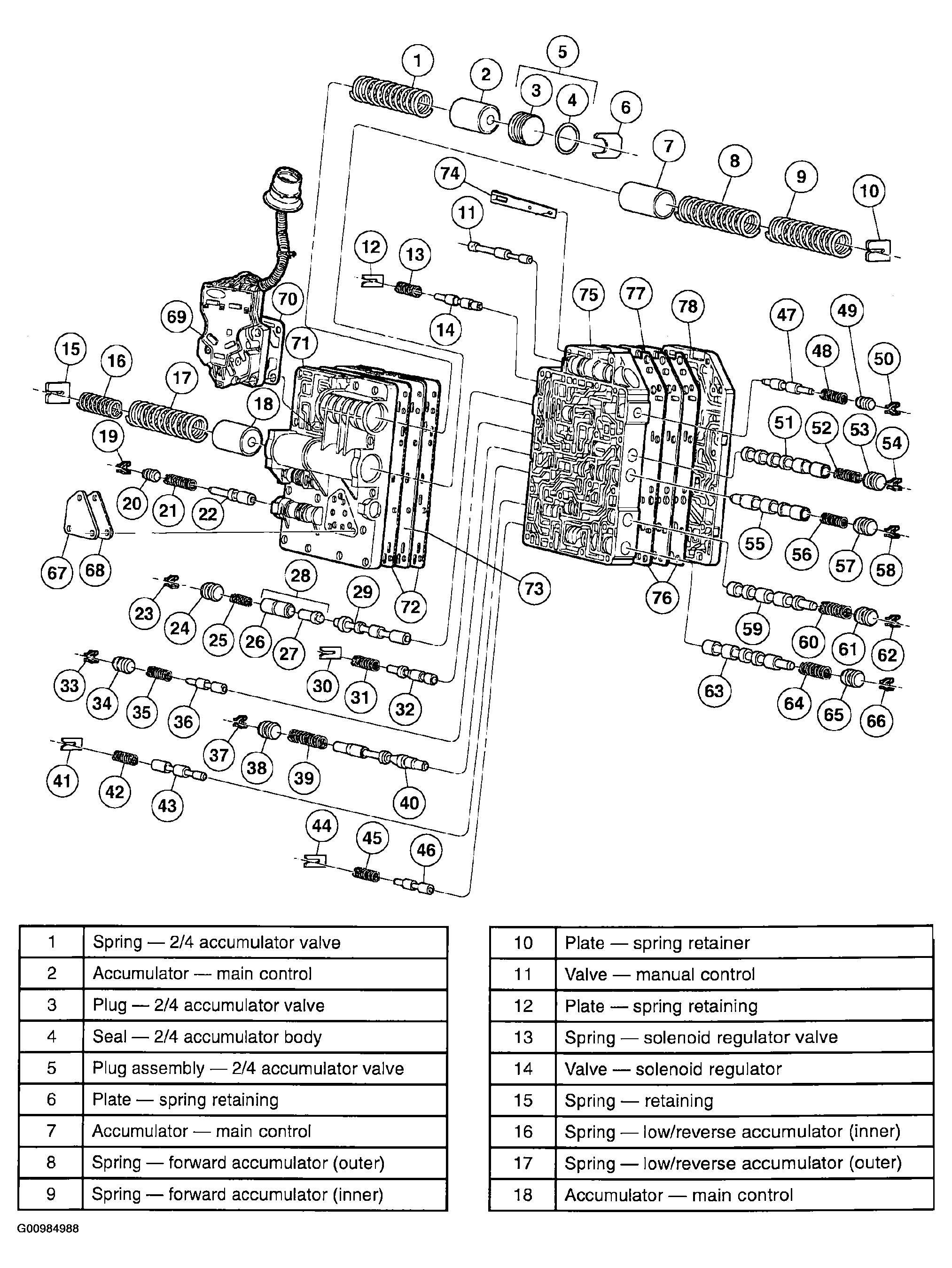

Fig 1: Disassembled View Of Main Control Valve Body & Legend
G00984988Courtesy of MAZDA MOTORS CORP.

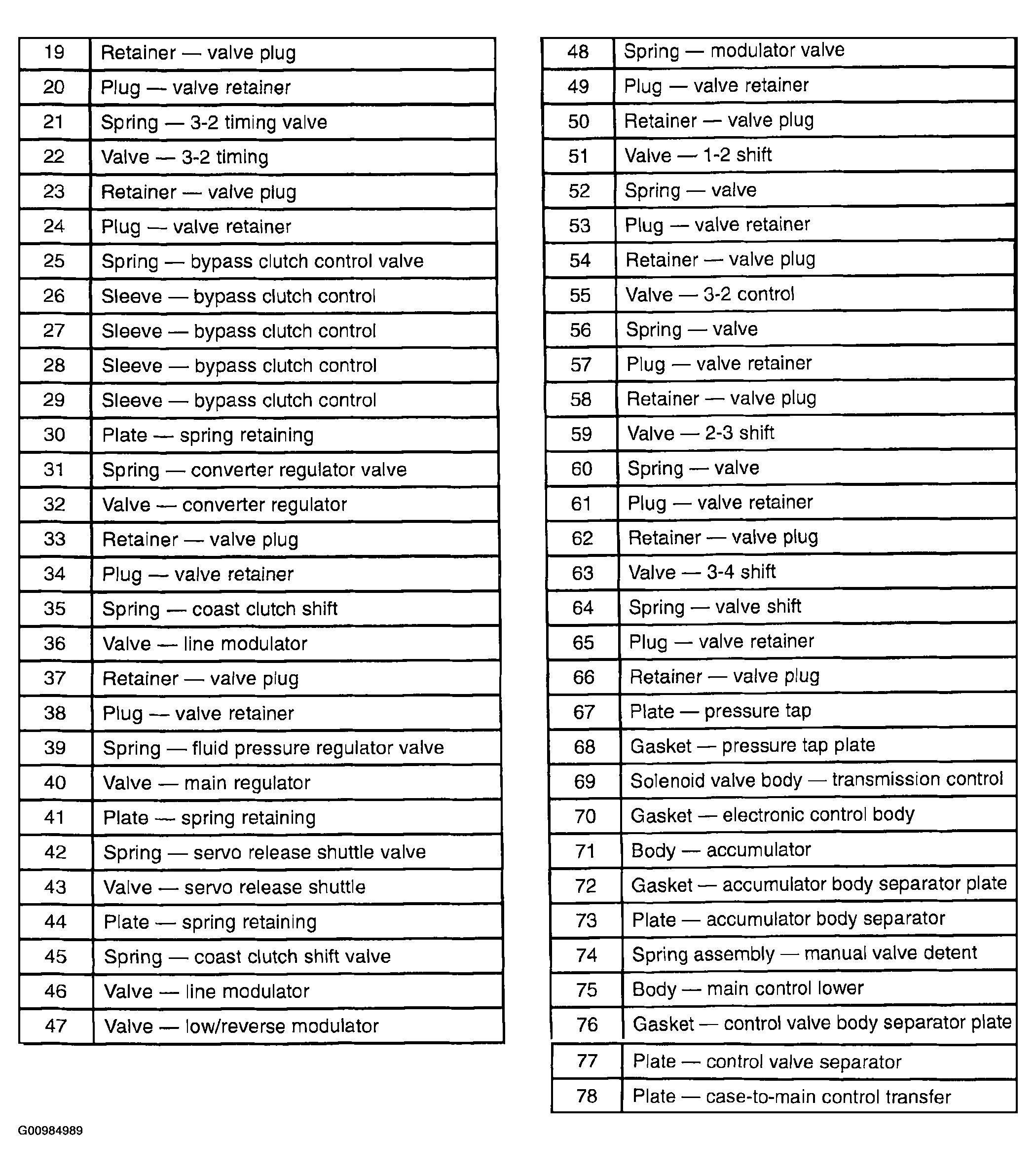

Fig 2: Disassembled View Of Main Control Valve Body Legend
G00984989Courtesy of MAZDA MOTORS CORP.
