Disassembled Views: Transaxle

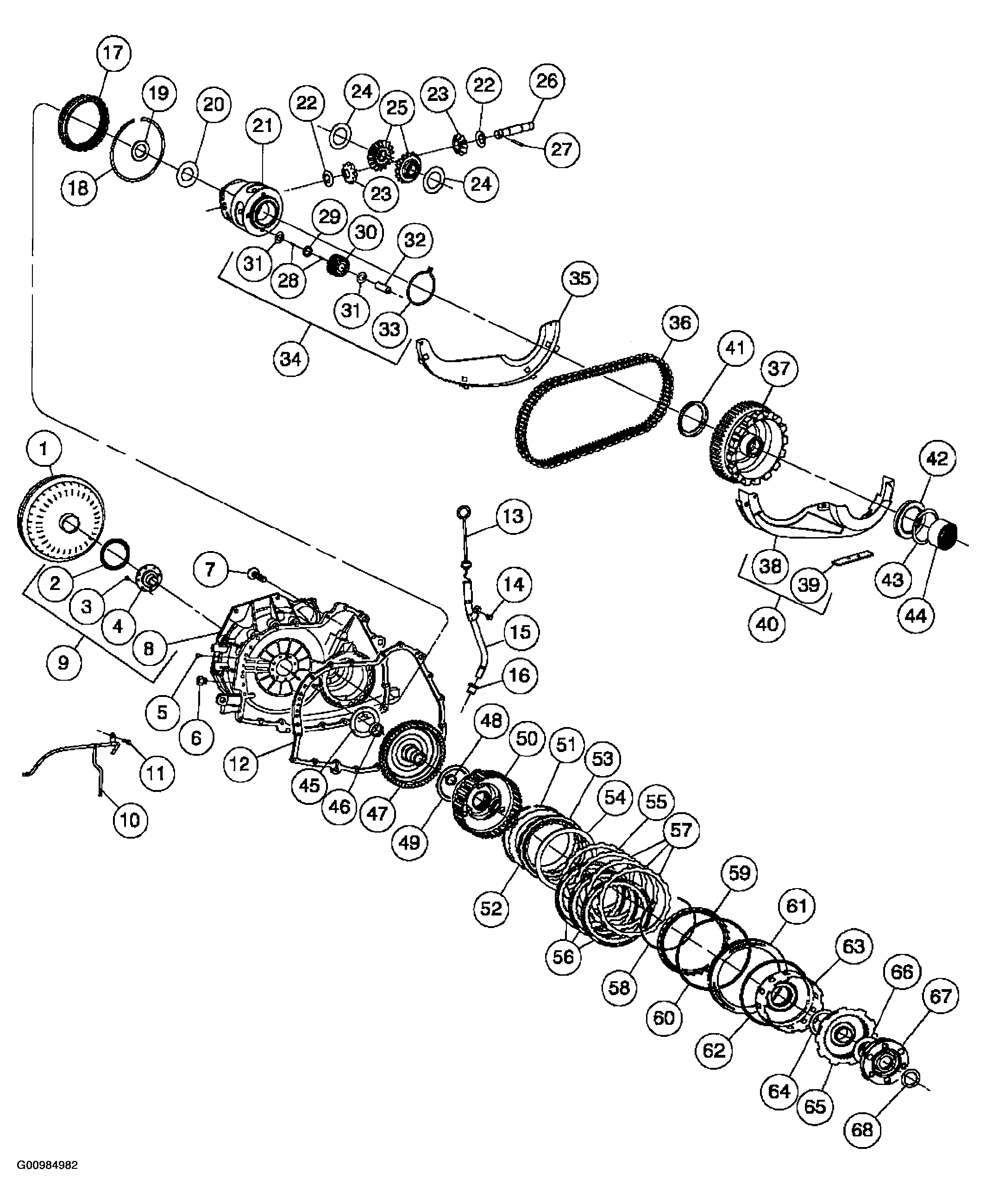

Fig 1: Disassembled View Of Transaxle (1 Of 6)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Disassembled View Of Transaxle (2 Of 6)

Courtesy of MAZDA MOTORS CORP.

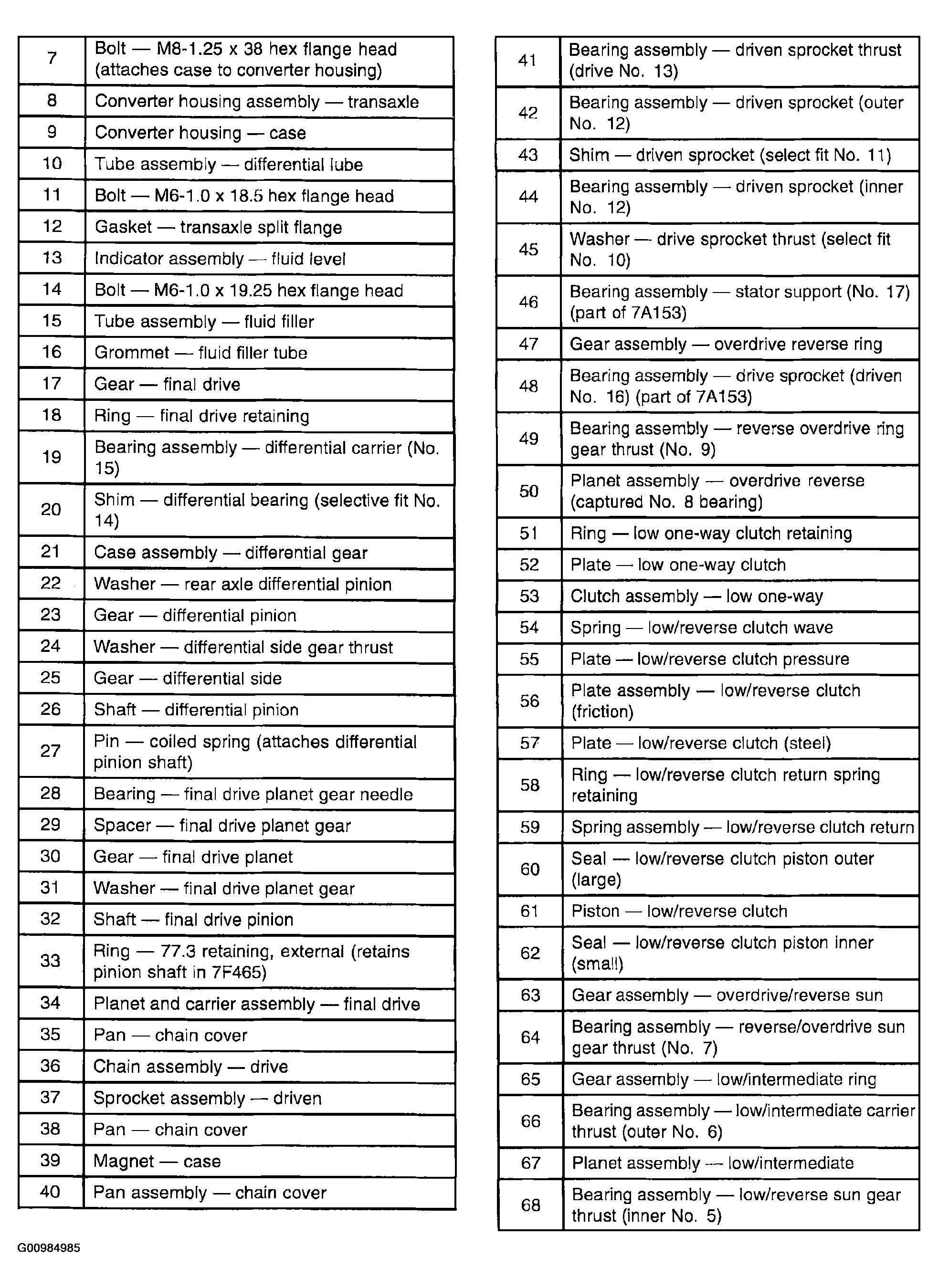

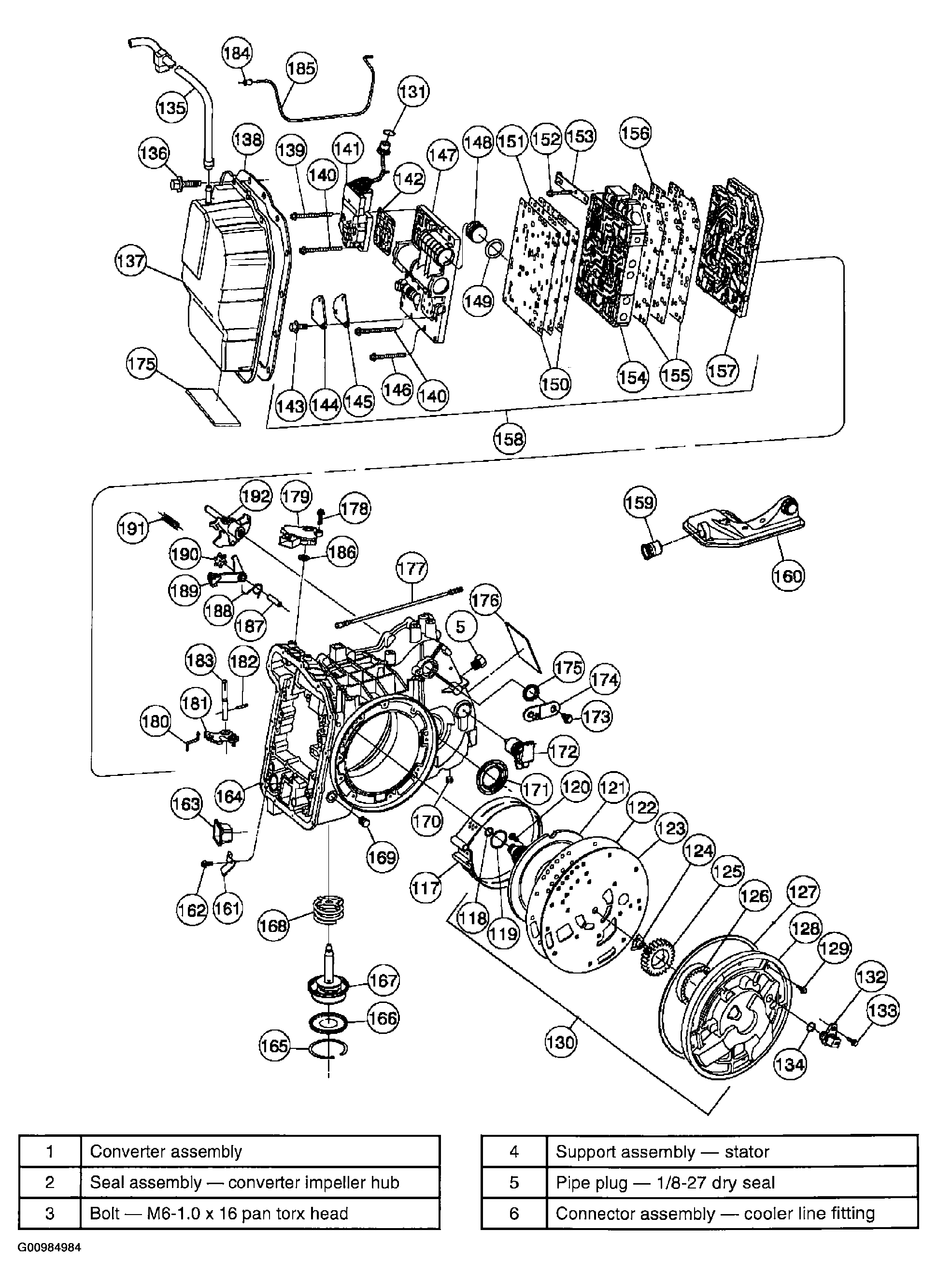

Fig 3: Disassembled View Of Transaxle & Legend (3 Of 6)

Courtesy of MAZDA MOTORS CORP.

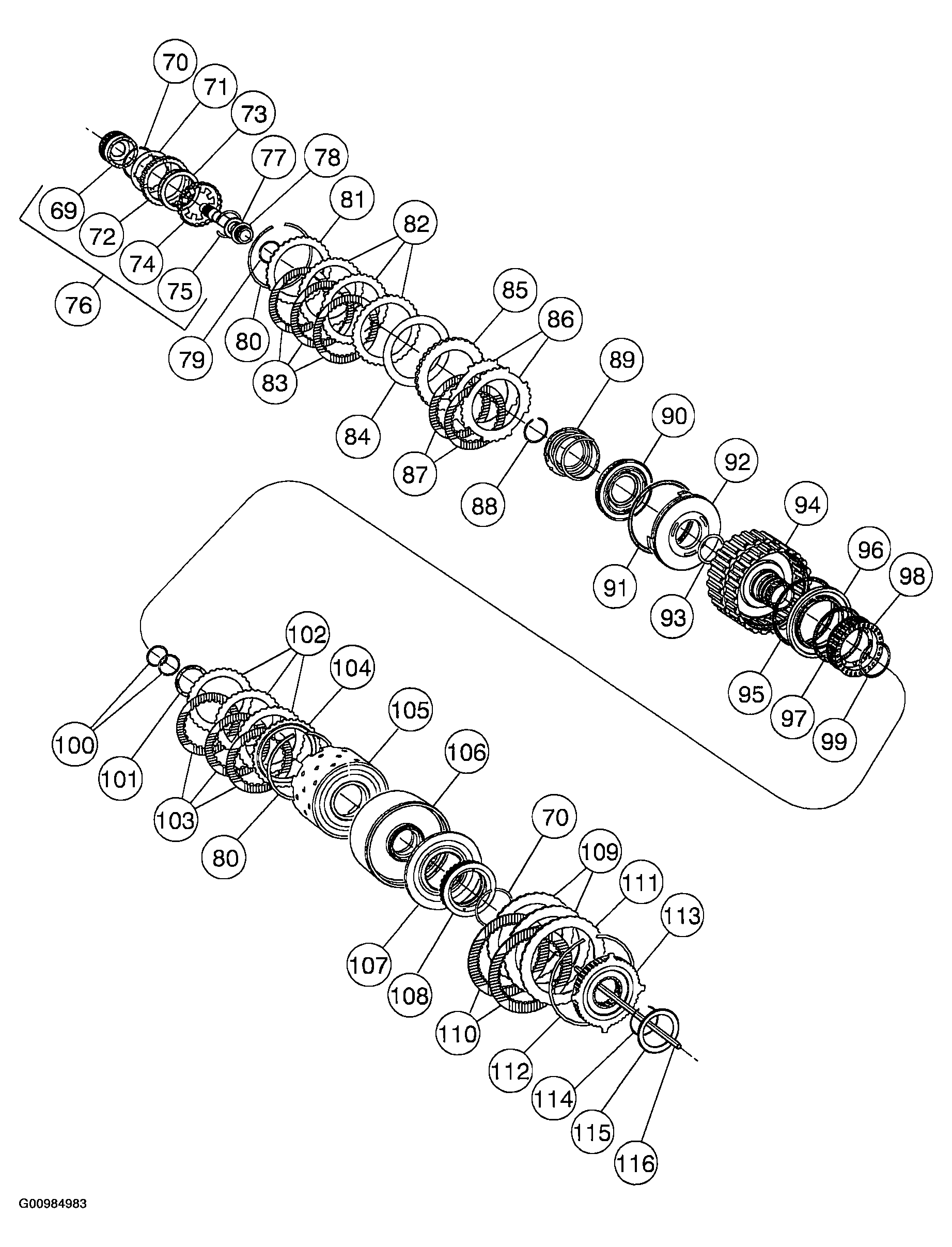

Fig 4: Disassembled View Of Transaxle Legend (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

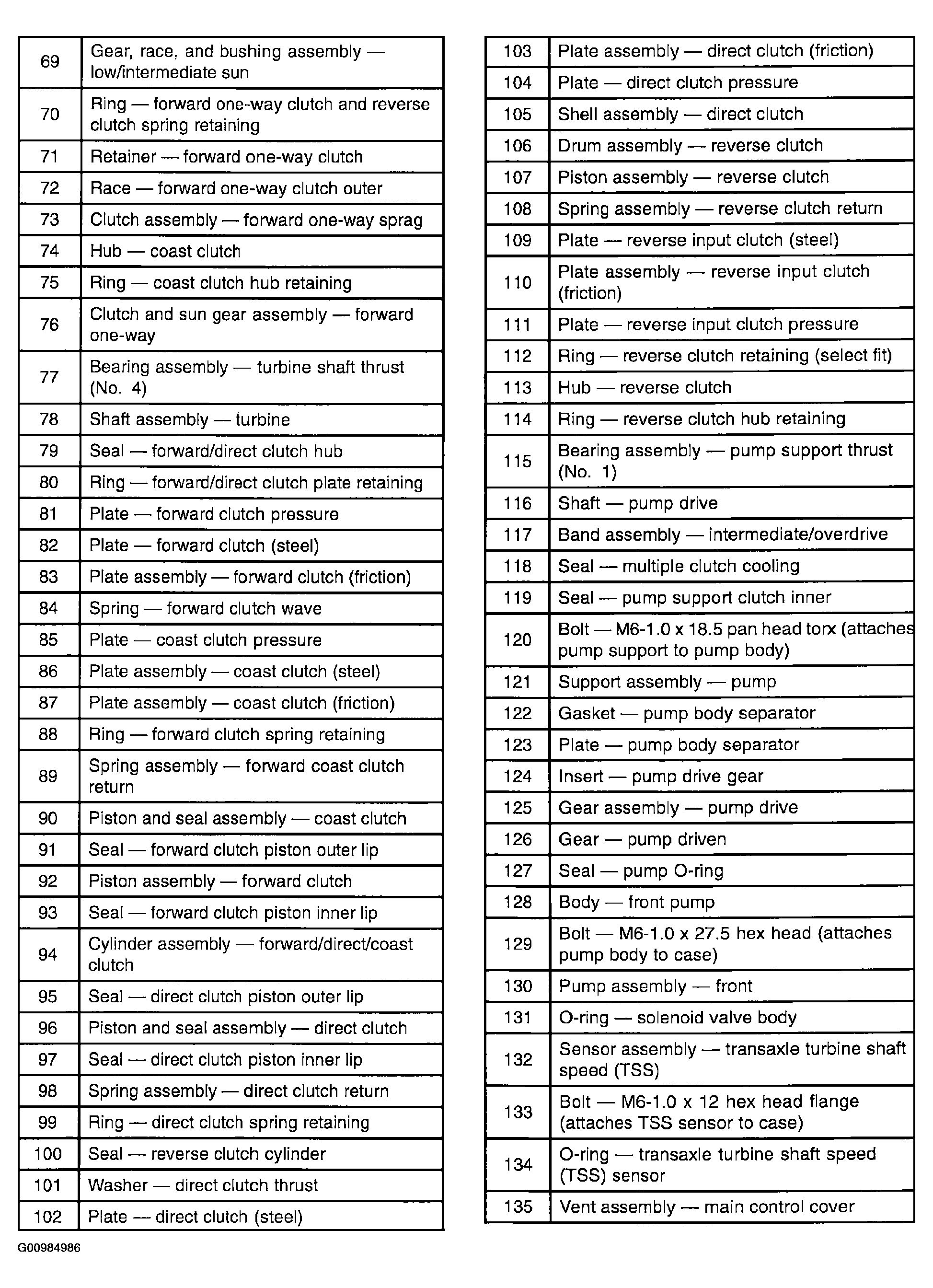

Fig 5: Disassembled View Of Transaxle Legend (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

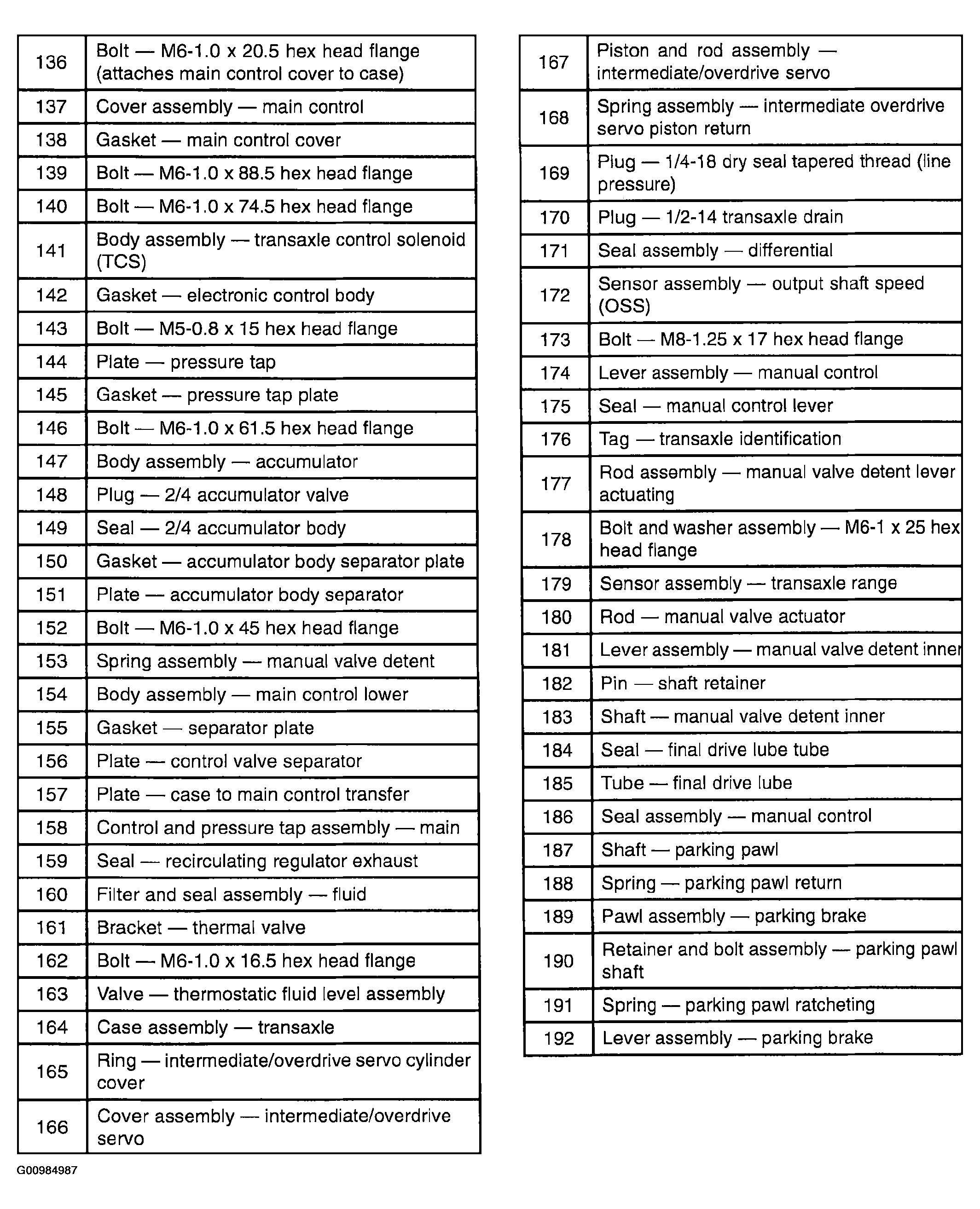

Fig 6: Disassembled View Of Transaxle Legend (1 Of 3)

Courtesy of MAZDA MOTORS CORP.
