Main Control Valve Body: Removal
- Disconnect the battery cables. Refer to
BATTERY DISCONNECT
.
- Remove the battery and tray.

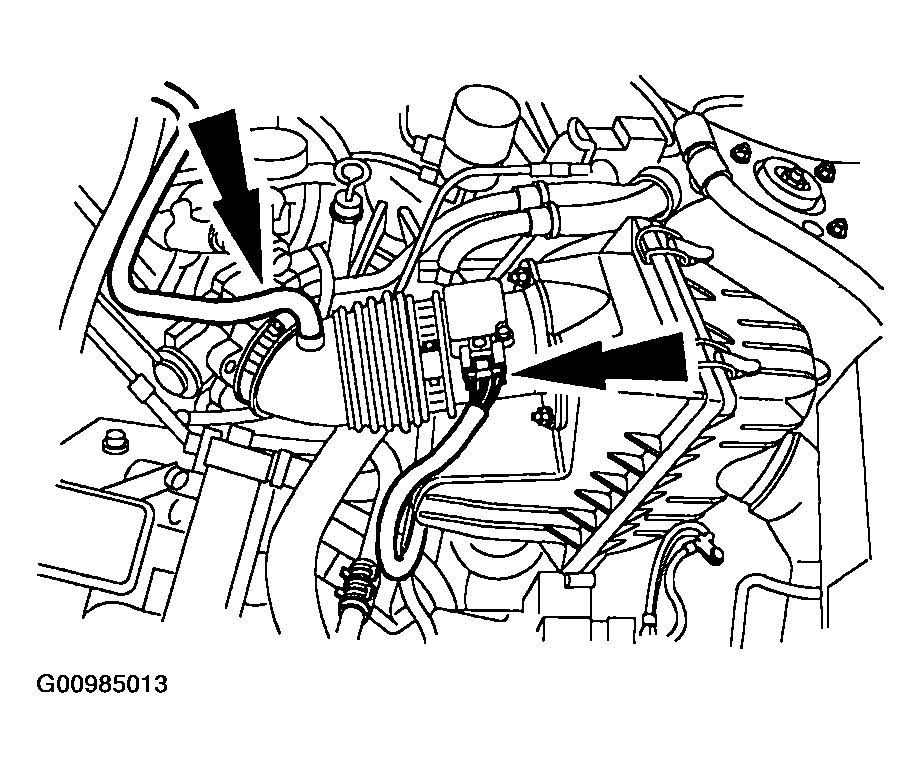

- Disconnect the breather tube and mass air flow (MAF) / intake air temperature (IAT) sensor.
Courtesy of MAZDA MOTORS CORP.

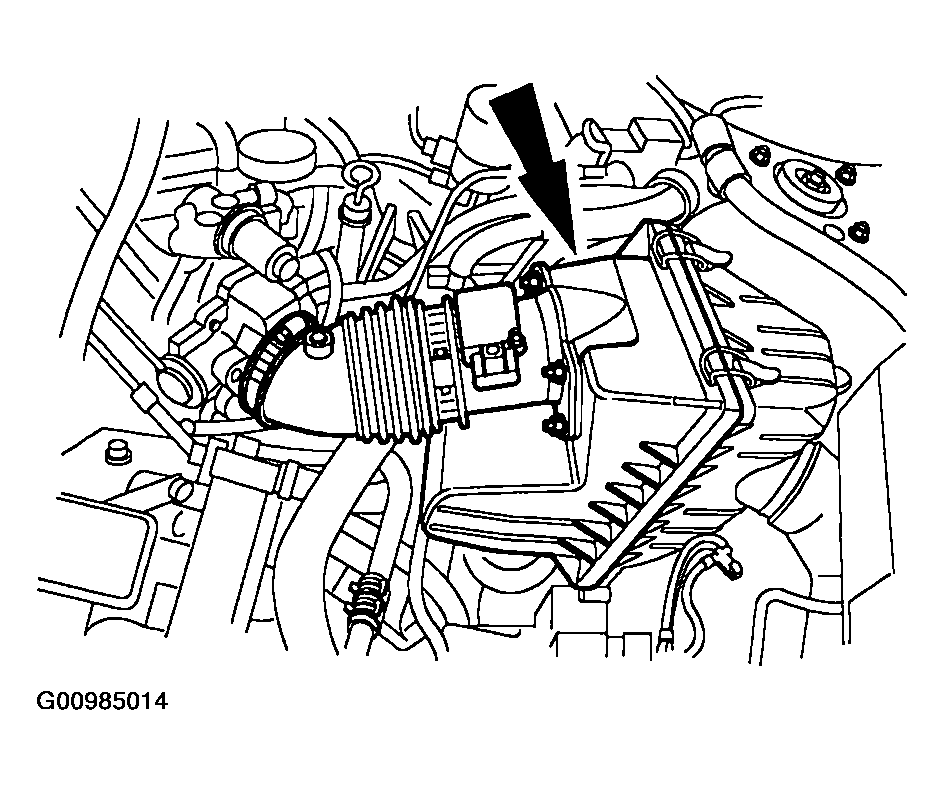

- Remove the intake tube and air cleaner cover.
Courtesy of MAZDA MOTORS CORP.

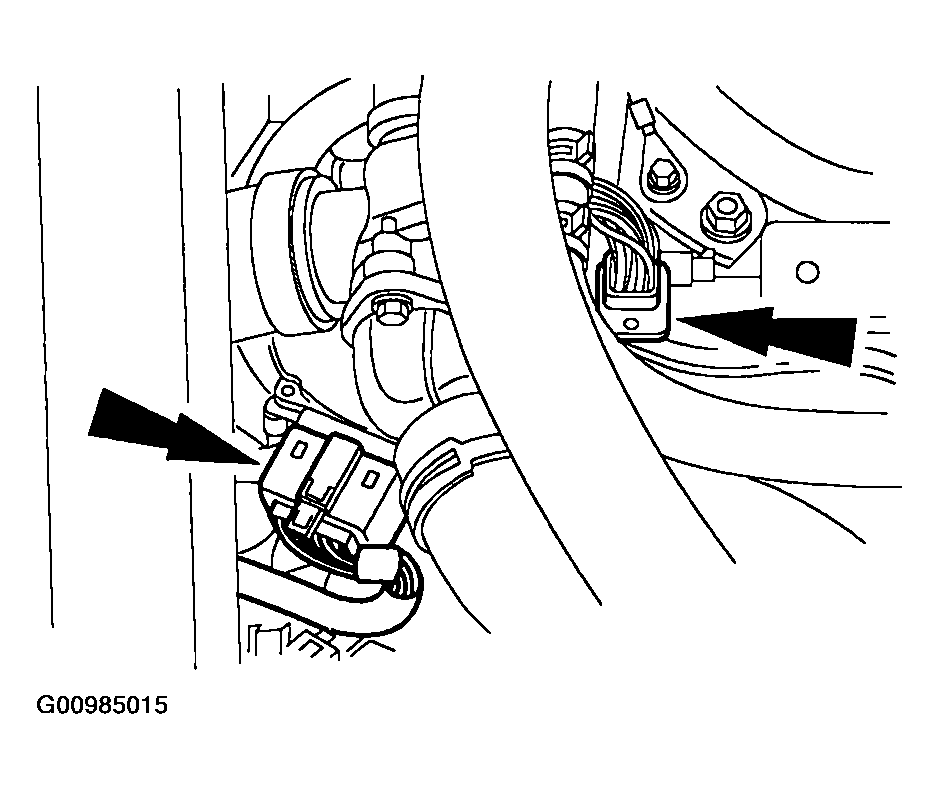

- Disconnect the transaxle wiring harness electrical connector and TR sensor connector.
Courtesy of MAZDA MOTORS CORP.

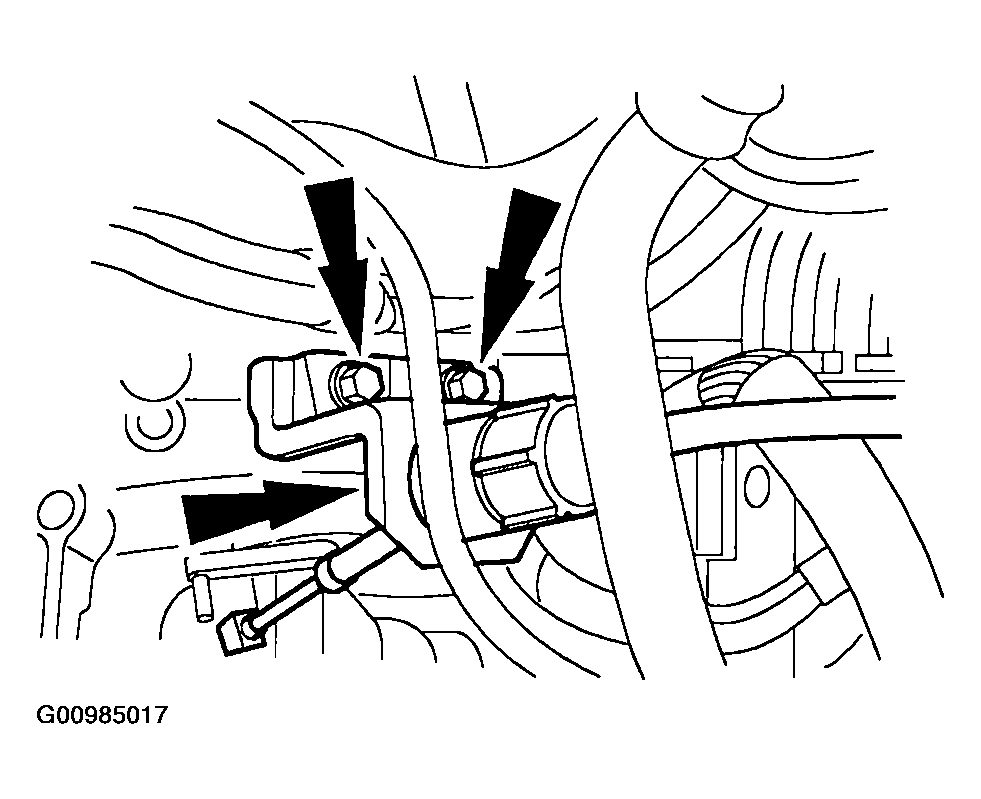

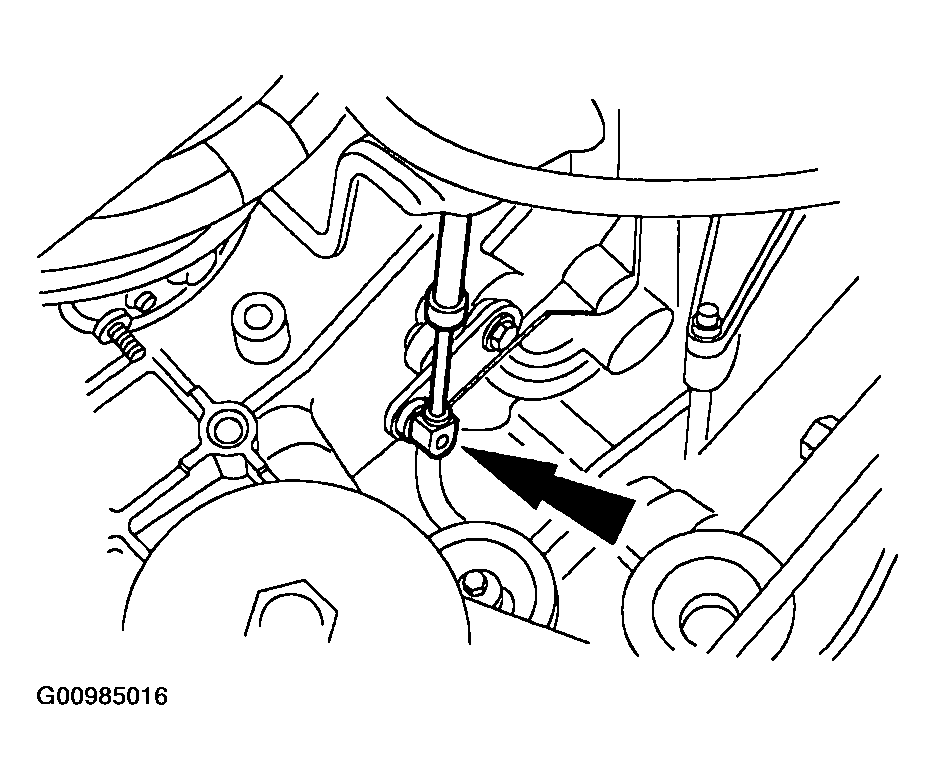

- Disconnect the shift cable.
Courtesy of MAZDA MOTORS CORP.
- Remove the shift cable and bracket, and position out of the way.
Courtesy of MAZDA MOTORS CORP.

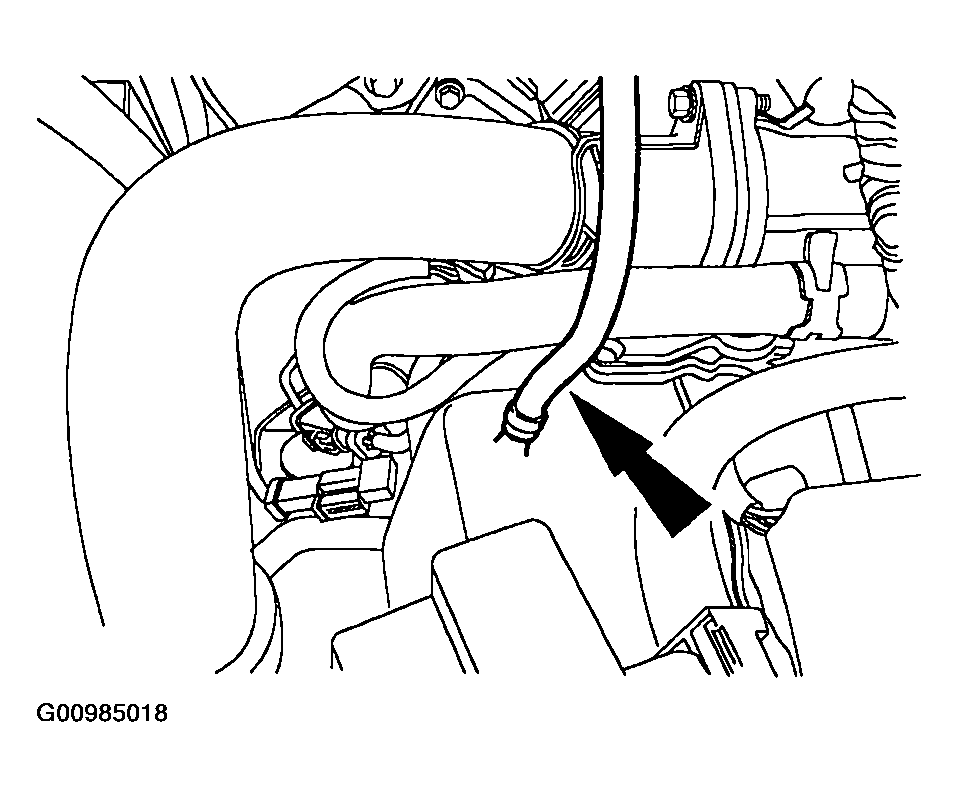

- Remove the vent tube hose.
Courtesy of MAZDA MOTORS CORP.
- Raise and support the vehicle. Refer to
LIFTING
.
- Remove the LH front wheel.

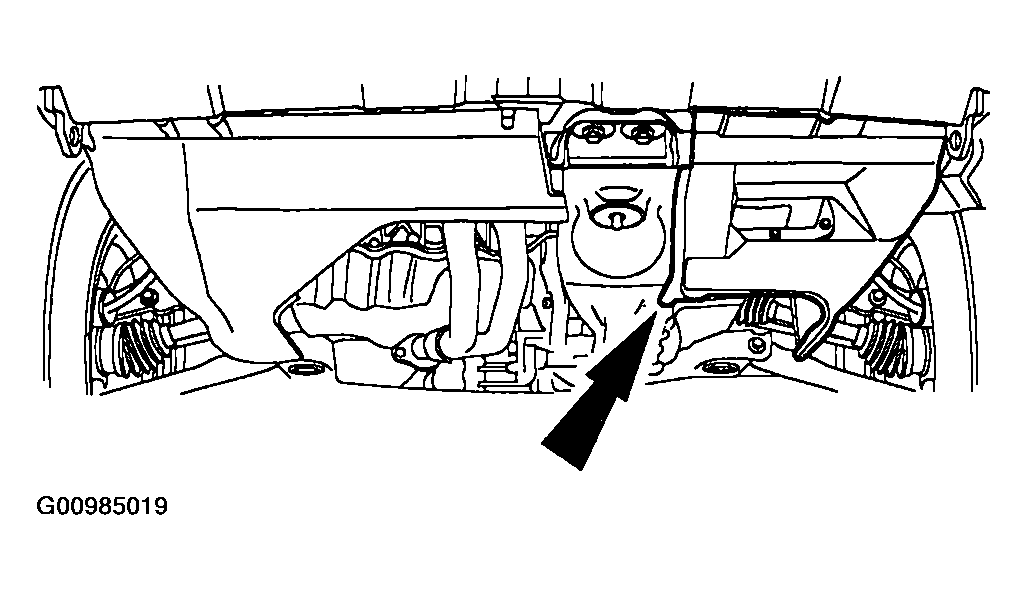

- Remove the splash shield.
Courtesy of MAZDA MOTORS CORP.

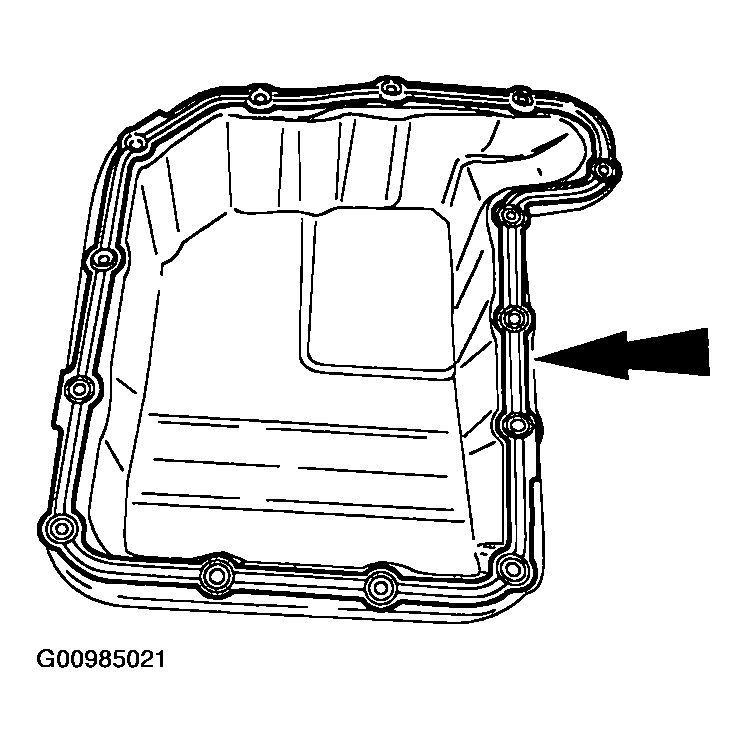

- Remove the main control cover.
Courtesy of MAZDA MOTORS CORP.
- Remove the main control cover gasket.
Courtesy of MAZDA MOTORS CORP.
NOTE:

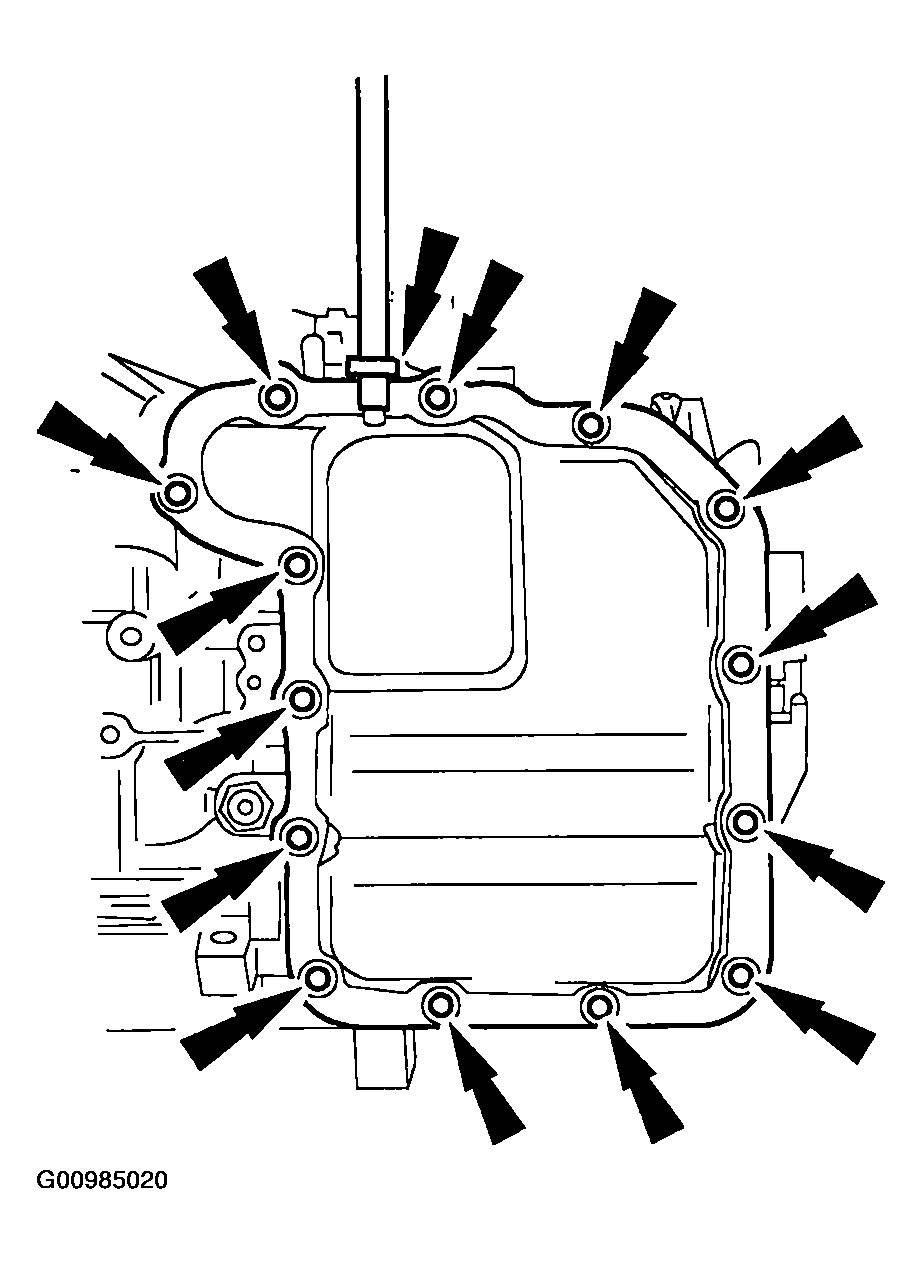

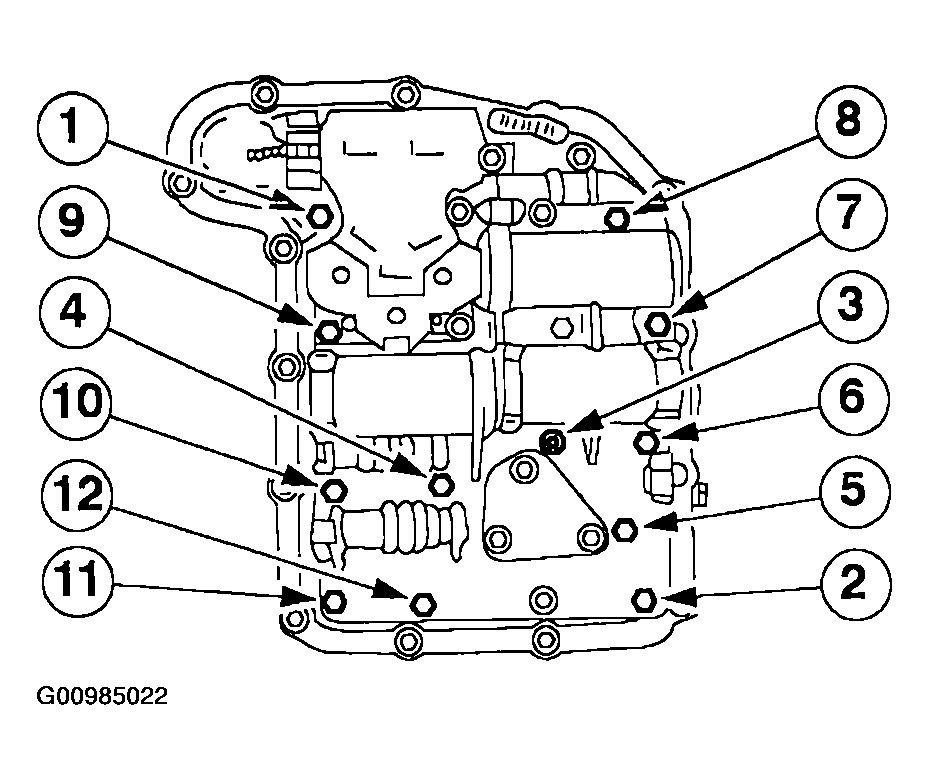

- Remove the bolts in the indicated sequence.
- Remove the main control valve body bolts.
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Do not damage the manual valve.

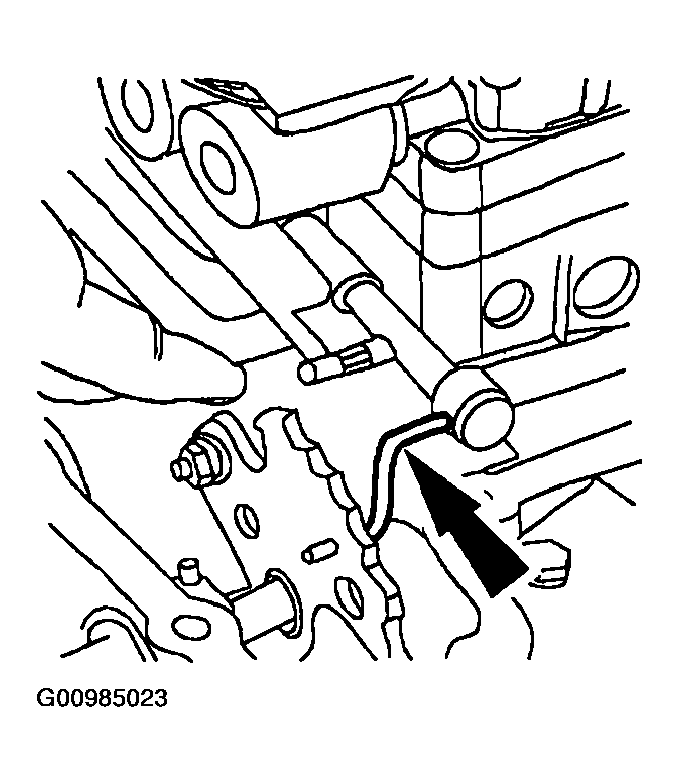

- Lift the main control valve body while disconnecting the manual valve link.
Courtesy of MAZDA MOTORS CORP.

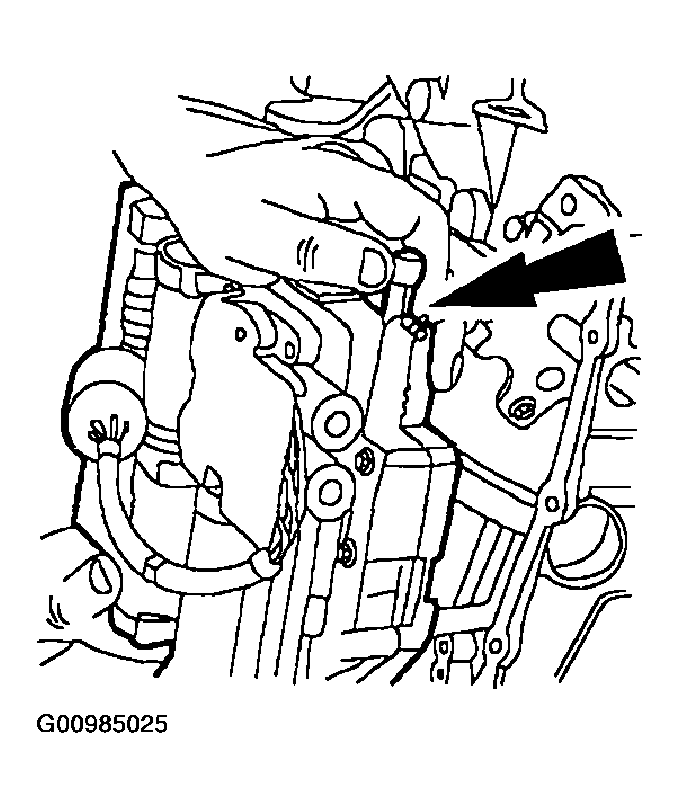

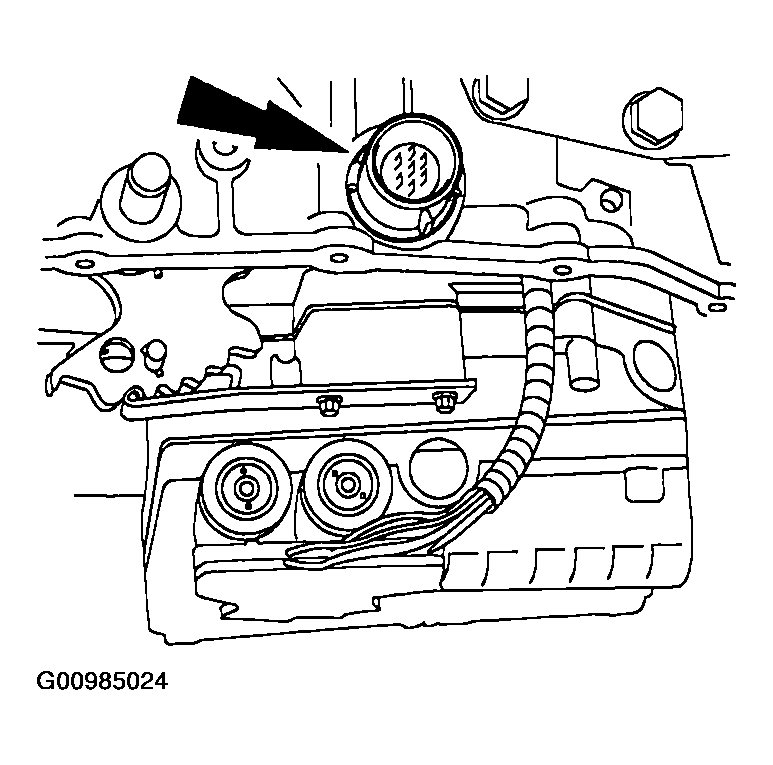

- Depress the retaining tabs and push the solenoid valve body electrical connector down through the transaxle case.
Courtesy of MAZDA MOTORS CORP.
- Make sure the manual valve control lever does not fall out of the main control valve body while removing from the vehicle.
Courtesy of MAZDA MOTORS CORP.
