Output Shaft Speed (OSS) Sensor: Installation

NOTE:
  • Apply a light coat of petroleum jelly to the O-ring before installation.
  1. Install the OSS sensor.
    1. Connect the OSS sensor electrical connector.

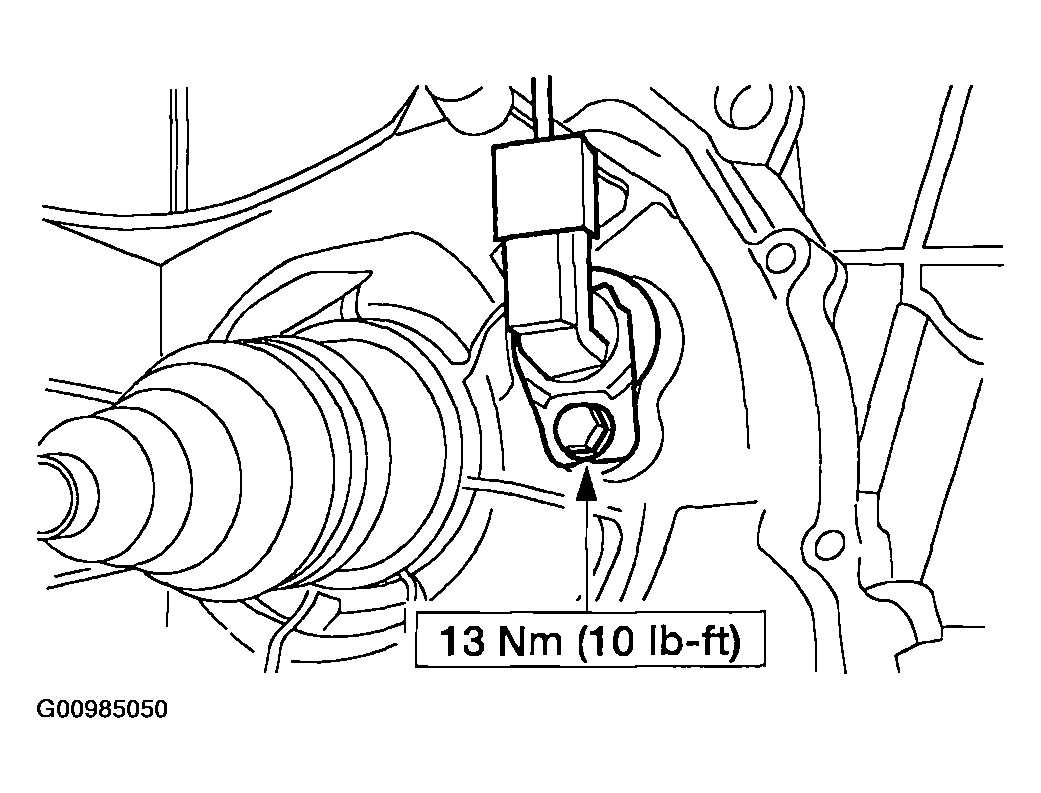

    Fig 1: Installing OSS Sensor
    G00985050Courtesy of MAZDA MOTORS CORP.
  2. Install the splash shield.

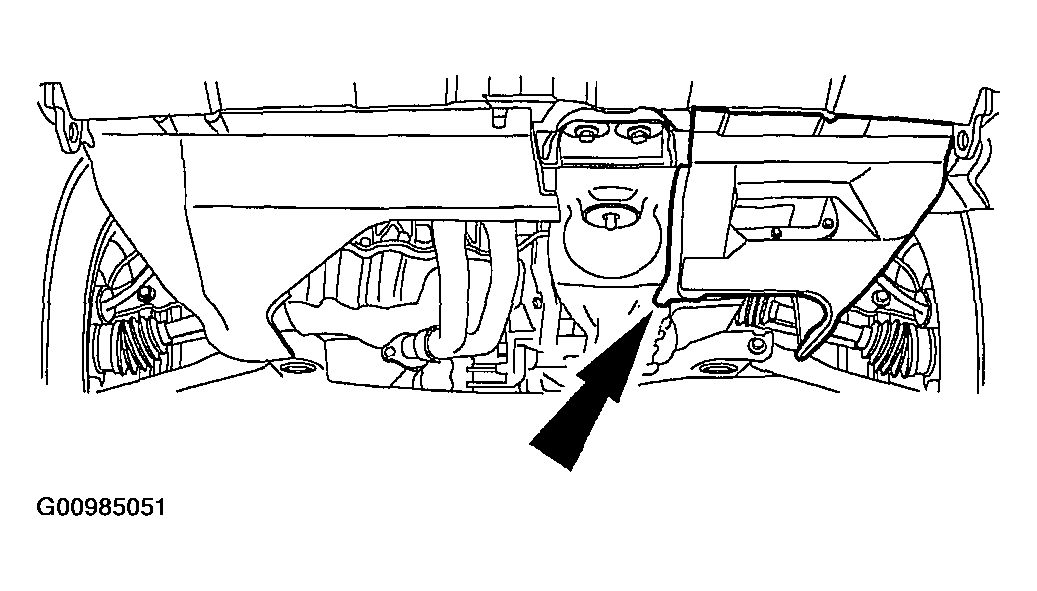

    Fig 2: Identifying Splash Shield
    G00985051Courtesy of MAZDA MOTORS CORP.
  3. Install the LH front wheel.
  4. Lower vehicle.
  5. Check the transaxle fluid level, add fluid as necessary using MERCON (R) Multi-Purpose (ATF) Transaxle Fluid.
  6. Start the engine and move the transaxle range selector lever through all gear positions.
