Reverse Clutch: Notes

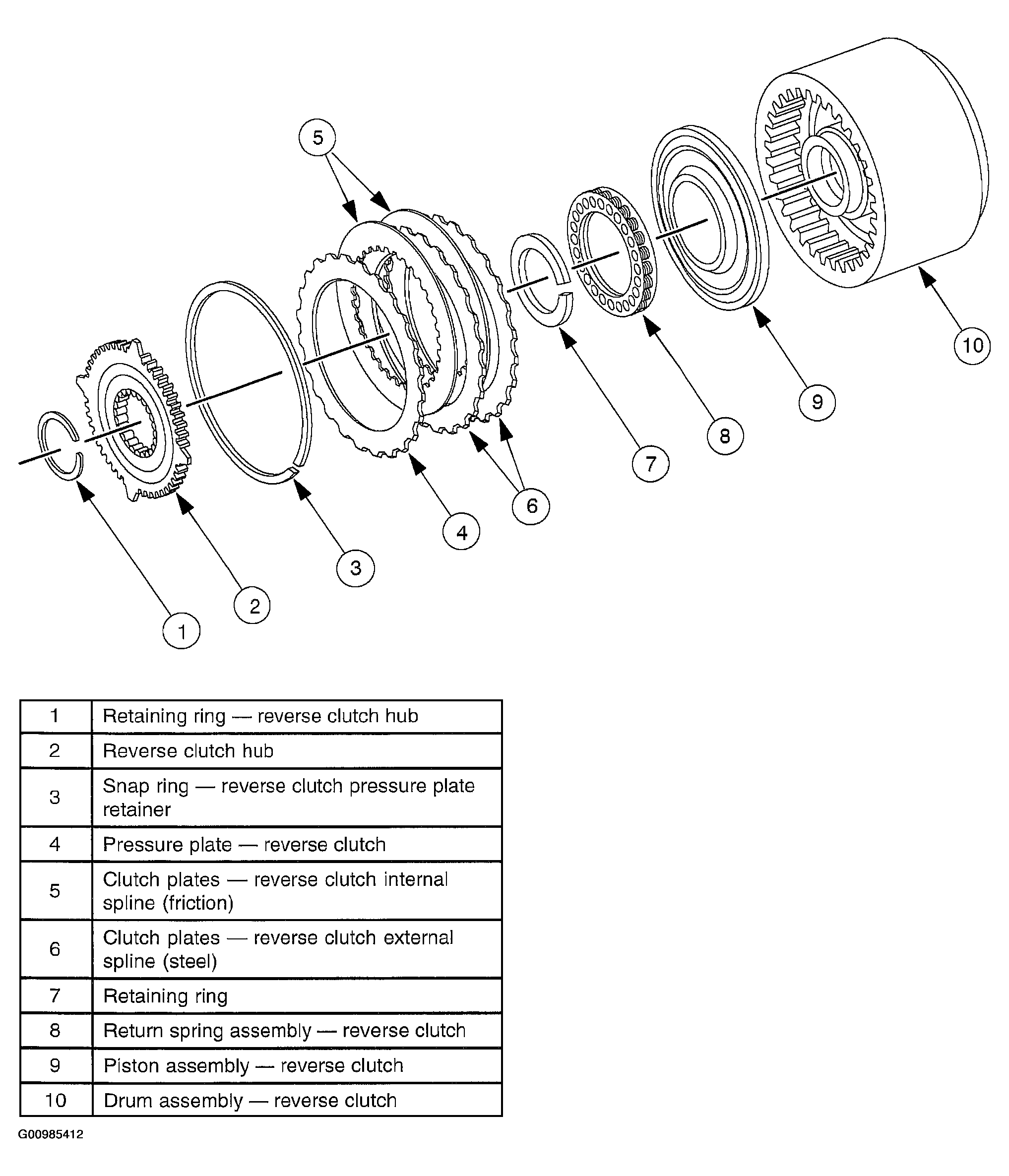

Fig 1: Exploded View Of Reverse Clutch
G00985412Courtesy of MAZDA MOTORS CORP.
