Torque Converter Insert Check: Inspection

Install the oil pump drive shaft into the torque converter.

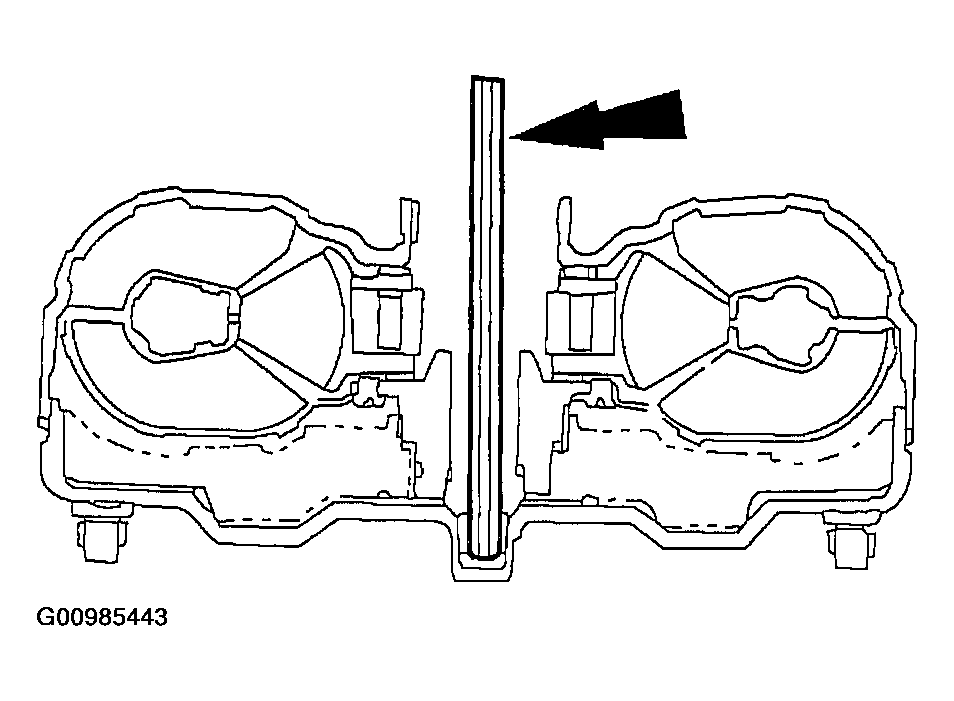

Fig 1: Installing Oil Pump Drive Shaft Into Torque Converter
Courtesy of MAZDA MOTORS CORP.
Install a torque wrench with a 5/16 Allen head socket attached on the oil pump drive shaft.

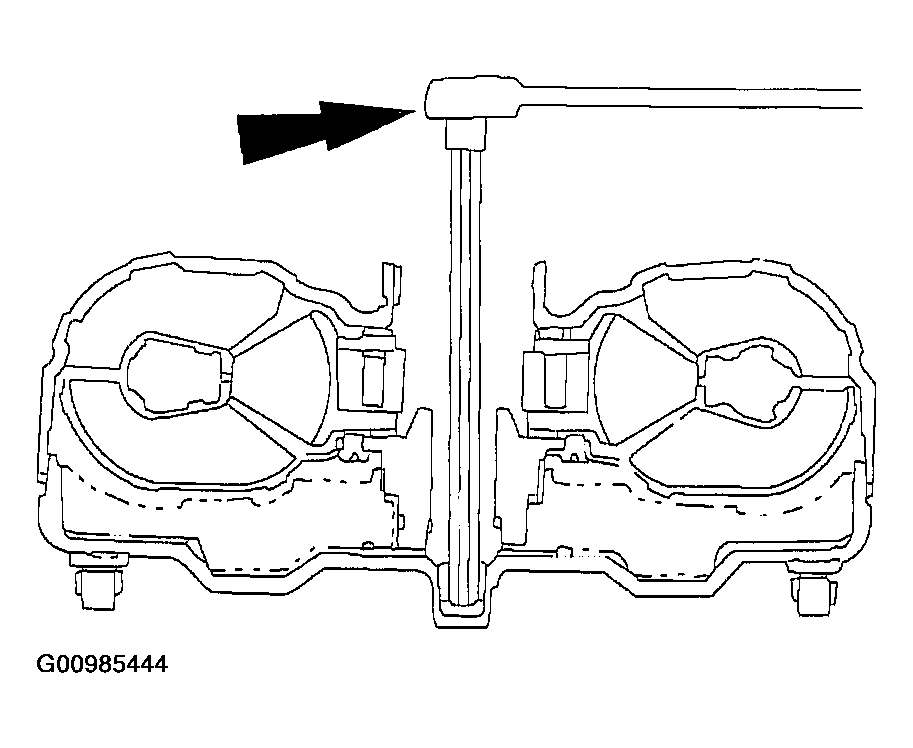

Fig 2: Installing Torque Wrench With A 5/16 Allen Head Socket Attached On Oil Pump Drive Shaft
Courtesy of MAZDA MOTORS CORP.
Verify that the insert can hold torque.

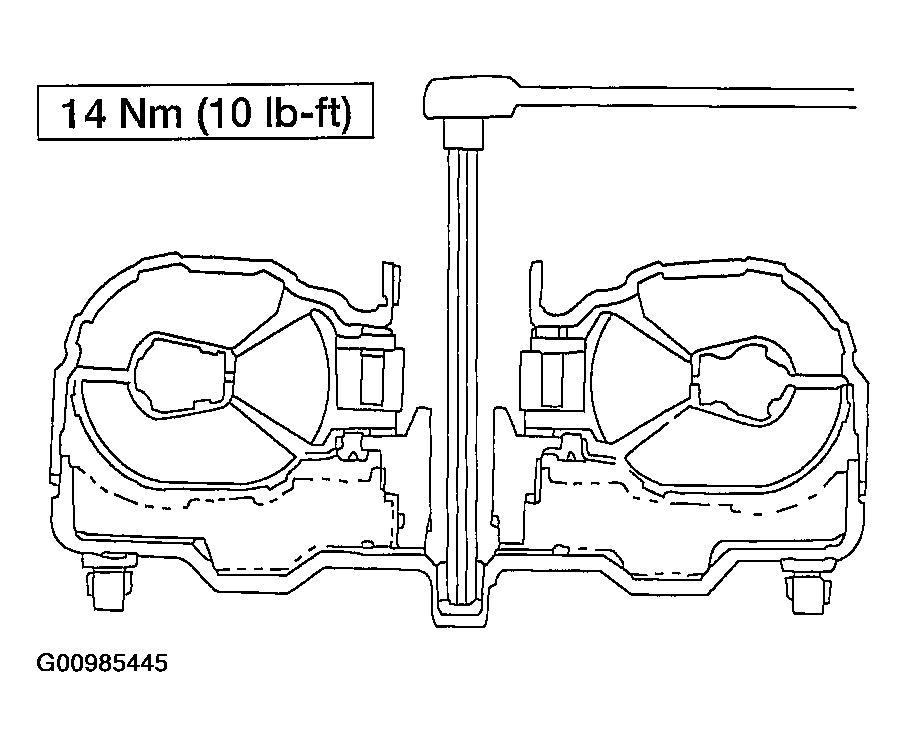

Fig 3: Verifying Insert Can Hold Torque
Courtesy of MAZDA MOTORS CORP.
If the insert cannot hold the specified torque, install a new torque converter.
