Transaxle Range (Tr) Sensor: Installation

NOTE:
  • Make sure the transaxle is in the NEUTRAL position.
  1. Install the transaxle range (TR) sensor and loosely install the bolts.

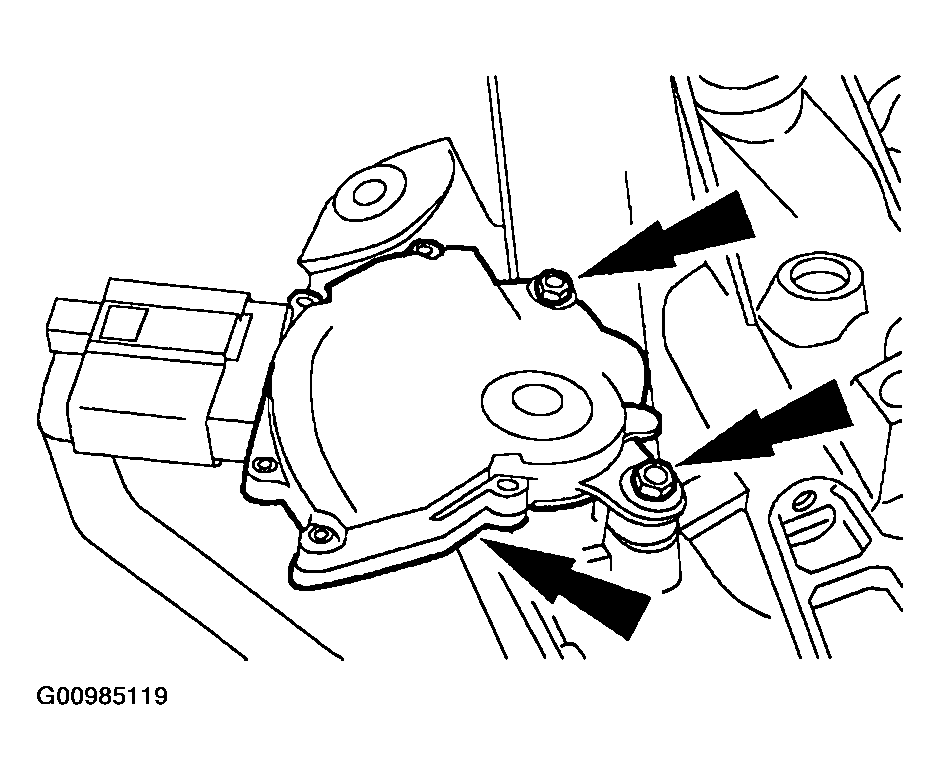

    Fig 1: Installing Transaxle Range (TR) Sensor
    G00985119Courtesy of MAZDA MOTORS CORP.
  2. Using the special tool, align the TR sensor and tighten the bolts.

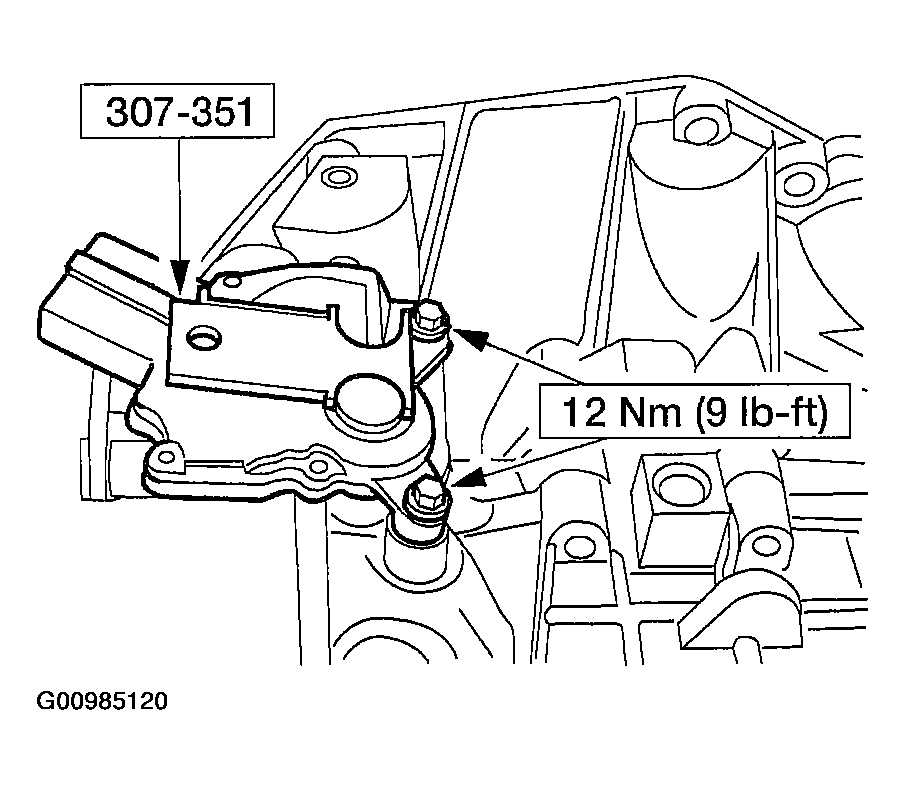

    Fig 2: Aligning TR Sensor
    G00985120Courtesy of MAZDA MOTORS CORP.
    1. Connect the electrical connector.
    NOTE:
    • Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.
  3. Install the battery and tray.
  4. Check the correct operation with parking brake control engaged. The engine should start only in PARK or NEUTRAL. Backup lamps should be active only in the REVERSE position.
