Transaxle Range (Tr) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to LIFTING .
  2. Remove the battery and tray.
  3. Remove the transaxle range (TR) sensor.
    1. Disconnect the TR sensor electrical connector.
    2. Remove the bolts.
    3. Remove the TR sensor.

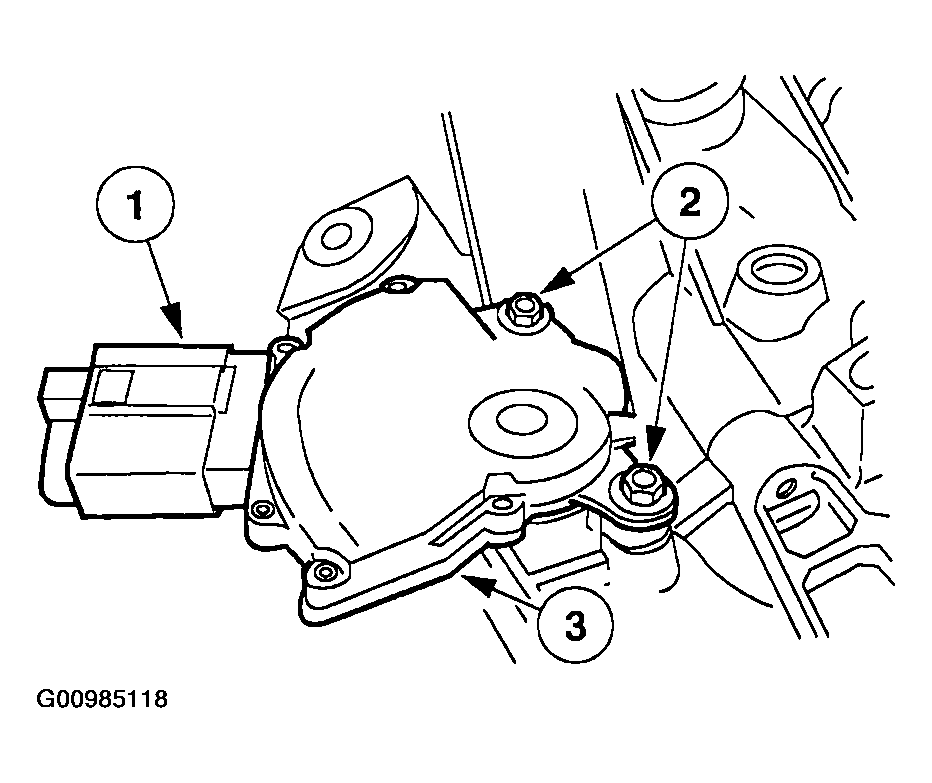

    Fig 1: Removing Transaxle Range (TR) Sensor
    G00985118Courtesy of MAZDA MOTORS CORP.
