Transaxle Support Insulator - LH: Installation

Install the top and bottom mount cups.

Fig 1: Identifying Top And Bottom Mount Cups
Courtesy of MAZDA MOTORS CORP.
Install the upper transaxle insulator.

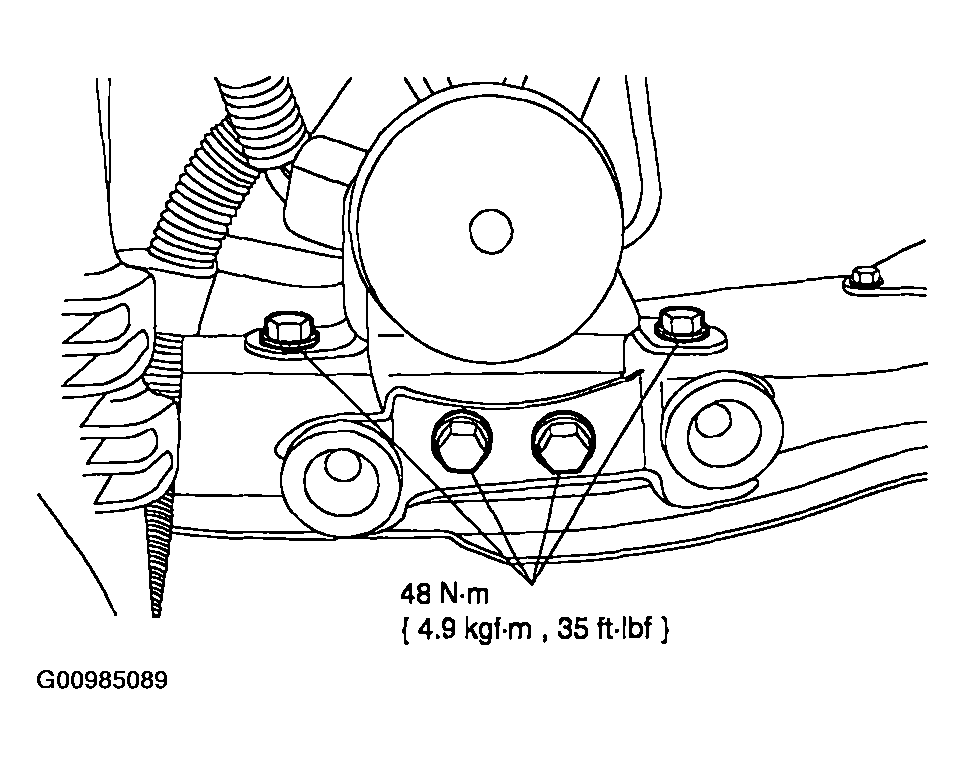

Fig 2: Installing Upper Transaxle Insulator
Courtesy of MAZDA MOTORS CORP.
Install the upper transaxle bolt.

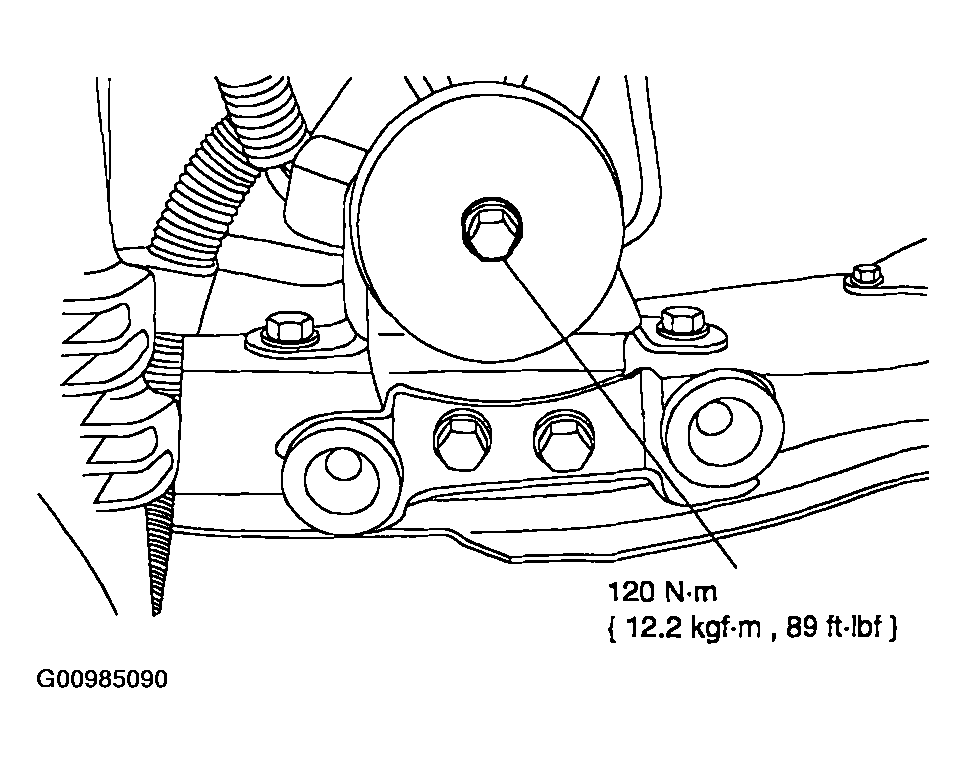

Fig 3: Installing Upper Transaxle Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the special tool.

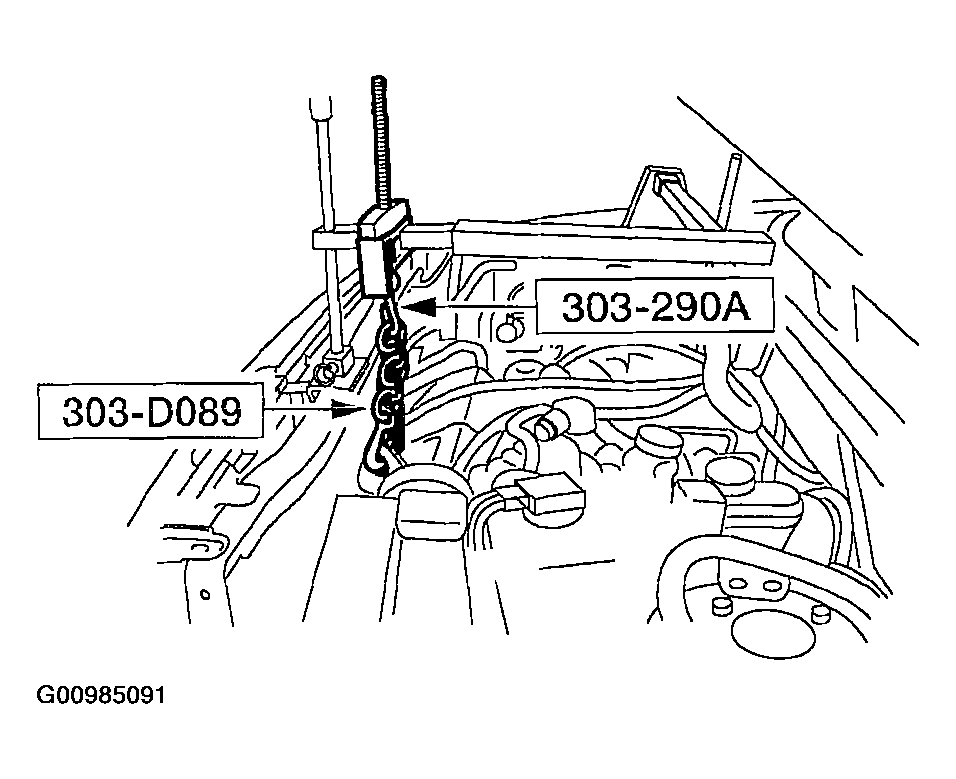

Fig 4: Identifying Special Tool (303-290A & 303-D089)
Courtesy of MAZDA MOTORS CORP.
Remove the special tool.

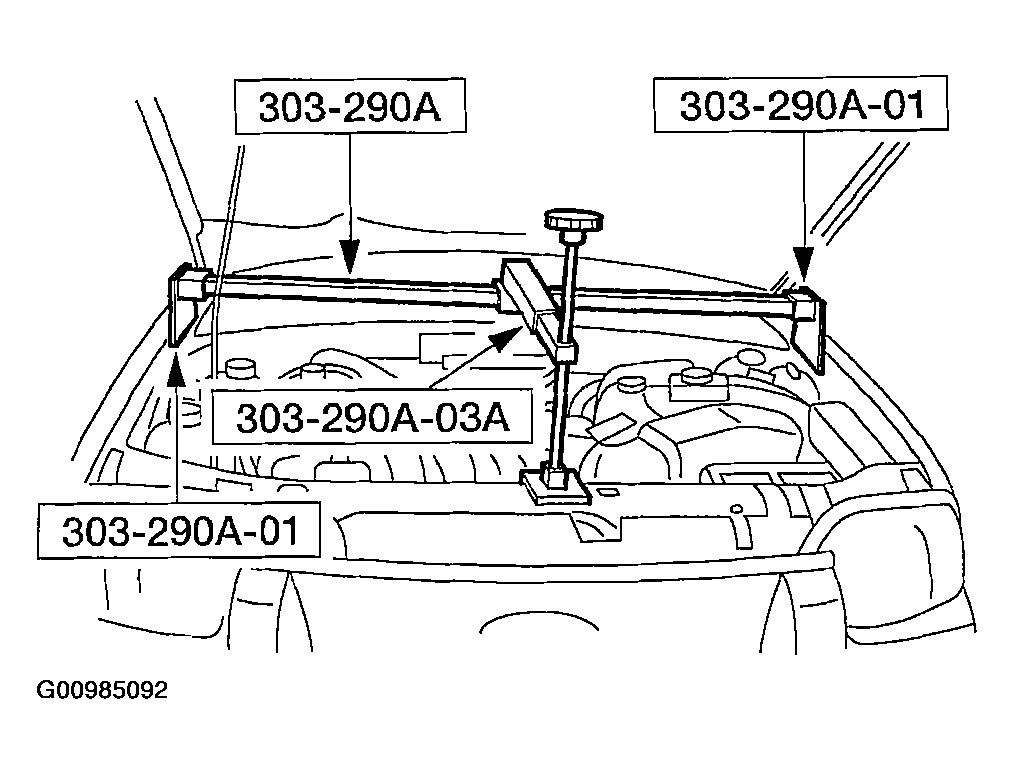

Fig 5: Removing Special Tool From Engine (303-290A, 303-290A-01 & 303-290A-03A)
Courtesy of MAZDA MOTORS CORP.
Install the air cleaner assembly.

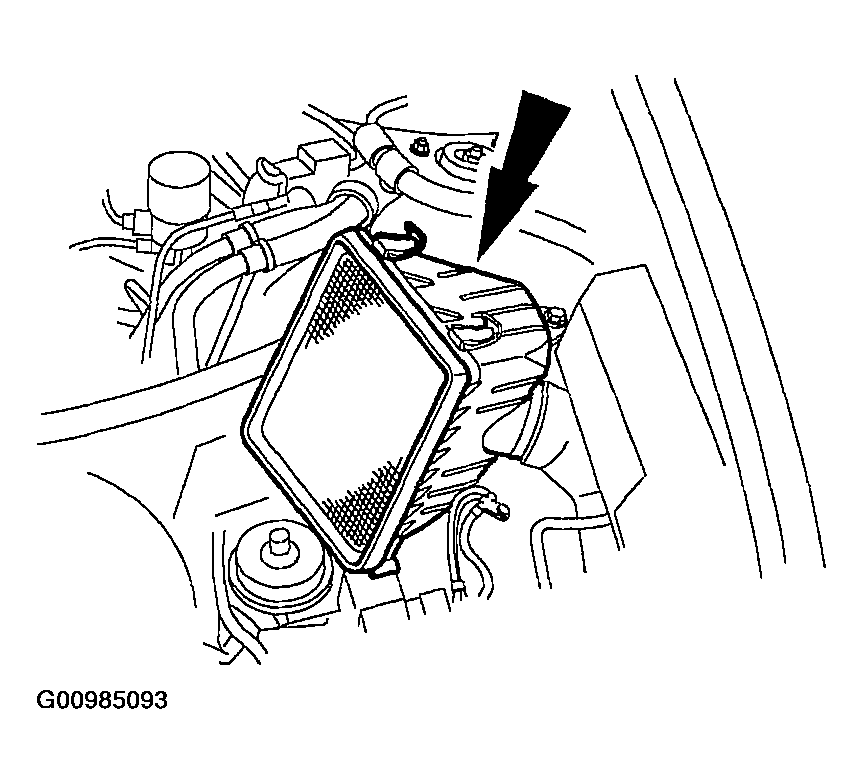

Fig 6: Identifying Air Cleaner Assembly
Courtesy of MAZDA MOTORS CORP.
Install the intake tube and air cleaner cover.

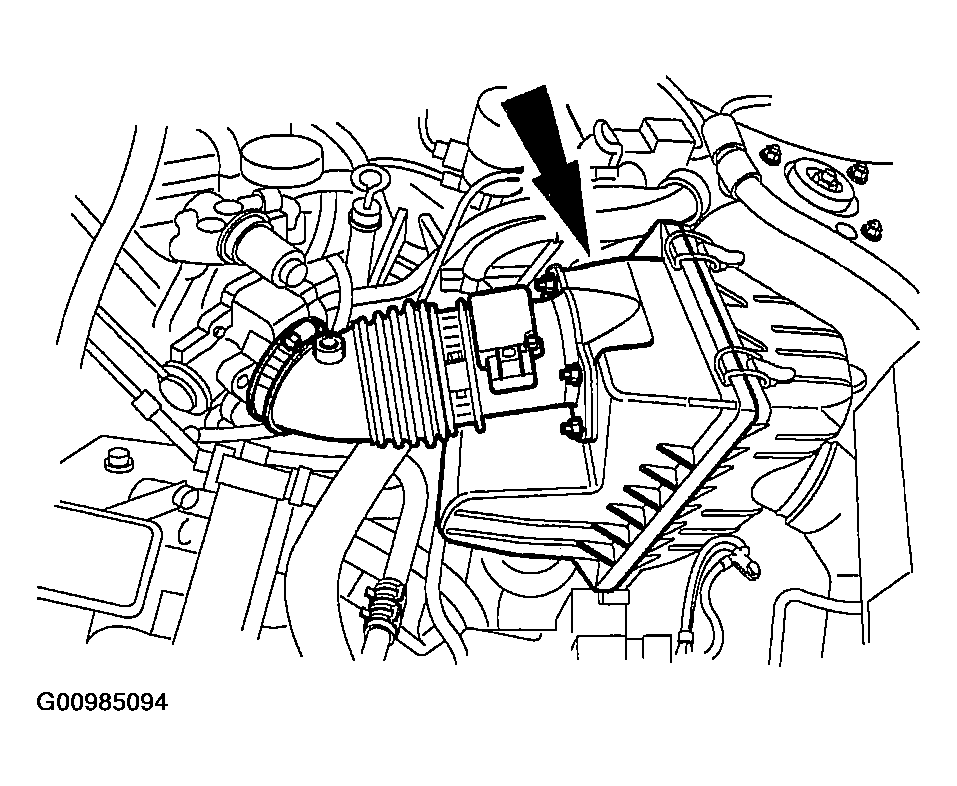

Fig 7: Identifying Intake Tube & Air Cleaner Cover
Courtesy of MAZDA MOTORS CORP.
Connect the breather tube and mass air flow (MAF) sensor.

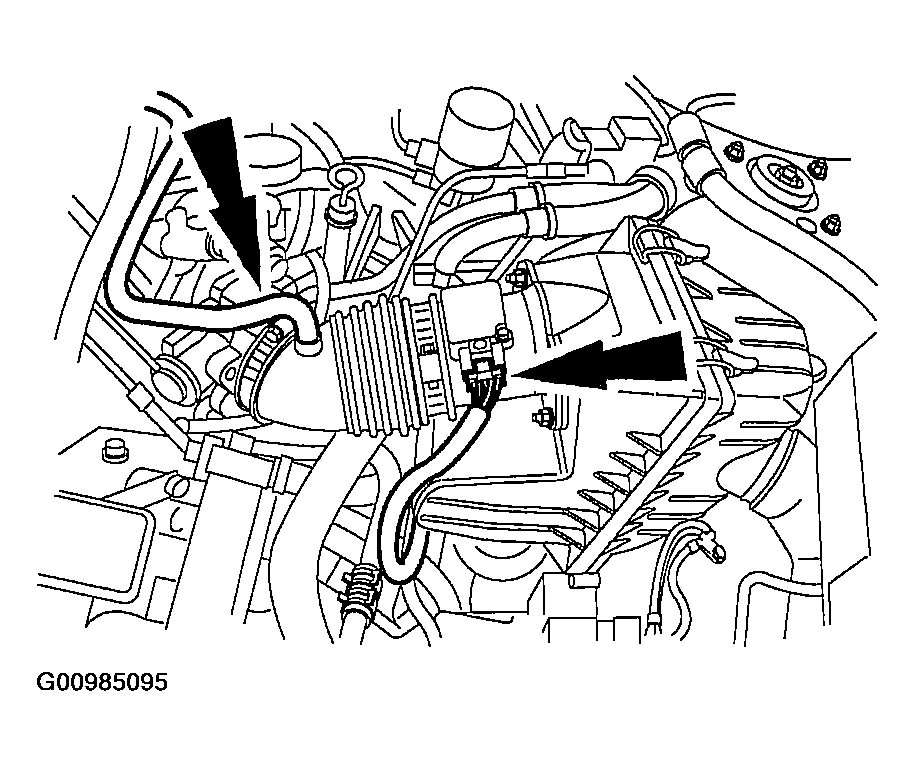

Fig 8: Identifying Breather Tube & Mass Air Flow (MAF) Sensor
Courtesy of MAZDA MOTORS CORP.
