Test 10: Fuel Injector Inspection

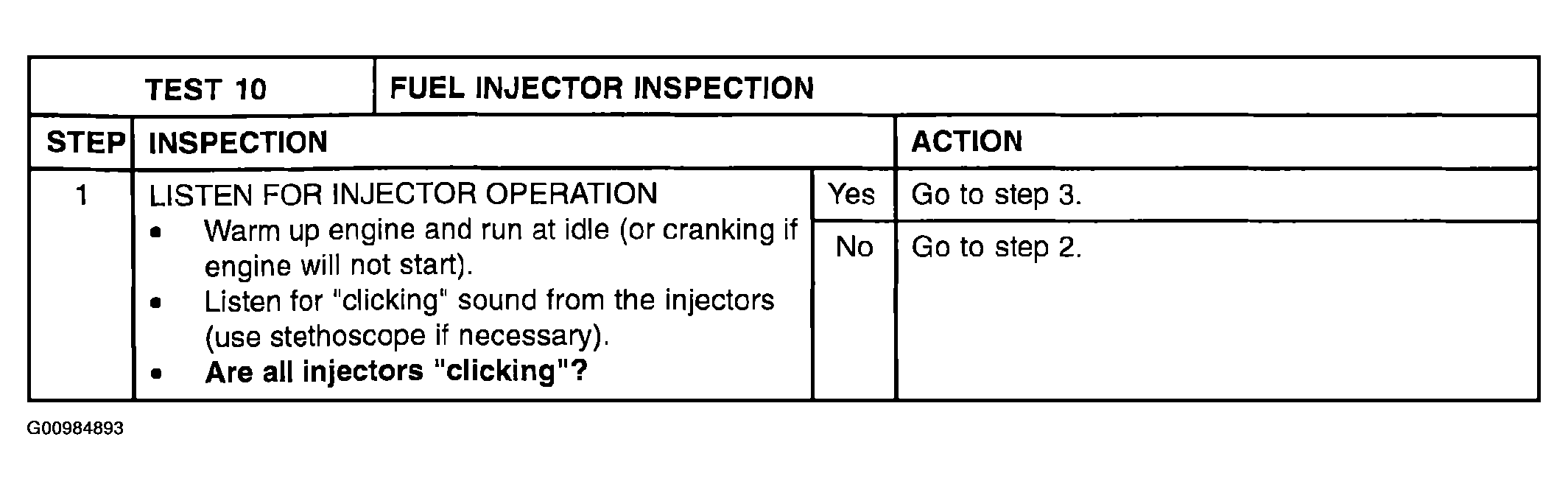

Fig 1: Test 10: Fuel Injector Inspection (Step 1)
G00984893Courtesy of MAZDA MOTORS CORP.

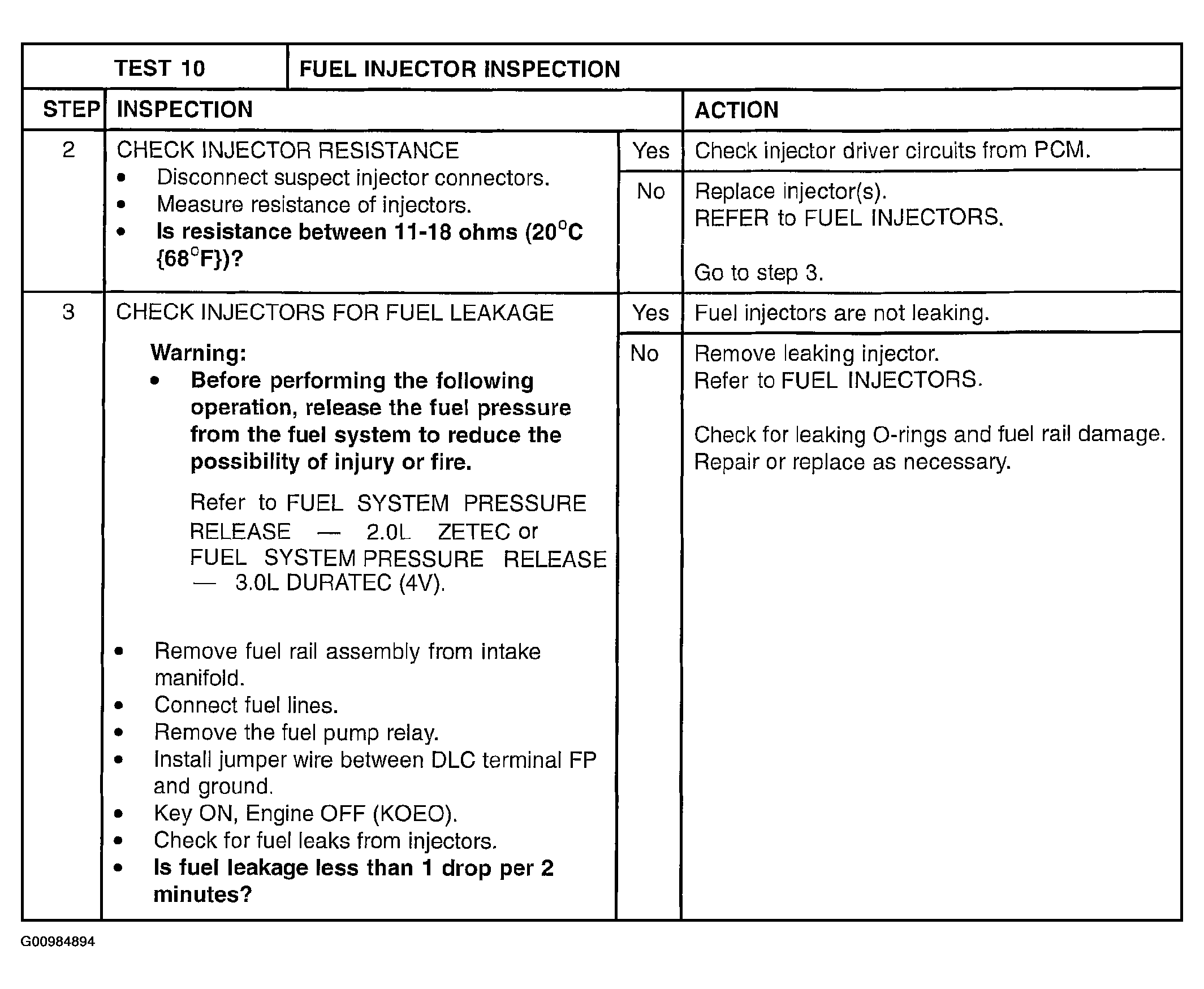

Fig 2: Test 10: Fuel Injector Inspection (Steps 2-3)
G00984894Courtesy of MAZDA MOTORS CORP.
