Test 14: No Start
Test 14: No Start

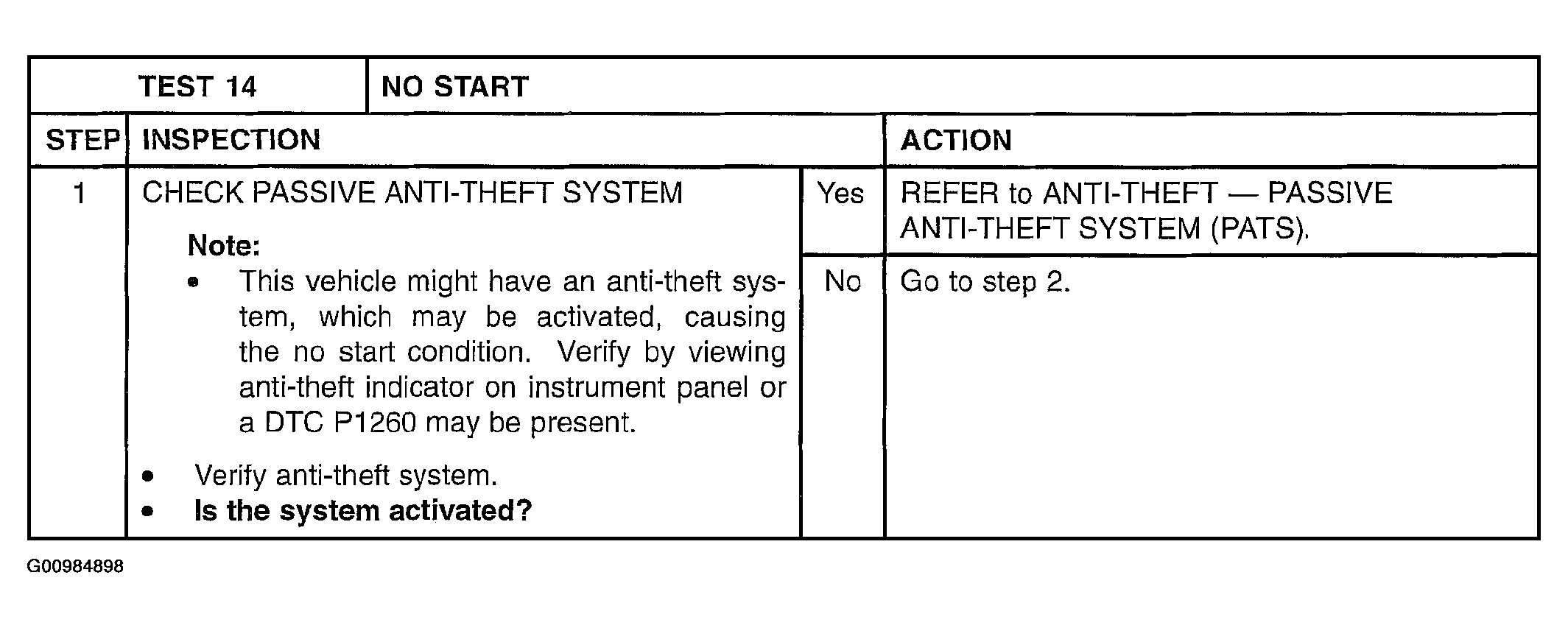

Fig 1: Test 14: No Start: Inspection (Step 1)
Courtesy of MAZDA MOTORS CORP.

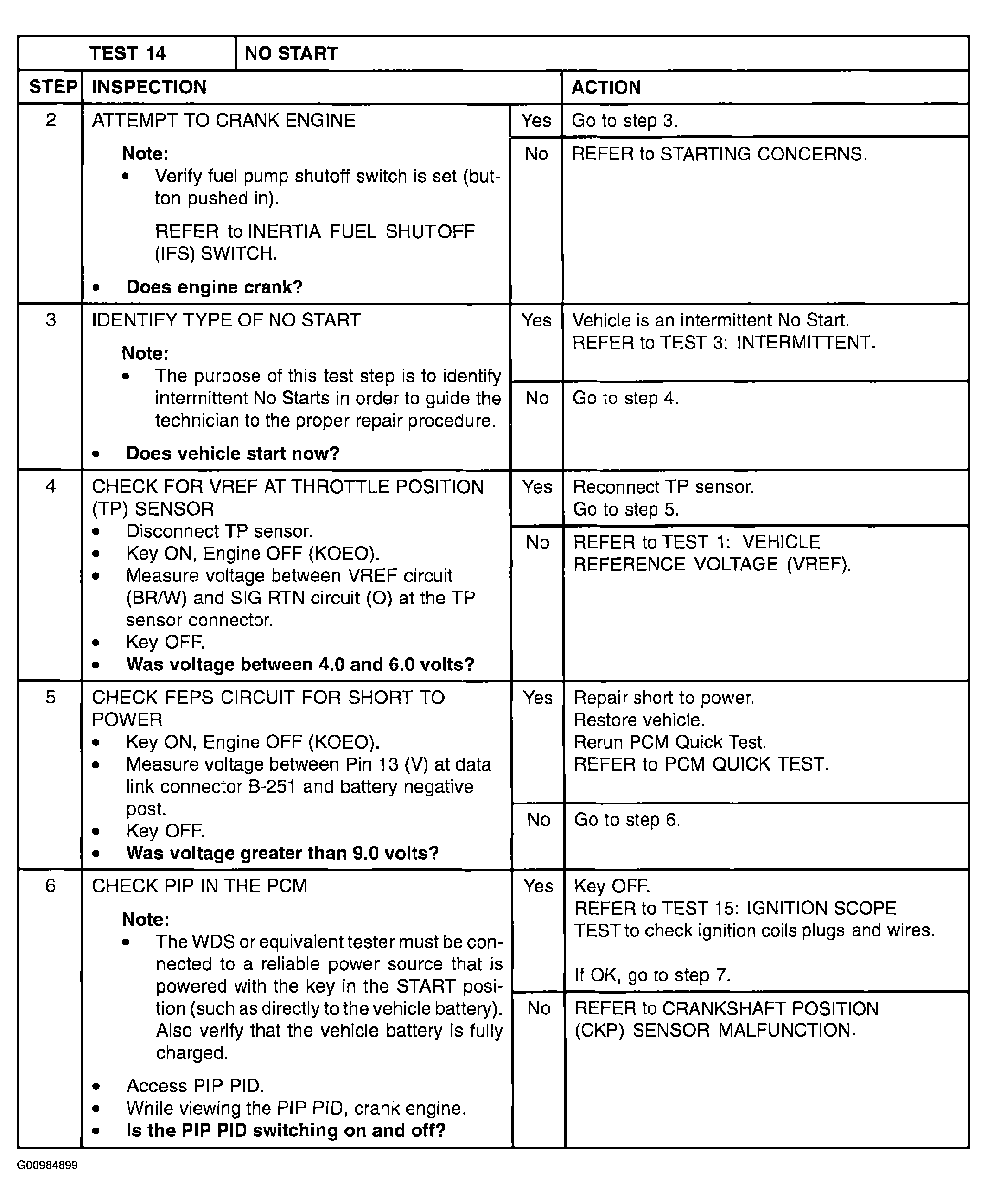

Fig 2: Test 14: No Start: Inspection (Steps 2-6)
Courtesy of MAZDA MOTORS CORP.

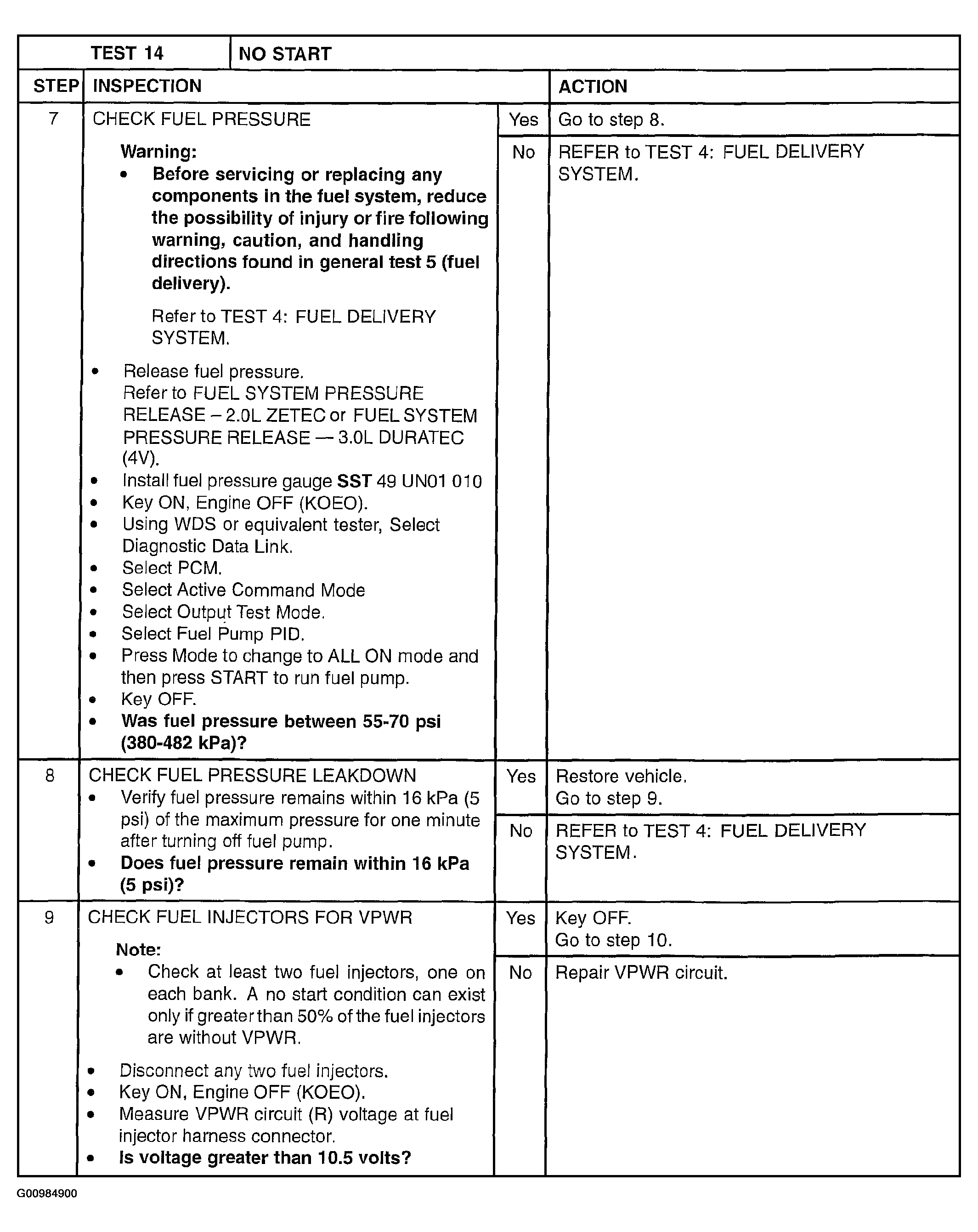

Fig 3: Test 14: No Start: Inspection (Steps 7-9)
Courtesy of MAZDA MOTORS CORP.

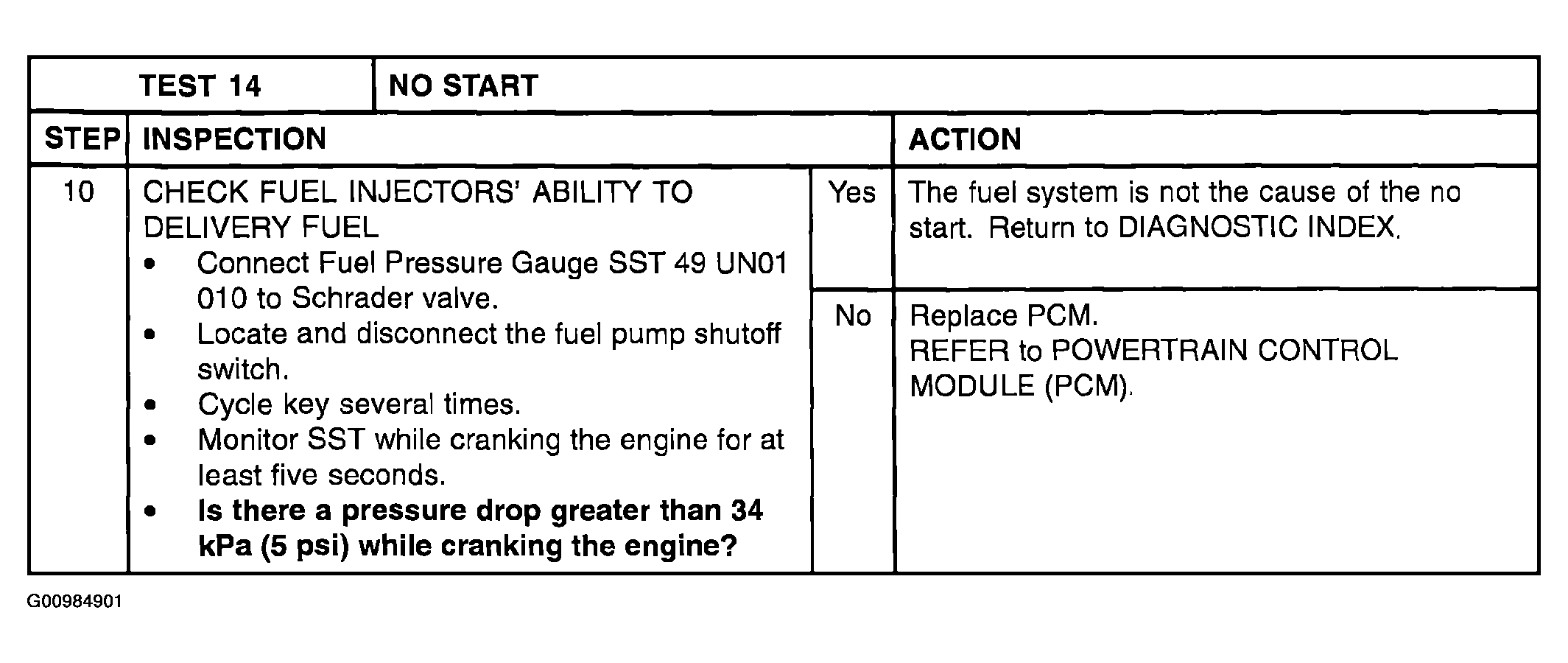

Fig 4: Test 14: No Start: Inspection (Step 10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
