How To Use This Repair Information: Symbols

There are eight symbols indicating oil, grease, fluids, sealant and SST use. These symbols show application points or use of these materials during service.

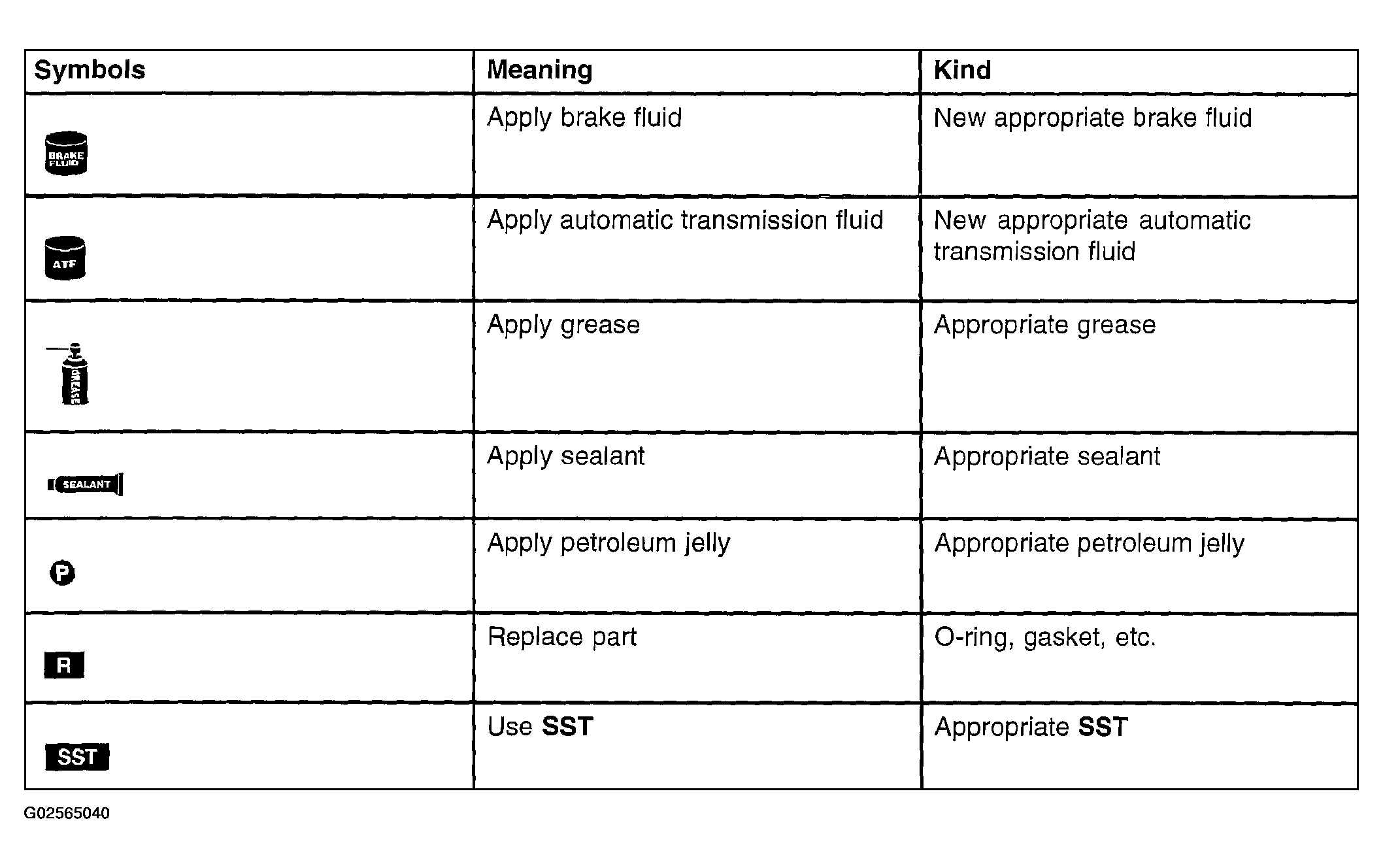

Fig 1: Identifying Commonly Used Symbols (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Commonly Used Symbols (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
