Outer Mirror Glass Assembly Note

Press area A of the mirror glass into the base to attach pin A.
Press areas B of the mirror glass into the base to attach pins B.

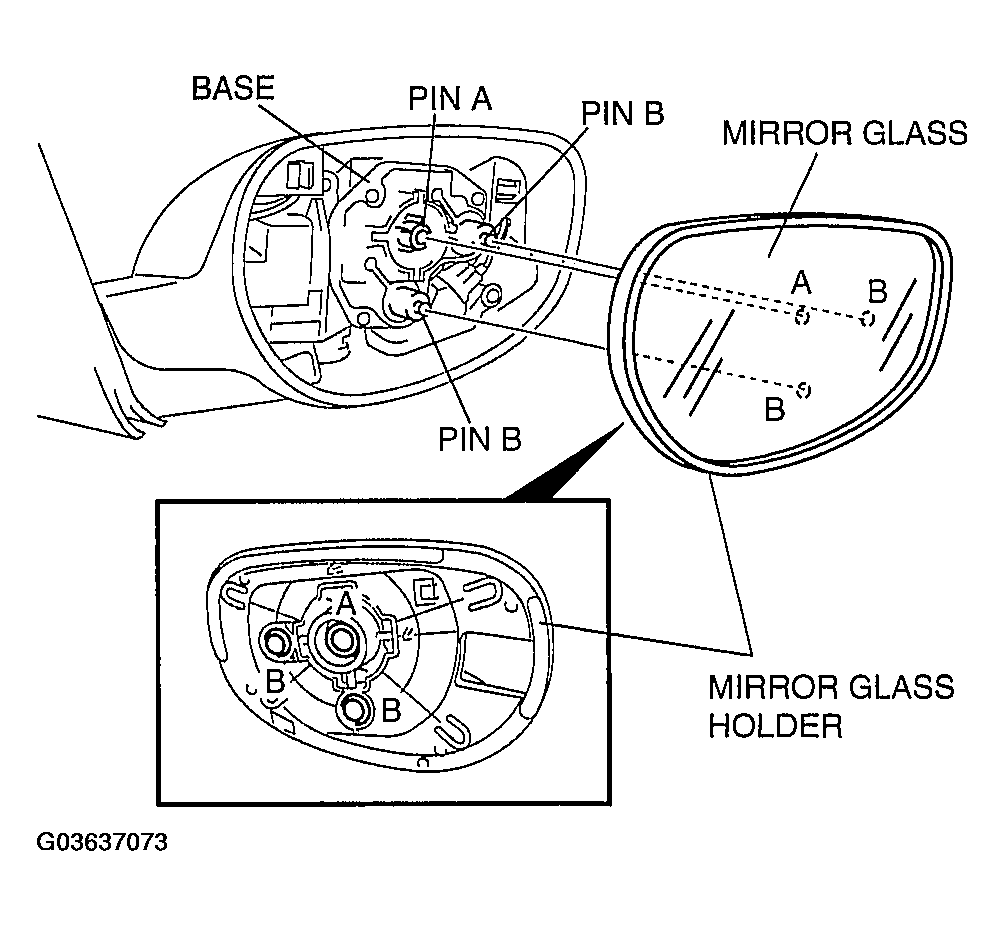

Fig 1: Attaching Mirror Glass Base To Pins A & B
Courtesy of MAZDA MOTORS CORP.
