Steering Gear And Linkage Disassembly: Notes
CAUTION:
- Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.

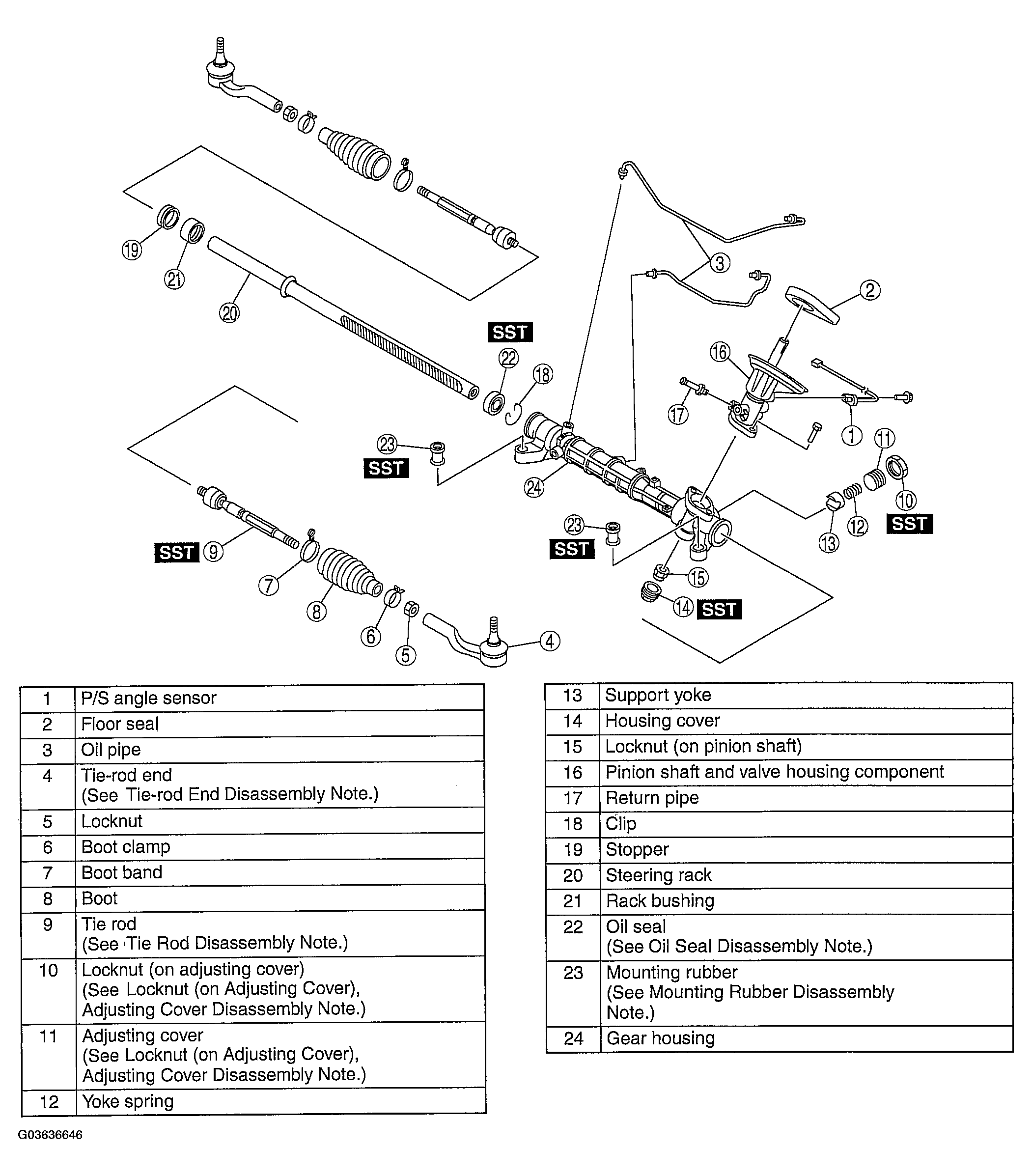

- Disassemble in the order indicated in the figure.
Courtesy of MAZDA MOTORS CORP.
