EHPAS Control Module & P/S Angle Sensor Connector End View
EHPAS Control Module & P/S Angle Sensor Connector End View

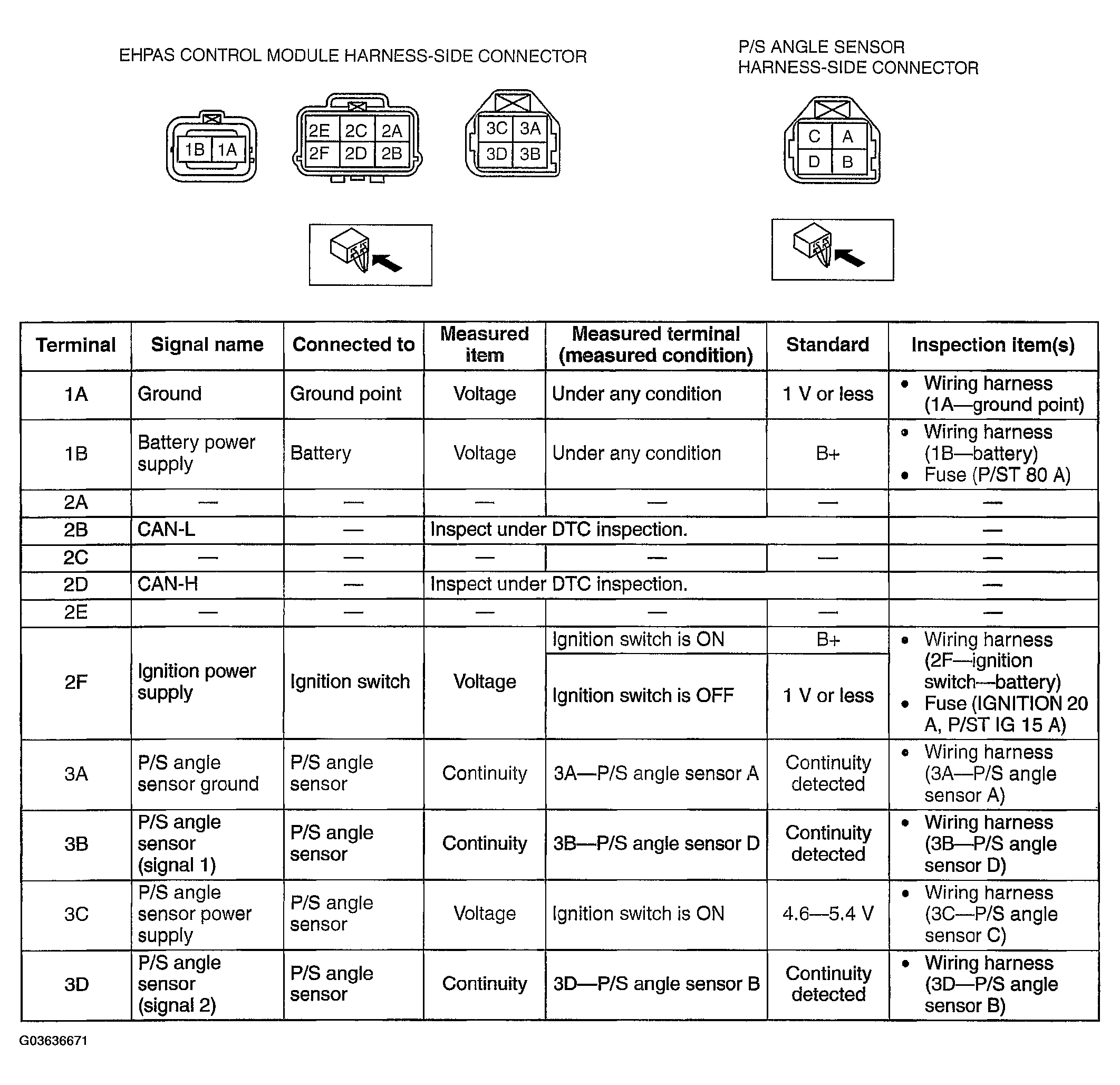

Fig 1: EHPAS Control Module & P/S Angle Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
