Security And Locks Location Index

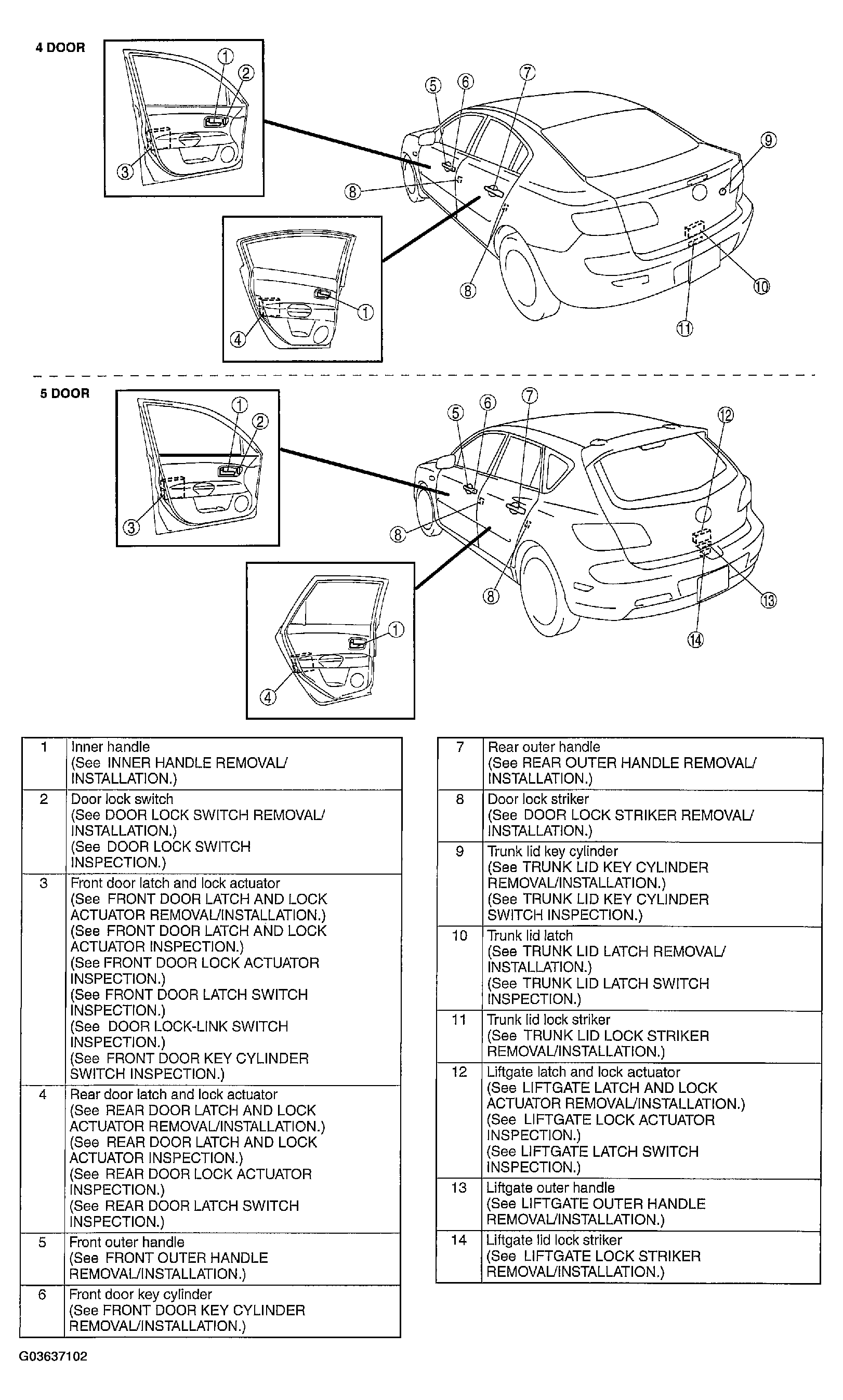

Fig 1: Security And Locks Location Index (1 Of 2)
G03637102Courtesy of MAZDA MOTORS CORP.

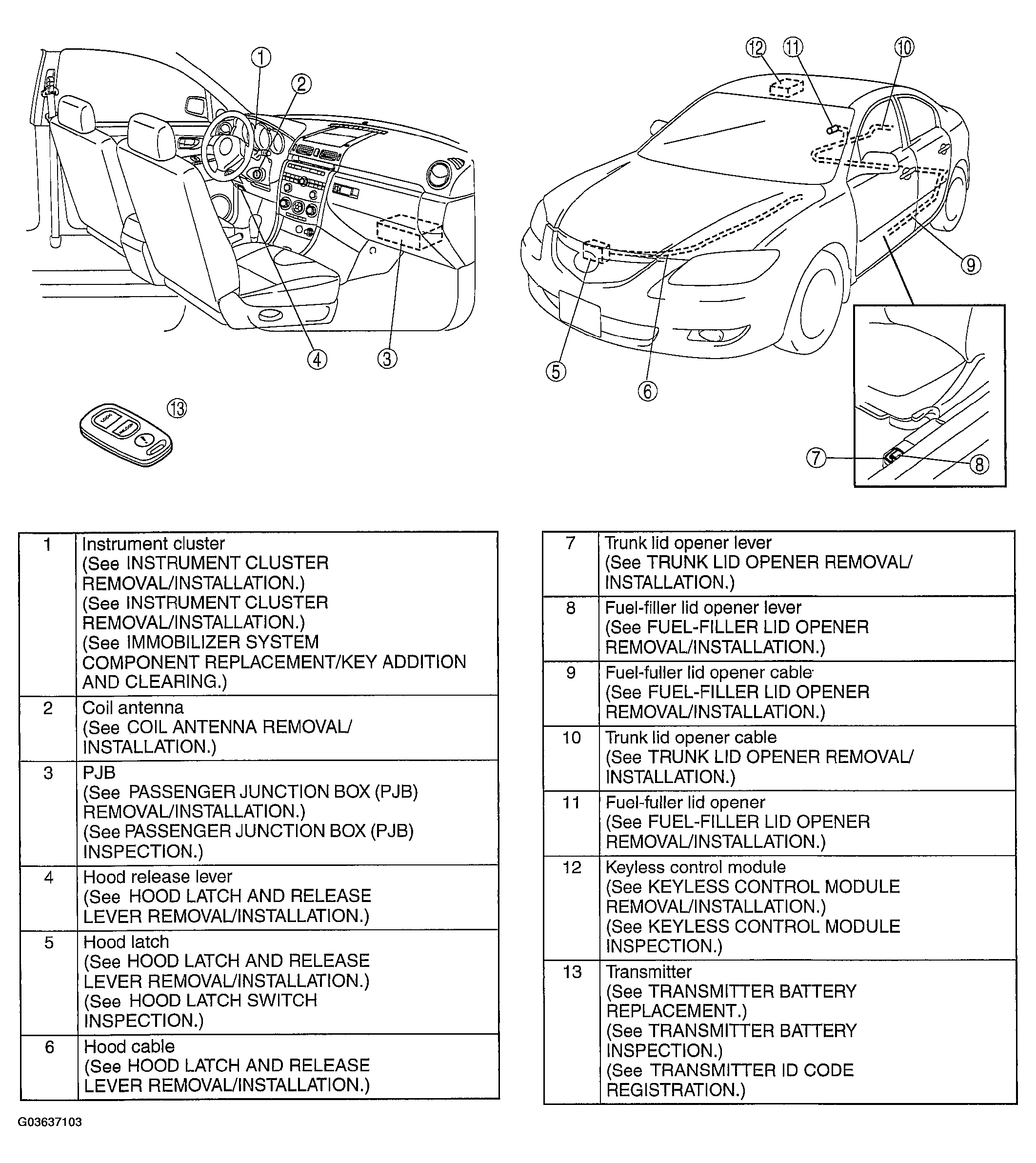

Fig 2: Security And Locks Location Index (2 Of 2)
G03637103Courtesy of MAZDA MOTORS CORP.
