Connector Installation Note

  1. After connecting the connector, verify that the connector cover is completely pushed in.

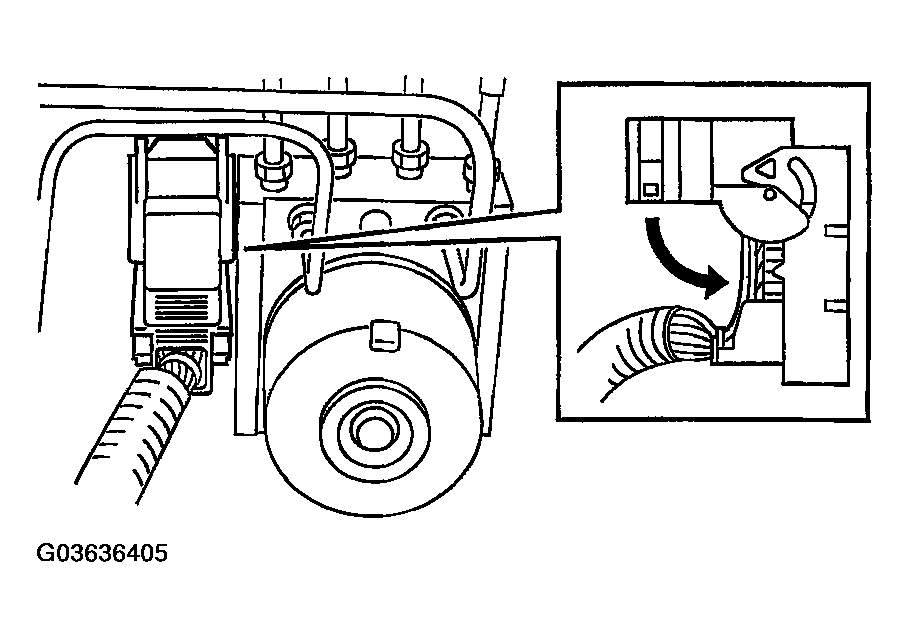

    Fig 1: Connecting ABS HU/CM Connector
    G03636405Courtesy of MAZDA MOTORS CORP.
