Input/turbine speed sensor (+) signal

PCM terminals

• 1M (+)-Negative battery terminal (-)

Oscilloscope setting

• 500 mV/DIV (Y), 1 ms/DIV (X), DC range

Vehicle condition

• Idle after warm-up

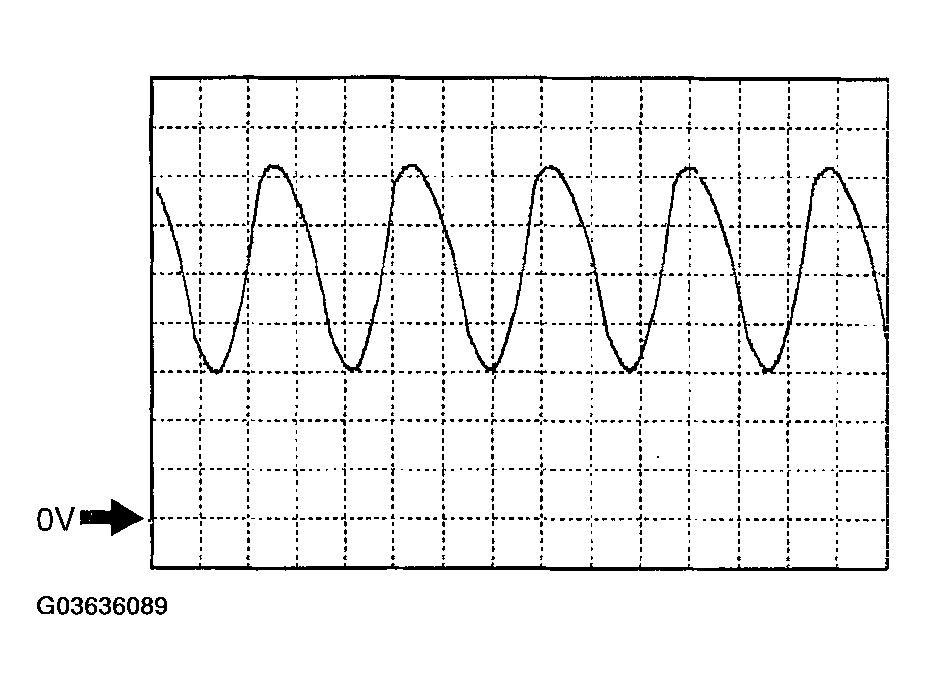

Fig 1: Input/Turbine Speed Sensor (+) Signal Pattern

Courtesy of MAZDA MOTORS CORP.
