Part-side connector

The viewing direction of part-side connectors is from the terminal side.

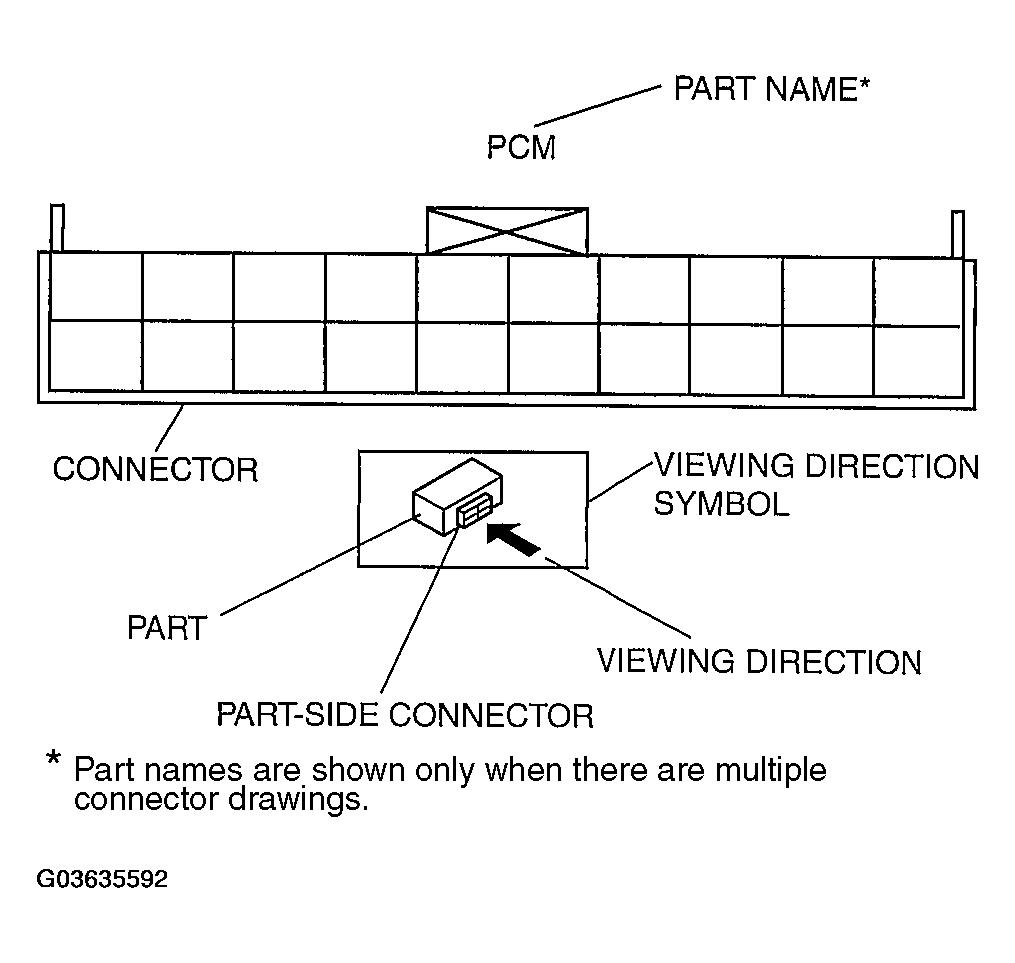

Fig 1: Identifying Part-Side Connector
G03635592Courtesy of MAZDA MOTORS CORP.
