Steering Gear And Linkage Assembly: Notes

CAUTION:

Place copper plates, rag, or similar material in a vise, when securing the mounting bracket portion of the steering gear.

Assemble in the order indicated in the figure.

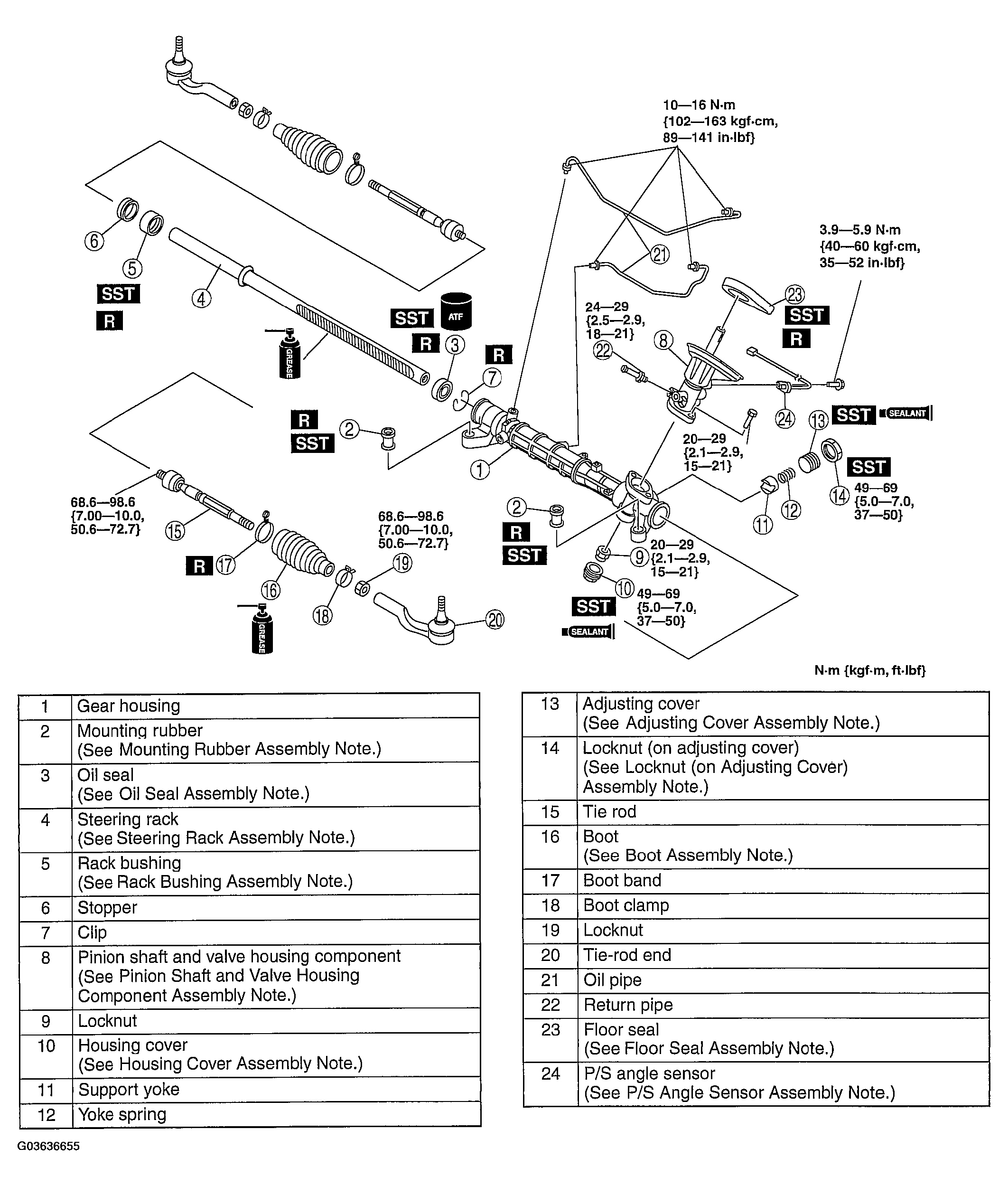

Fig 1: Steering Gear & Linkage Assembly & Tightening Specifications
Courtesy of MAZDA MOTORS CORP.
