Shift Mechanism Removal/Installation: Notes
- Remove the following parts:
- battery and battery tray
(See BATTERY REMOVAL/INSTALLATION .)
- Center console
(See CONSOLE REMOVAL/INSTALLATION .)
- Heat insulator (Front)
- battery and battery tray

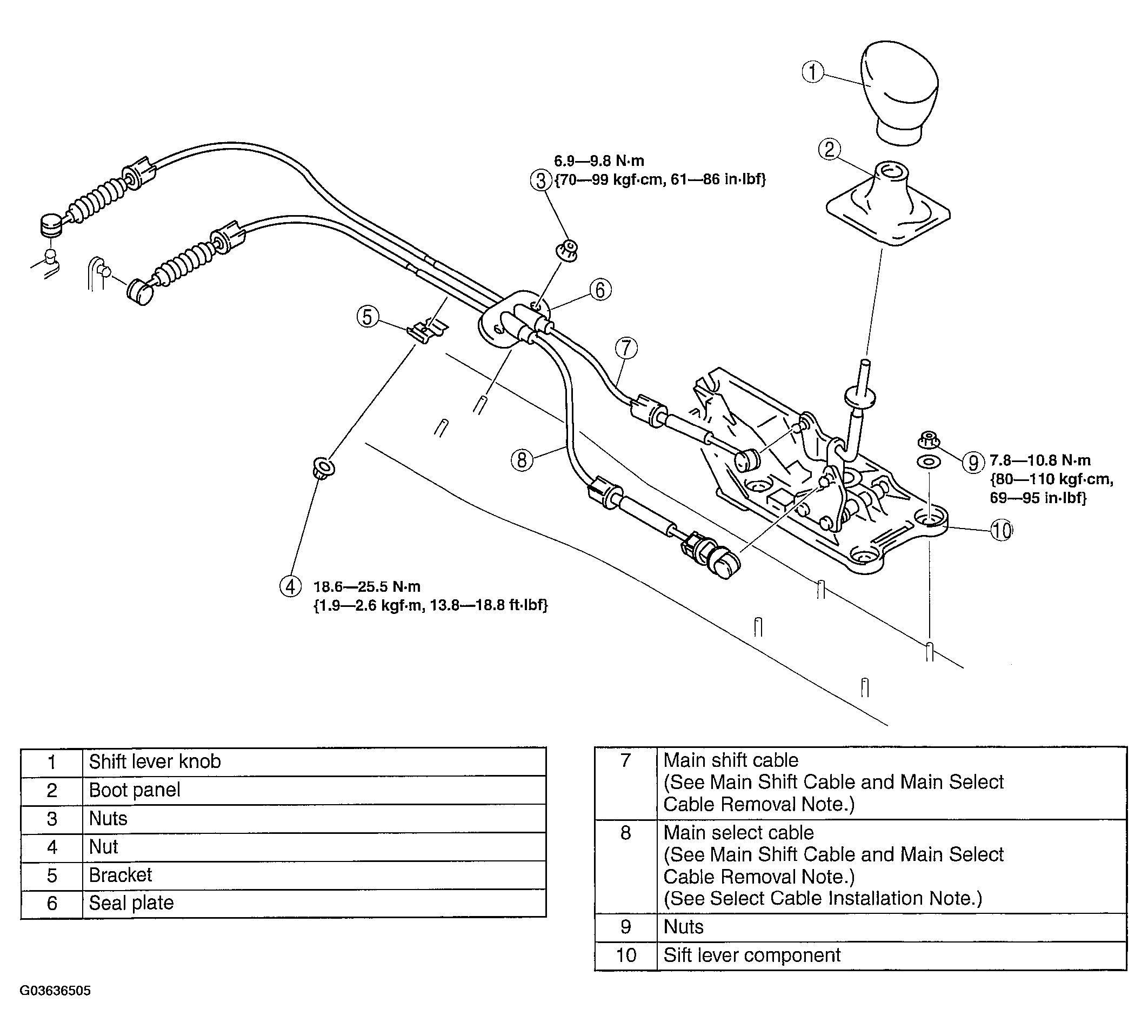

- Remove in the order indicated in the figure.
- Install in the reverse order of removal.
- After installation, verify that the shift lever can be shifted smoothly into each position.
