Power Outer Mirror Switch Inspection

Inspect for continuity between the power outer mirror switch terminals.
- If not as specified, replace the power outer mirror switch.

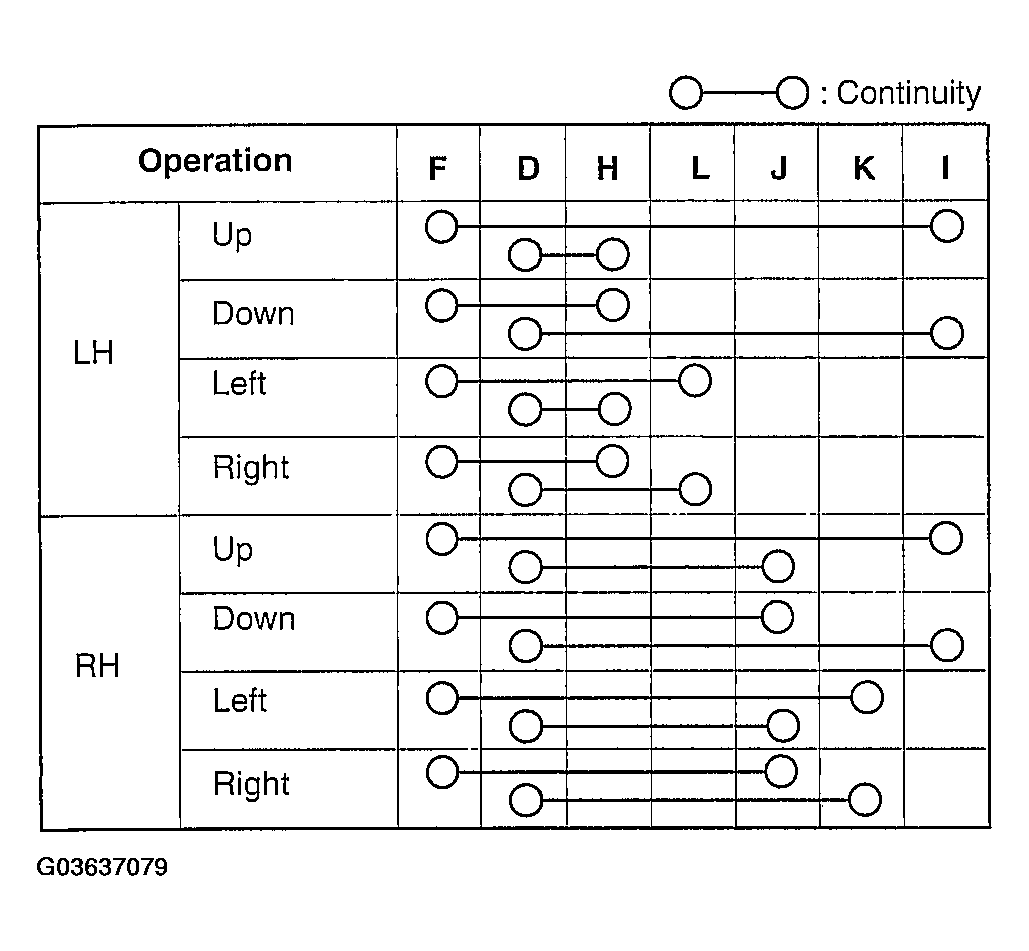

Fig 1: Power Outer Mirror Switch Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

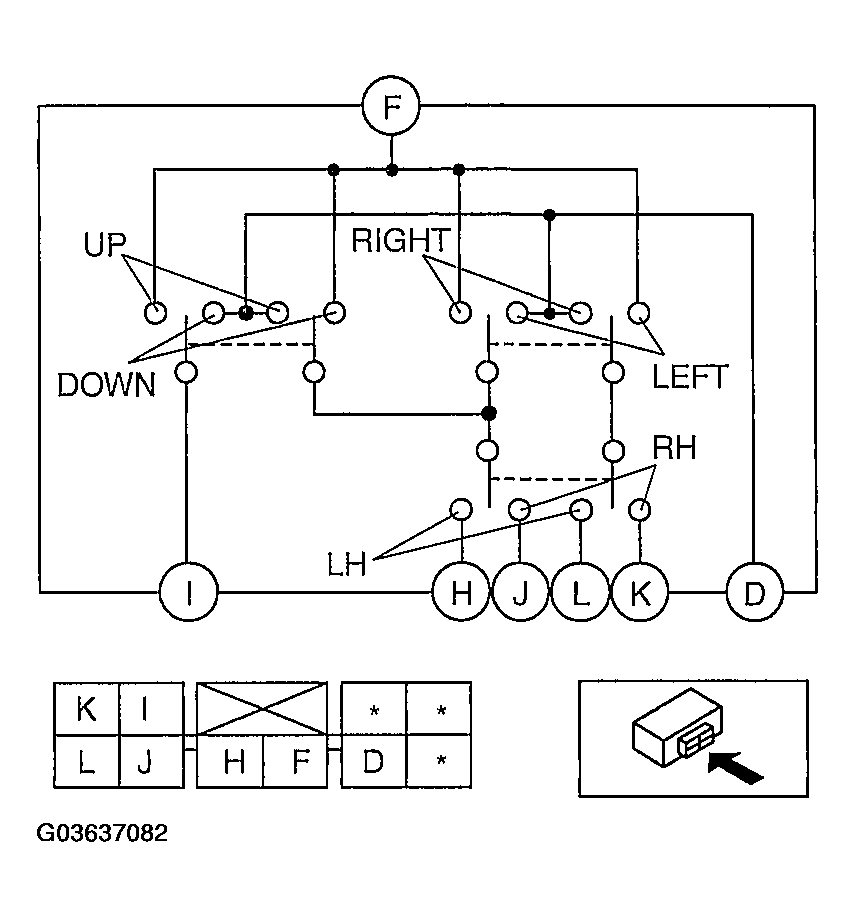

Fig 2: Identifying Power Outer Mirror Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
