Ignition Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

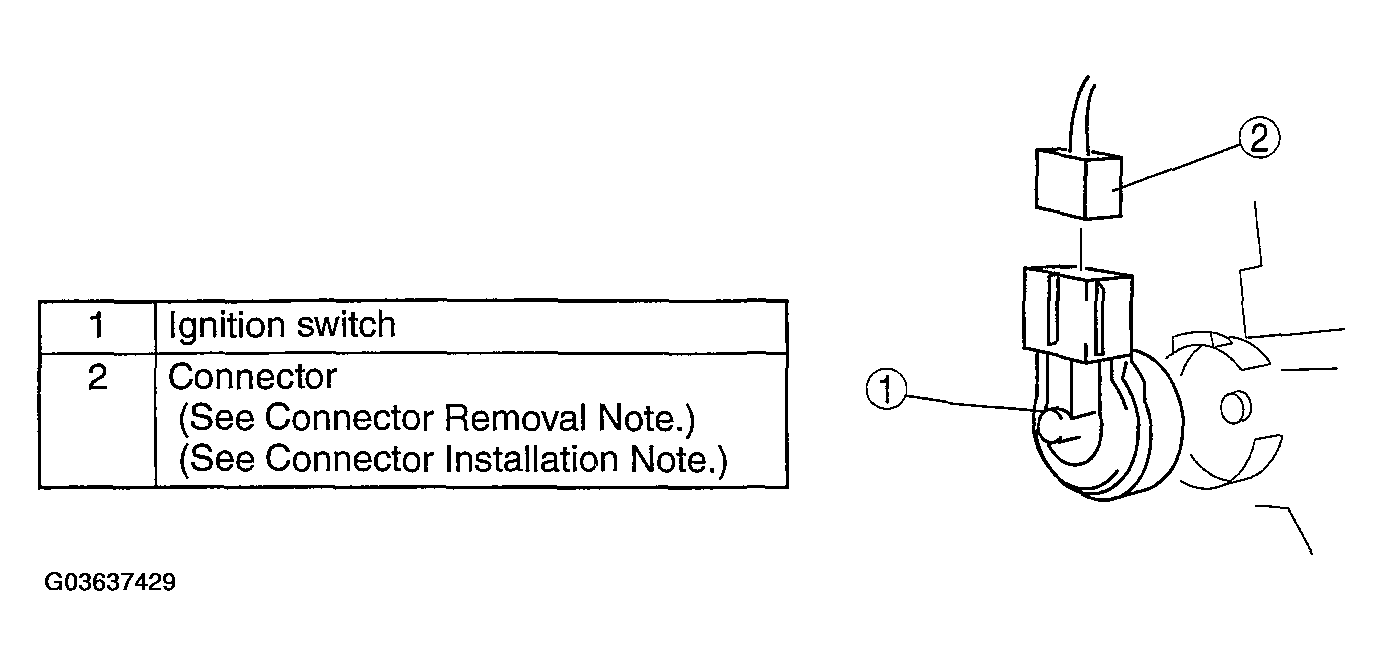

    5. Fig 1: Ignition Switch Removal/Installation
    G03637429Courtesy of MAZDA MOTORS CORP.
