Abs HU/Cm Inspection

  1. Disconnect the ABS HU/CM connector.
  2. Connect the negative battery cable.
  3. Attach the tester lead to the ABS HU/CM wiring harness-side connector, then inspect the voltage, continuity, or resistance according to the standard (reference) on the table.

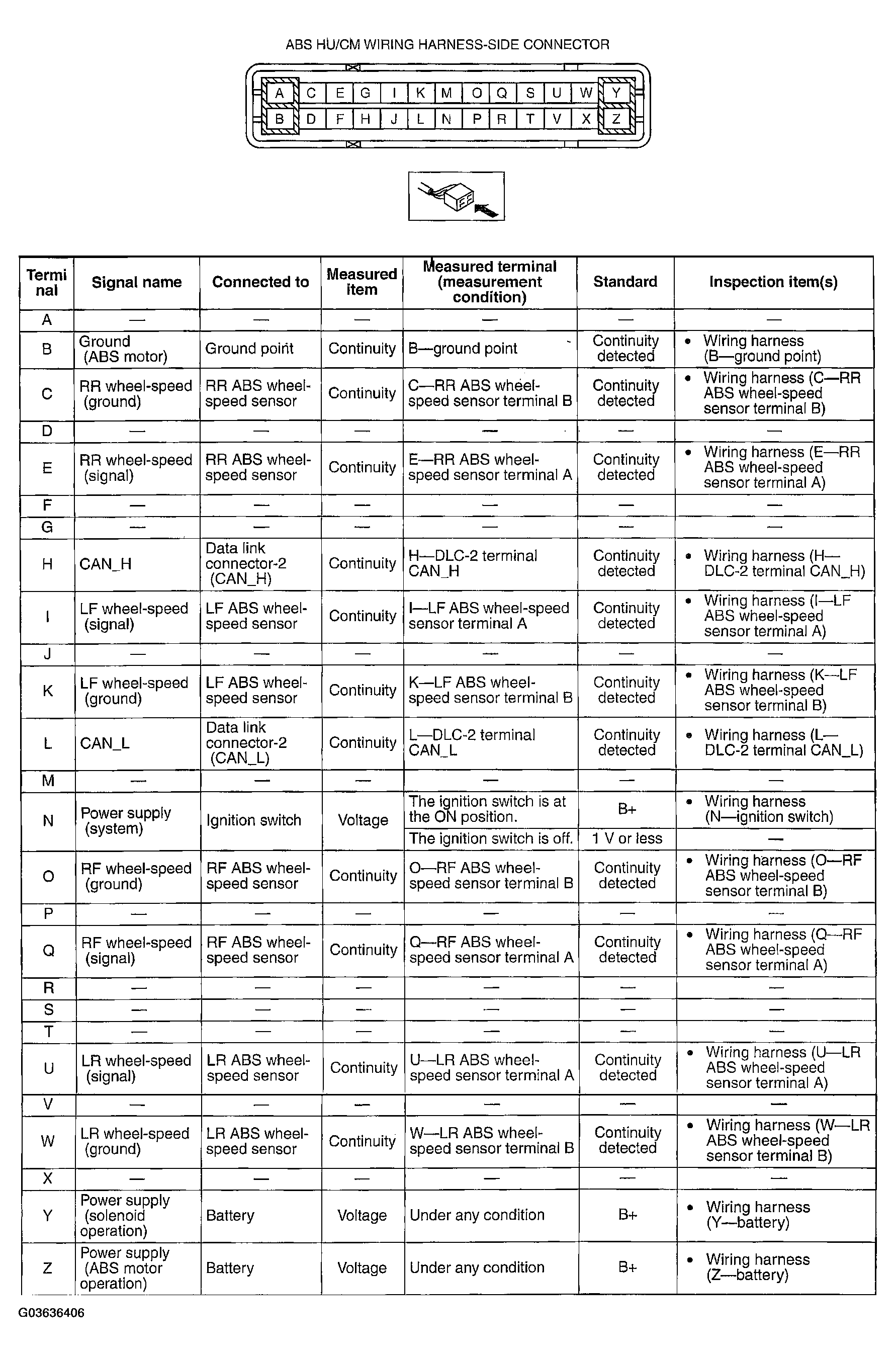

    4. Fig 1: ABS HU/CM Terminal Voltage Reference Table
    G03636406Courtesy of MAZDA MOTORS CORP.
