Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the mudguard.
  2. Remove in the order indicated in the figure.
  3. Install in the reverse order of removal.

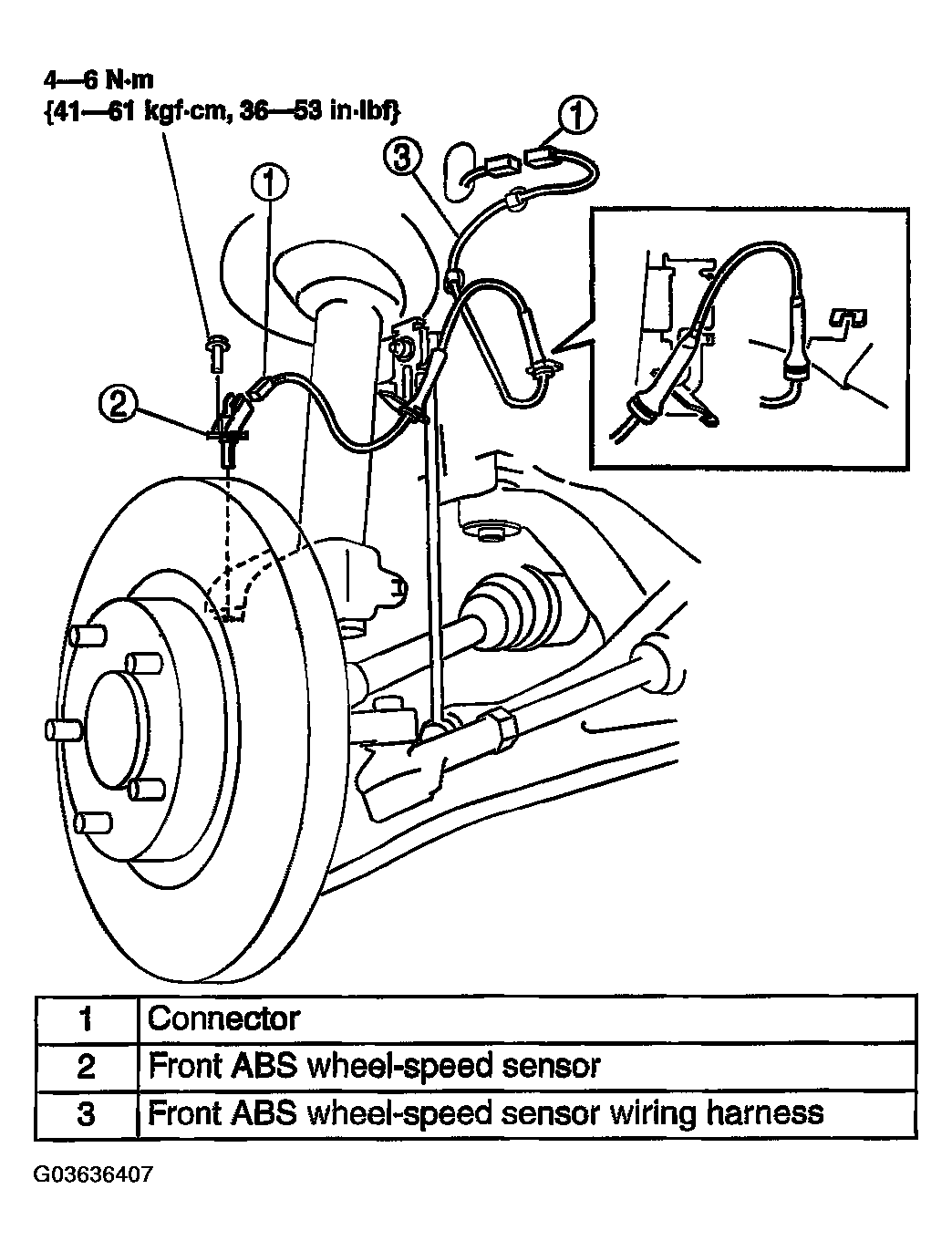

    4. Fig 1: Front ABS Wheel-Speed Sensor Removal/Installation & Tightening Specifications
    G03636407Courtesy of MAZDA MOTORS CORP.
