Generator Inner Parts: Rectifier

Inspect for continuity of the diodes using an ohmmeter.
- If not as specified, replace the rectifier.
Specification

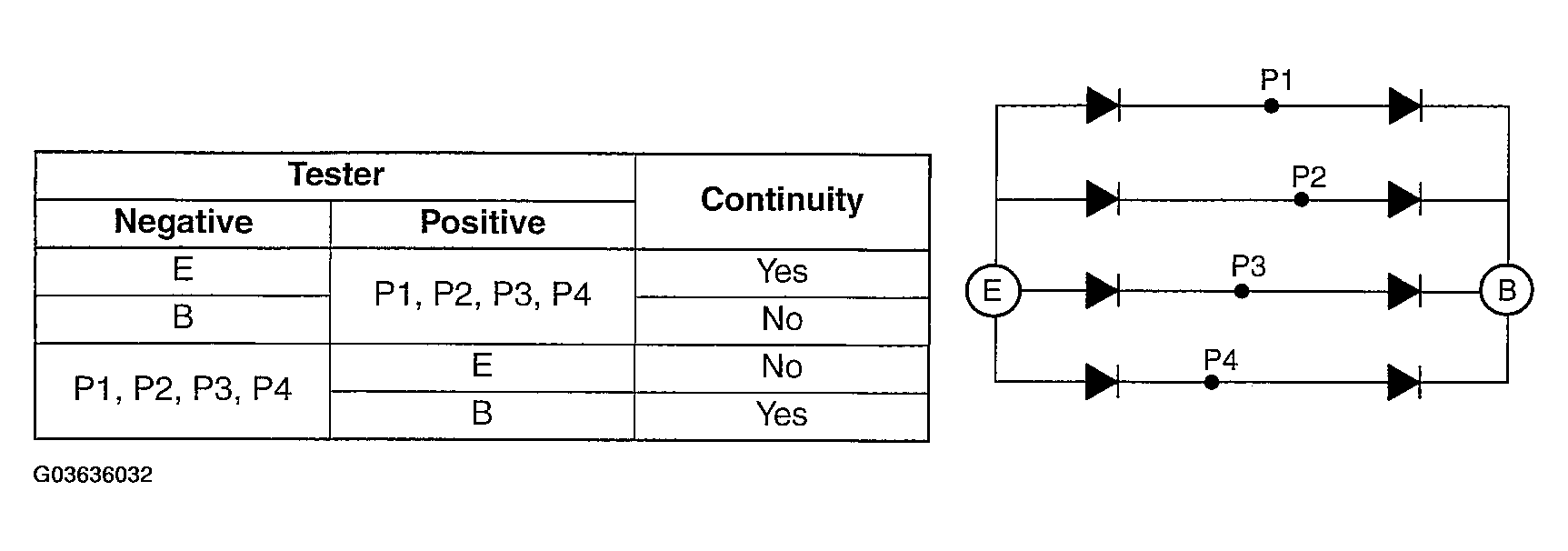

Fig 1: Identifying Rectifier Specifications
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Rectifier Connector Terminals
Courtesy of MAZDA MOTORS CORP.
