Control System Diagram
›
Except for California Emission Regulation Applicable Model
Except for California Emission Regulation Applicable Model

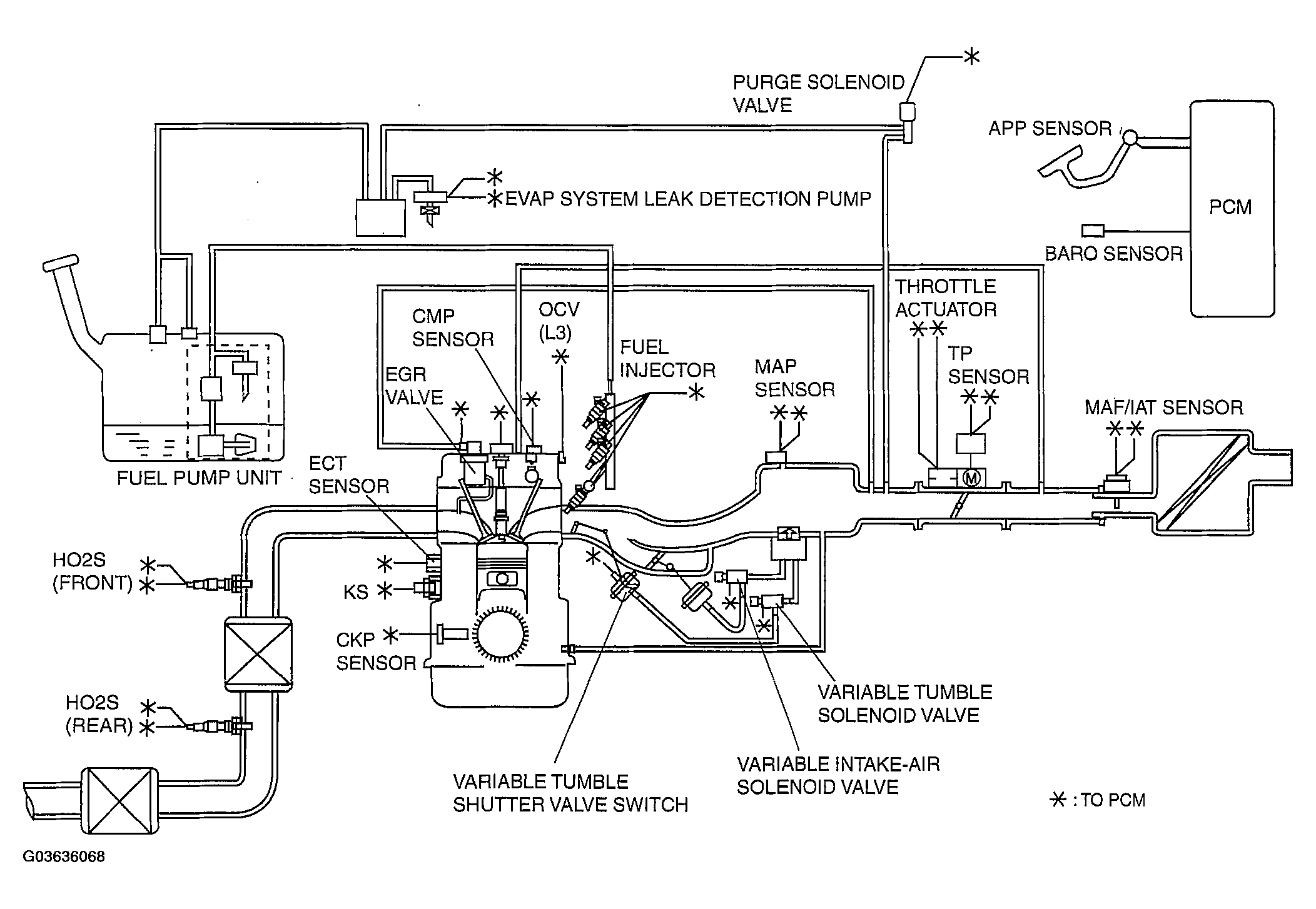

Fig 1: Control System Diagram - Except California
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
