Shift solenoid A signal

PCM terminals

• 1B (+)-Negative battery terminal (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• 4GR

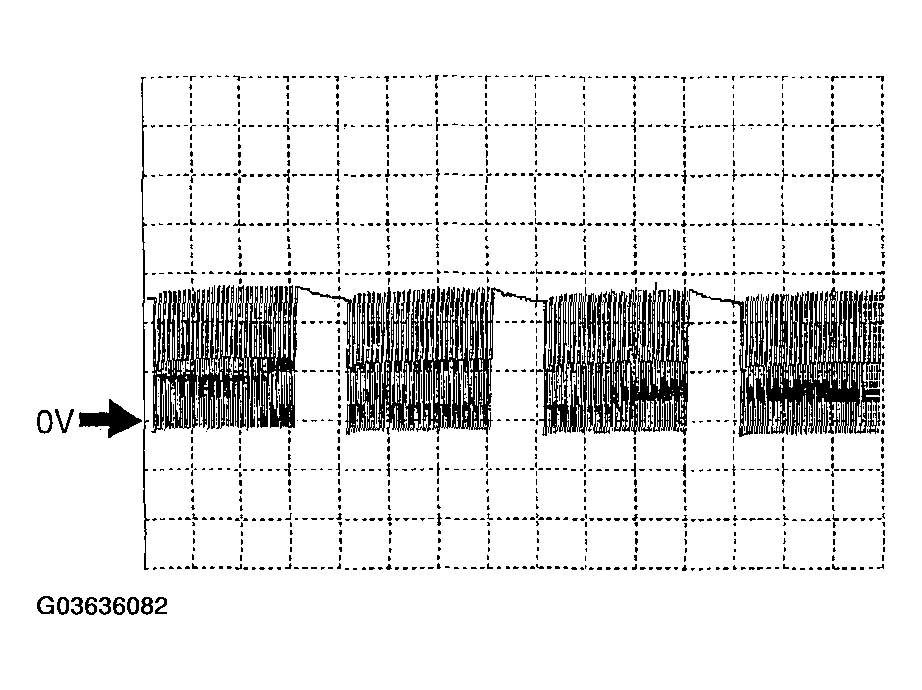

Fig 1: Shift Solenoid A Signal Pattern

Courtesy of MAZDA MOTORS CORP.
