Shift solenoid B signal

PCM terminals

• 1C (+)-Negative battery terminal (-)

Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

• 1GR

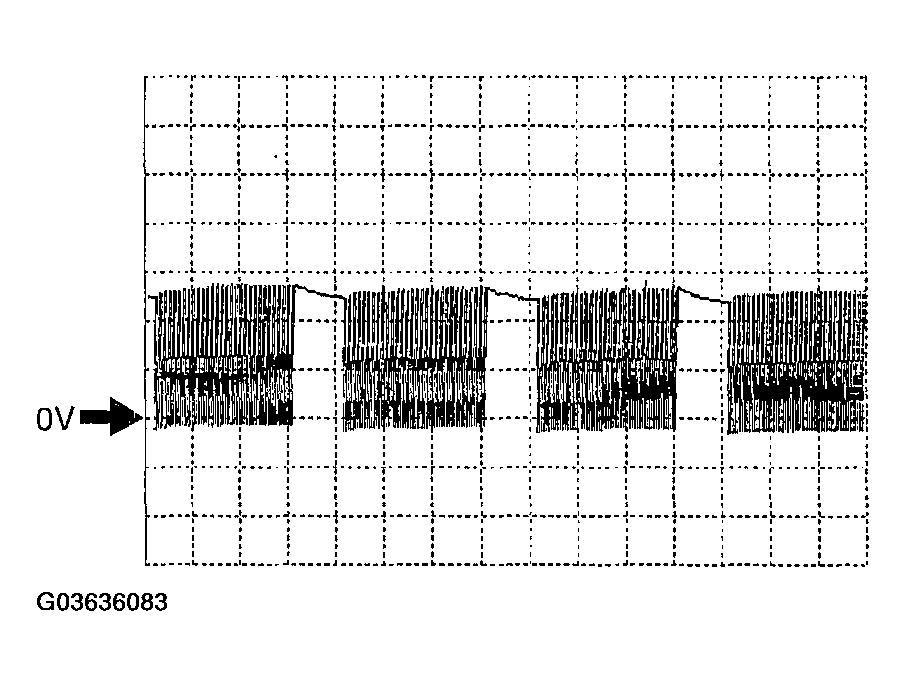

Fig 1: Shift Solenoid B Signal Pattern

Courtesy of MAZDA MOTORS CORP.
