Fuel System Flow Diagram
Fuel System Flow Diagram

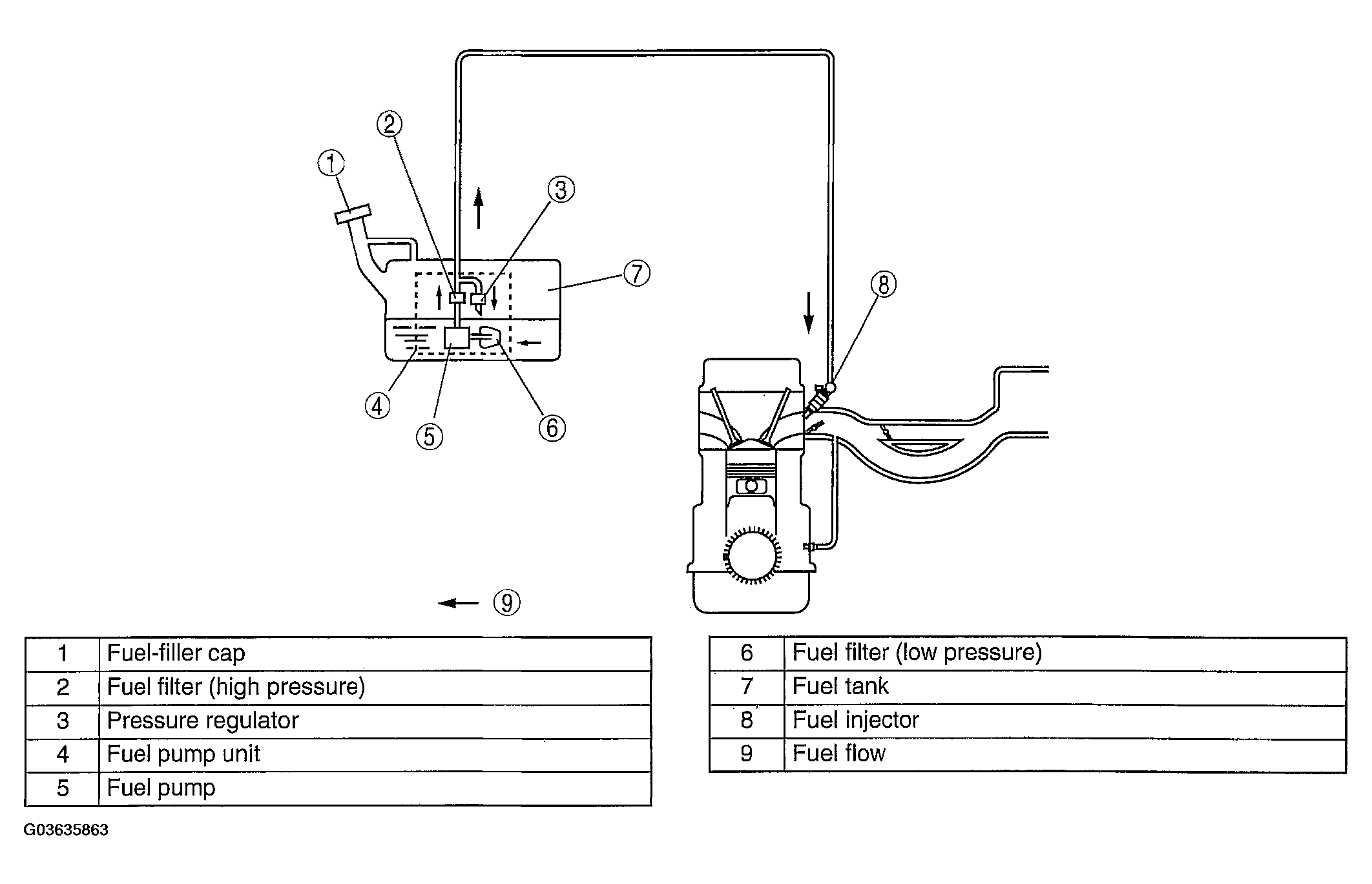

Fig 1: Fuel System Flow Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
